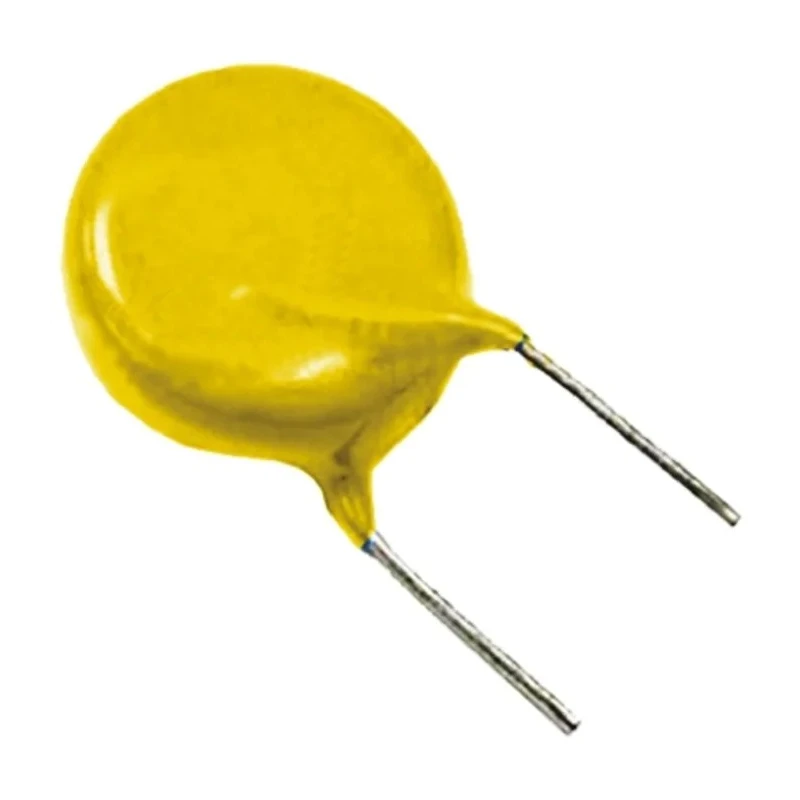

Vishay Single Layer Ceramic Capacitor 220 pF 500V AC ±10 % Y5S Dielectric Through Hole Radial Lead VY1221K31Y5SQ6TV0

Vishay VY1221K31Y5SQ6TV0 single layer ceramic capacitor provides a capacitance of 220 pF with a voltage rating of 500V AC and a tolerance of ±10 %. This capacitor employs a Y5S dielectric and is designed for through hole mounting with radial leads. Constructed as a silver-plated ceramic disc, it features tinned copper clad steel leads with a diameter of 0.6 mm, providing durable and reliable connections.

Encapsulated in flame retardant epoxy resin compliant with UL 94 V-0 standards, this component supports high reliability under harsh conditions and a maximum operating temperature of 125 °C. The capacitor complies with IEC 60384-14 4th edition and other international safety standards, making it suitable for critical safety circuits including X1 and Y1 applications according to IEC 60384-14.4.

This capacitor is commonly used for across-the-line filtering, line by-pass, and antenna coupling in industrial, commercial, and laboratory electronic assemblies. Its compact disc package with dimensions of 8 mm diameter, 5 mm width, and 11 mm height allow straightforward integration into PCB layouts. The radial lead configuration ensures easy insertion and mechanical stability.

Precise capacitance of 220 pF for demanding electronic circuitry. 500V AC voltage rating supports high-voltage applications. Y5S dielectric provides stable electrical characteristics with 125 °C max operating temperature.

Through hole radial lead mount for robust mechanical fixation. Silver-plated ceramic disc and tinned copper clad steel leads for enhanced conductivity and corrosion resistance. Flame retardant epoxy encapsulation meeting UL 94 V-0 flame safety standards.

Compliant with IEC 60384-14, UL 60384-14, CSA, and DIN EN safety standards. Ideal for AC line applications, filtering, bypassing, and antenna signal conditioning. Small form factor fits constrained PCB designs. Reliable and durable for industrial, manufacturing, and laboratory use.

This Vishay single layer ceramic capacitor is a trusted component for electronics manufacturing requiring certified safety compliance and stable performance under varying temperatures and voltages. Browse the Electronics Components category on EnvMart to find additional capacitors and complementary components for your electronic designs.
