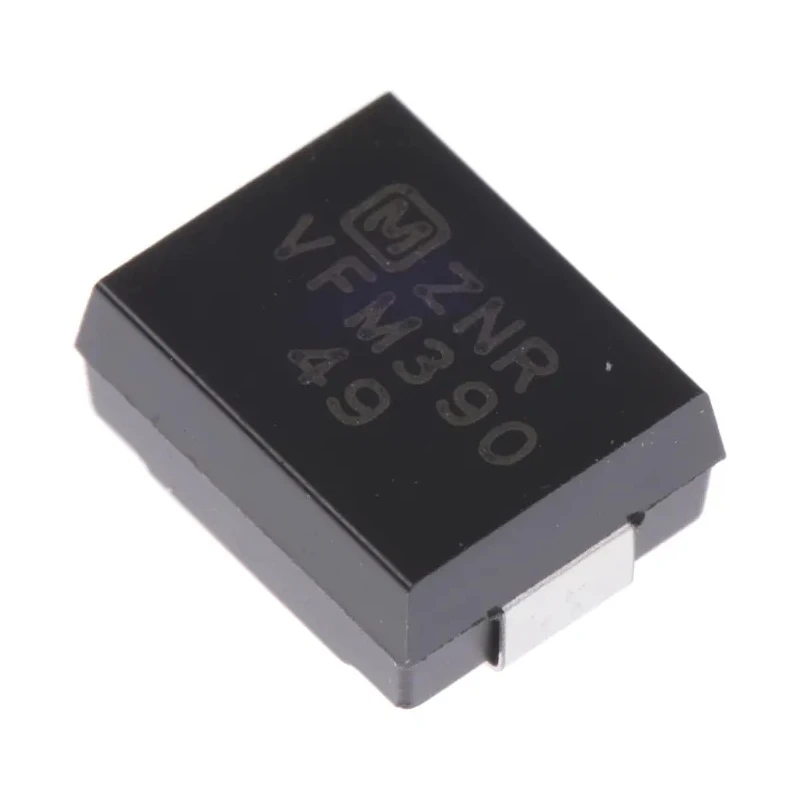

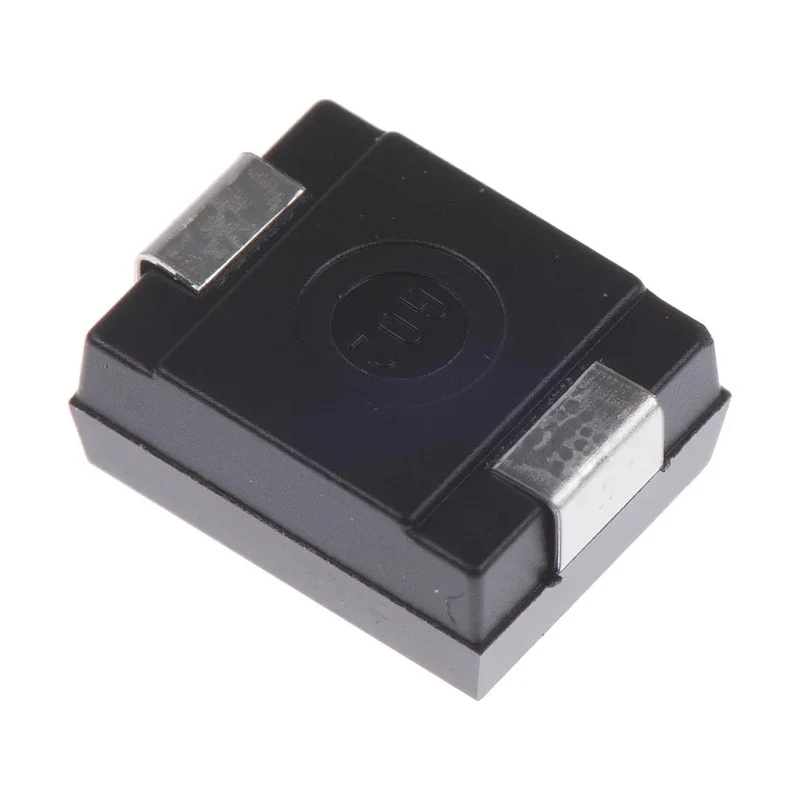

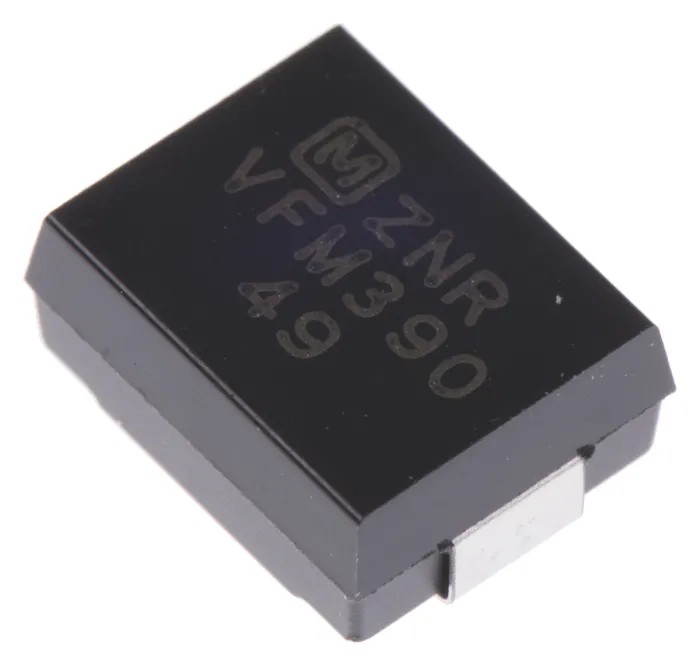

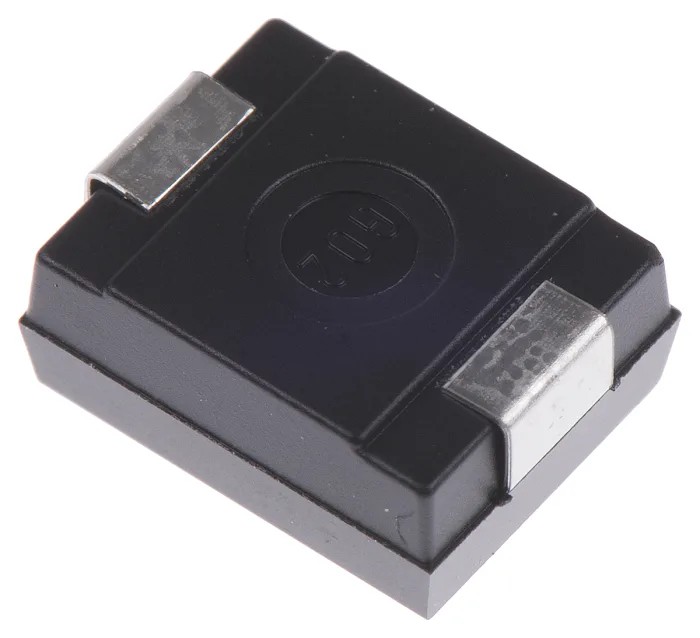

Panasonic VF Surge Absorber 2.5 A Clamping Voltage 77 V, Maximum AC 25 V, DC 31 V ERZVF2M390
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 3.2mm |
| Length | 8mm |
| Model | ERZVF2M390 |
| Depth | 6mm |
| Series | VF |
| Energy Rating | 1.5J |
| Maximum Operating Temperature | 85°C |
| Maximum dc Voltage | 31V dc |
| Standards/Approvals | CQC, RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 721-0068Brand: PanasonicManufacturers Part No.: ERZVF2M390 |
| Maximum AC Voltage | 25V ac |
| Clamping Voltage VC | 77V |
| Clamping Current | 2.5A |
| Maximum Surge Current | 125A |
Key Features
- Features low clamping voltage and high surge current capability.
- Compact surface mount design suitable for flow and reflow soldering.
- Provides protection for consumer and industrial equipment including communication modules.
- Constructed with metal oxide varistor technology in VF series.
- Operates reliably up to 85°C maximum operating temperature.
- Conforms to CQC and RoHS standards.
- Energy rating of 1.5 Joules for surge absorption.
- Measures 8 mm length, 3.2 mm height, and 6 mm depth.
Product Description
Panasonic ERZVF2M390 VF Surge Absorber is a metal oxide varistor designed as a compact surface mount device for effective surge protection. With a clamping voltage of 77 V and a clamping current of 2.5 A, this varistor is ideal for safeguarding electronic equipment against voltage spikes.
Its VF series construction allows it to handle a maximum surge current of 125 A and offers protection by replacing the function of back-to-back zener diodes and parallel capacitors, resulting in cost and space savings on printed circuit boards.
This surge absorber is engineered for use in flow and reflow soldering processes, making it compatible with modern manufacturing techniques. It operates efficiently at up to 85°C maximum operating temperature, making it suitable for various industrial and consumer equipment applications.
Applications include protection of communication modules such as terminal adapters, modems, and xDSL technology, as well as relays and other switching circuits sensitive to transient surges.
The component measures 8 mm in length, 3.2 mm in height, and 6 mm in depth, optimized for board space efficiency. It meets the quality and safety standards of CQC and RoHS, excluding automotive standards.
Features low Clamping voltage and high surge current capacity. Compact surface mount design for efficient PCB layout. Suitable for communication and industrial protection applications. Complies with relevant certification standards ensuring reliability.
Offers energy absorption of 1.5 Joules for transient surges. Manufactured in Japan with strict quality control. Designed for flow/reflow soldering manufacturing processes. Dimensions: 8 mm x 3.2 mm x 6 mm for board space saving.
Explore EnvMart for a wide range of surge protection components and Panasonic electronic parts to meet your precise industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The clamping voltage of this model is 77 V.
It can handle a maximum surge current of 125 A.
This surge absorber measures 8 mm in length, 3.2 mm in height, and 6 mm in depth.
The maximum operating temperature is 85°C.
It has an energy rating of 1.5 Joules for surge absorption.
Yes, it is designed for compatibility with flow and reflow soldering processes.
It conforms to CQC and RoHS standards.
The maximum DC voltage is 31 V.
It is used for protecting communication modules, relays, and other sensitive switching circuits from transient surges.
The clamping current rating is 2.5 A.
It is manufactured in Japan.
This model belongs to the VF series of surge absorbers.
