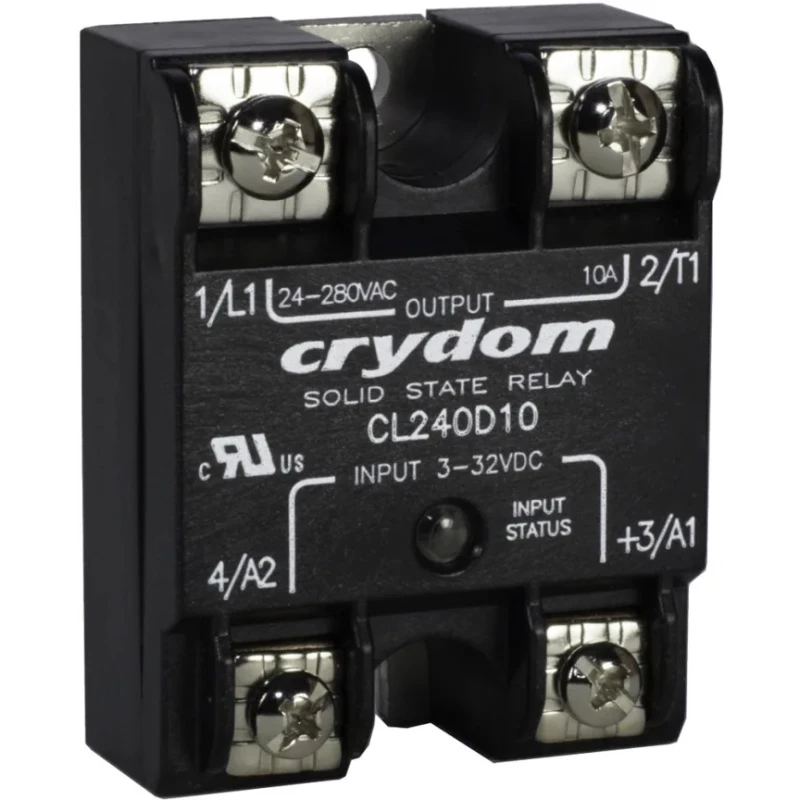

Crydom CL Series Solid State Relay, 10 A Load, Panel Mount, 280 Vrms Load, 32V dc Control CL240D10
Specifications
| Country of Origin | India |
|---|---|
| Brand | Crydom |
| Height | 57.2mm |
| Length | 44.5mm |
| Model | CL240D10 |
| IP Rating | IP00, IP20 |
| Width | 30.9mm |
| Mount Type | Panel |
| Output type | Triac |
| Series | CL |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | SPST-NO |
| Capacitance | 8pF |
| Minimum Operating Temperature | -30°C |
| Terminal type | Screw |
| Switching Function | Zero Voltage Turn-On Switching |
| Maximum Load Current | 10A |
| Standards/Approvals | CE, cRL US, RoHS, UL |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 720-4044Brand: CrydomManufacturers Part No.: CL240D10Distrelec Article No.: 30049159 |
| Minimum Control Voltage | 3V dc |
| Maximum Control Voltage | 32V dc |
| Off State Leakage Current | 7mArms |
Key Features
- Features zero voltage turn-on switching for reduced noise and efficient start-up.
- Compact dimensions of 44.5 x 30.9 x 57.2 mm save space in installations.
- Supports a load voltage up to 280 Vrms and control voltage up to 32 V dc.
- Constructed with a flame-retardant housing for enhanced safety.
- Designed for durability with a MTBF of over 11 million hours at 40°C.
- Wide operating temperature range from -30°C to 80°C for harsh environments.
- Equipped with screw terminal type and SPST-NO contact configuration.
- Low off state leakage current of 7 mArms ensures efficient performance.
Product Description
Crydom CL240D10 is a high-performance solid state relay designed for industrial automation and automotive repair applications. It supports a maximum load current of 10 A with a panel mount style and can handle load voltages up to 280 Vrms. The relay utilizes zero voltage turn-on switching, which reduces electrical noise and improves startup efficiency, beneficial in sensitive electronic circuits.
This model features a compact footprint with precise dimensions of 44.5 mm length, 30.9 mm width, and 57.2 mm height, making it suitable for space-constrained panel installations. Its flame-retardant housing enhances safety in the event of fire, while the aluminium baseplate offers robust protection against abrasion and corrosion, ensuring long operational life.
The relay operates efficiently in a wide temperature range from -30°C to 80°C, suitable for harsh industrial environments. It features a screw terminal type for secure electrical connections and a single-pole single-throw normally open (SPST-NO) contact configuration. The output type is Triac with a low off state leakage current of 7 mArms, supporting high reliability in switching applications. An LED status indicator provides clear visual feedback for easy monitoring.
With a mean time between failures (MTBF) of over 11.6 million hours at 40°C, this relay promises exceptional durability. It complies with several international standards including CE, cRL US, RoHS, and UL, assuring quality and safety for use in various electrical systems.
This Solid State Relay is ideal for industrial automation systems, HVAC controls, manufacturing equipment, and automotive electronics requiring reliable and low-maintenance switching components.
Features zero voltage turn-on switching for efficient operation. Compact and durable design with flame-retardant housing. Wide operating temperature range suitable for harsh environments. LED status indicator for quick operational checks.
High reliability with low leakage current and long MTBF. Discover more products in the Power Relay category on EnvMart for comprehensive automation and control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this model is 10 A.
It supports a load voltage of up to 280 Vrms.
The control voltage range for this relay is between 3 V dc and 32 V dc.
This model has dimensions of 44.5 mm in length, 30.9 mm in width, and 57.2 mm in height.
The CL240D10 features a single-pole single-throw normally open (SPST-NO) contact configuration.
It operates efficiently within a temperature range of -30°C to 80°C.
It is constructed with a flame-retardant housing for enhanced safety.
This model is designed for panel mounting.
The off state leakage current is 7 mArms, ensuring efficient performance.
It complies with CE, cRL US, RoHS, and UL standards.
The relay is equipped with screw terminals for secure electrical connections.
The MTBF for the CL240D10 is over 11 million hours at 40°C.
