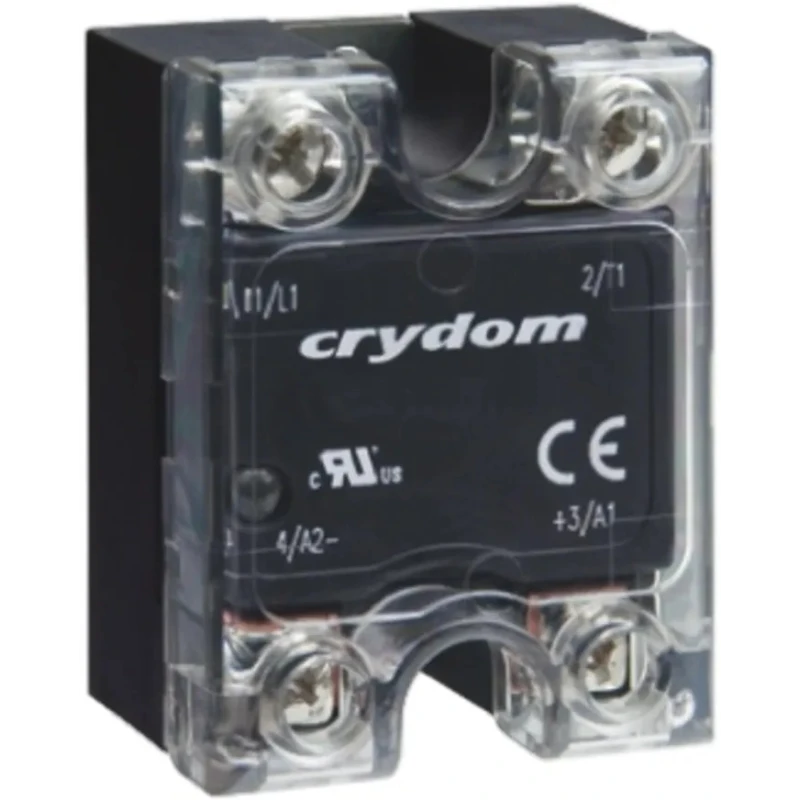

Crydom CL Series Solid State Relay, 5 A Load, Panel Mount, 280 Vrms Load, 32V dc Control CL240D05C

The Crydom CL240D05C is a high-quality Solid State Relay from the CL Series, ideal for industrial and automation applications requiring a 5 A load capacity at 280 Vrms. This panel-mount relay features a zero voltage turn-on switching function that minimizes electrical noise and enhances switching reliability. It supports AC and DC control voltage with a minimum of 3V dc and maximum of 32V dc, enabling versatile control scenarios.

Equipped with screw terminals and a SPST-NO contact configuration, this relay ensures secure and straightforward wiring. Its compact form factor with dimensions of 58.2 mm height, 44.5 mm length, and 30.9 mm width fits neatly into control panels, contributing to efficient space management.

Built to operate within a temperature range of -30°C to 80°C and rated IP20 and IP00 for protection, it withstands diverse industrial environments. The relay has an off-state leakage current of 7 mArms and a capacitance of 8 pF, supporting stable operation and performance.

Certified with UL, RoHS, cRL US, and CE standards, the CL240D05C meets stringent safety and environmental compliance requirements. This relay is suitable for applications in industrial automation, HVAC systems, manufacturing equipment, and electrical control panels where compact, reliable, and low-noise switching is required.

Its triac output type provides efficient AC load switching, making it an excellent choice for engineers designing control systems requiring silent and maintenance-free operation. As part of the Crydom CL Series, this relay combines durability and performance consistency essential for demanding electrical and industrial tasks.

Supports maximum load current of 5 A for reliable switching. Panel mount type ensures secure installation in control panels. Operating voltage range between 24 Vrms and 280 Vrms AC load. Control voltage ranges from 3V dc minimum to 32V dc maximum.

Equipped with screw terminal type for easy wiring connection. Zero voltage turn-on switching function for reduced electrical noise. Triac output type suitable for AC load control applications. Operating temperature ranges from -30°C to 80°C for diverse environments.

Compact dimensions: Height 58.2 mm, Length 44.5 mm, Width 30.9 mm. Rated with IP20 and IP00 protection ratings for panel installations. Explore the comprehensive Crydom relay range on EnvMart for high-quality electrical components designed to optimize automation system performance.
