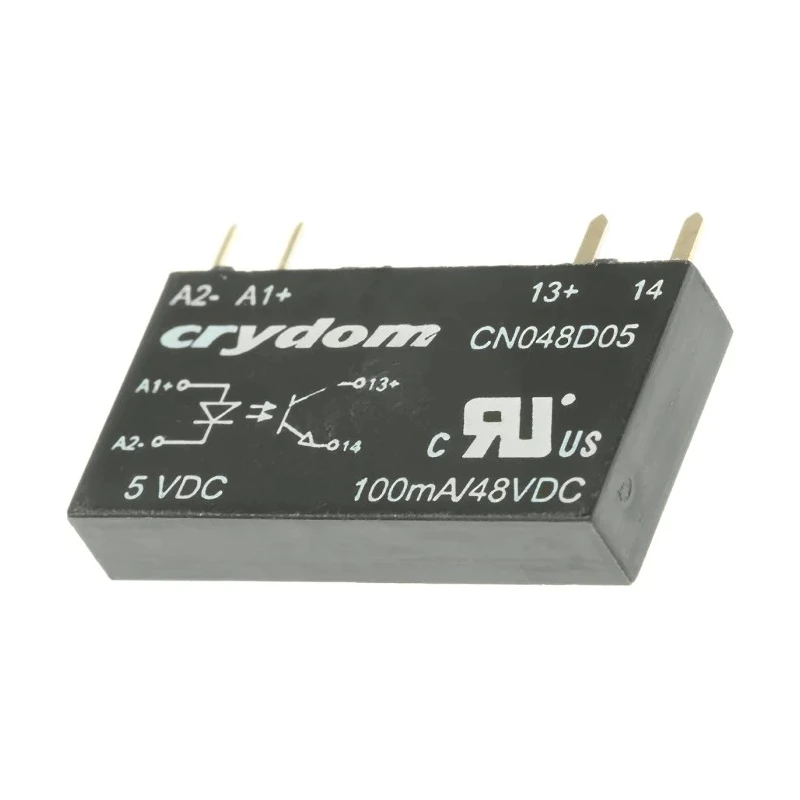

Crydom CN Series Solid State Relay PCB Mount 48 V dc Load, 0.1 A Load, 12V dc Control CN048D05
Specifications
| Country of Origin | Mexico |
|---|---|
| Brand | Crydom |
| Height | 15mm |
| Length | 28mm |
| Model | CN048D05 |
| IP Rating | IP67 |
| Width | 5mm |
| Mount Type | PCB |
| Output type | MOSFET |
| Series | CN |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | SPST |
| Package Type | Mini SIP-4 |
| Capacitance | 1.5pF |
| Minimum Operating Temperature | -20°C |
| Terminal type | Through Hole |
| Switching Function | Zero Cross Switching |
| Maximum Load Current | 0.1A |
| Standards/Approvals | UL, CE, RoHS, cUL |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 720-3953Brand: CrydomManufacturers Part No.: CN048D05 |
| Maximum Load Voltage | 48V dc |
| Minimum Load Voltage | 0V dc |
| Minimum Control Voltage | 3V dc |
| Maximum Control Voltage | 12V dc |
| Off State Leakage Current | 0.001mA |
Key Features
- Features a zero cross switching function for reduced electrical noise.
- Compact Mini SIP-4 package allows for high-density PCB mounting.
- IP67 rated housing ensures dust-tight protection and water submersion up to 1 meter for 30 minutes.
- Operates over a wide temperature range from -20°C to 80°C for versatile environments.
- Incorporates MOSFET output for efficient switching and low leakage current of 0.001mA.
- Includes through-hole terminals for secure PCB installation and soldering.
- Yellow LED input status indicator permits quick fault detection and troubleshooting.
- Complies with UL, CE, RoHS, and cUL standards for safety and environmental compliance.
Product Description
Crydom CN048D05 Solid State Relay PCB Mount 48 V dc Load with 0.1 A load and 12V dc control voltage is an advanced relay designed for reliable and durable switching in demanding industrial and medical applications. The solid-state design features no moving parts, providing a long operational life and minimal maintenance.
This relay is constructed with a self-extinguishing housing rated at IP67, making it dust-tight and able to withstand water immersion up to 1 meter for 30 minutes, suitable for harsh environments. It supports zero cross switching function which reduces electrical noise, enhancing system performance.
The compact Mini SIP-4 package measuring 28mm in length, 5mm in width, and 15mm in height allows for efficient high-density PCB mounting using through-hole terminals. Operating temperature ranges from -20°C to 80°C enable it to function reliably in various industrial, laboratory, and commercial applications.
Output is driven by MOSFET technology ensuring low off-state leakage current of only 0.001mA and capacitance of 1.5pF. The relay accepts a control voltage range from 3V dc up to 12V dc, with a load voltage maximum of 48V dc and minimum 0V dc.
Zero cross switching decreases electromagnetic interference and enhances system longevity. Durable IP67-rated housing withstands dust and water ingress. Compact footprint ideal for automated machinery and medical device PCBs.
Through-hole terminal type ensures robust PCB mounting with soldered pin connections. Wide temperature tolerance for versatile industrial and laboratory environments. Reliable MOSFET output with low leakage current reduces energy loss.
Visible yellow LED status indicator simplifies monitoring and troubleshooting. Certified with UL, CE, RoHS, and cUL ensures compliance to global quality and safety standards.
Manufactured in Mexico, the Crydom CN048D05 solid state relay is a trusted component in automation, industrial computing, medical equipment, and other demanding electrical applications. For sustainable, maintenance-free relay performance in dust- and moisture-prone environments, this relay is a valuable choice.
Explore more Solid State Relays and related electrical components at EnvMart for industrial automation and control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load voltage for this model is 48V dc.
It accepts a control voltage range from 3V dc to 12V dc.
This unit can handle a maximum load current of 0.1A.
The dimensions are 28mm in length, 5mm in width, and 15mm in height.
It incorporates a MOSFET output for efficient switching.
The relay has an IP67 rating, ensuring it is dust-tight and can withstand water immersion up to 1 meter for 30 minutes.
The operating temperature range is from -20°C to 80°C.
Yes, it features a zero cross switching function that reduces electrical noise.
It includes through-hole terminals for secure PCB installation and soldering.
It complies with UL, CE, RoHS, and cUL standards for safety and environmental compliance.
The off state leakage current is only 0.001mA.
This model is manufactured in Mexico.
