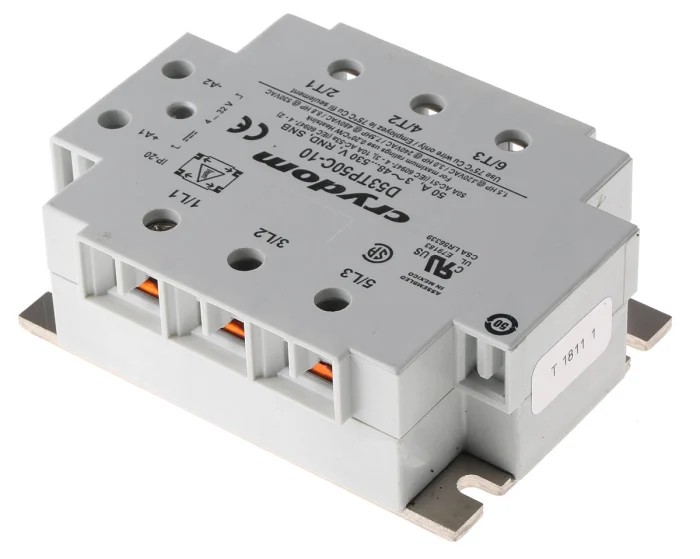

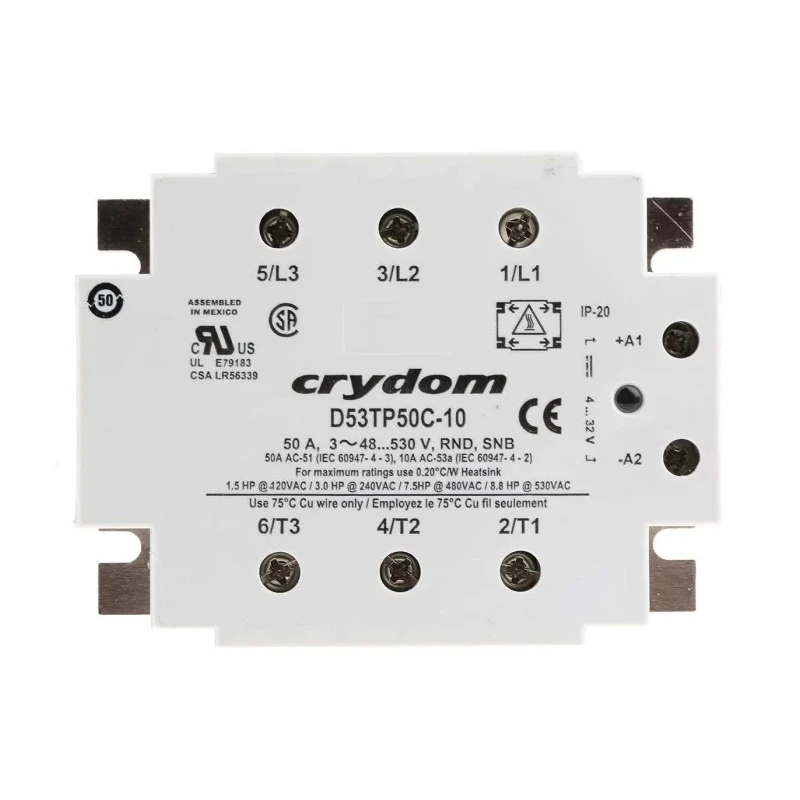

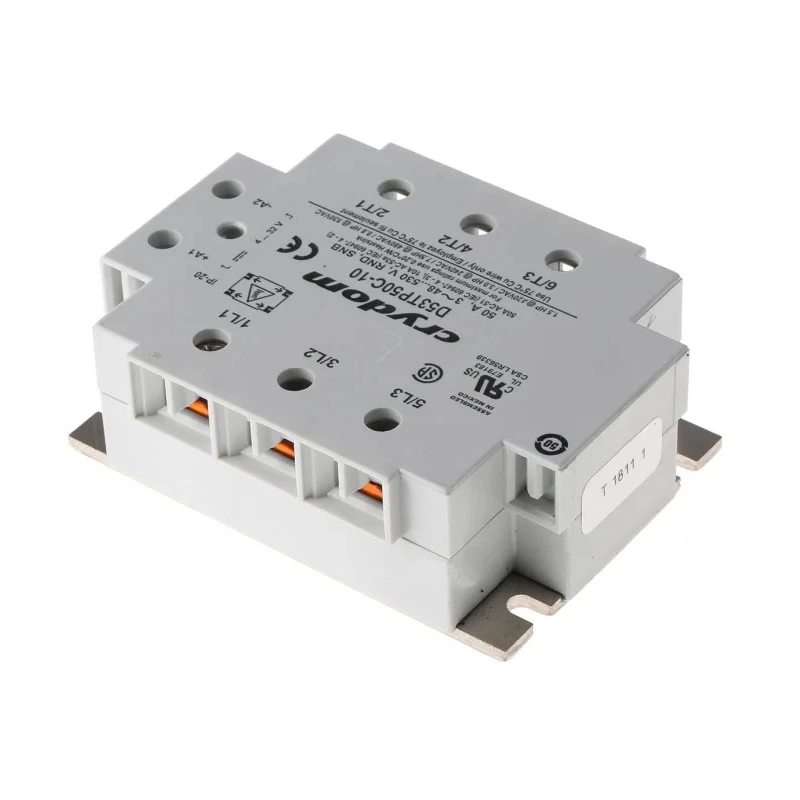

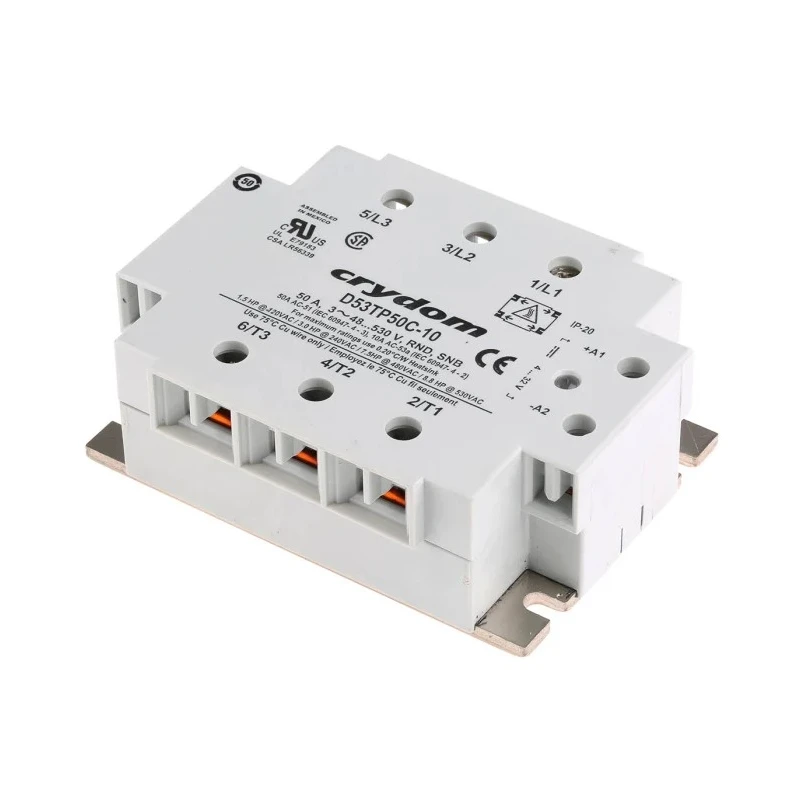

Crydom 53TP Series Solid State Relay, Panel Mount, 530 V AC Load, 50 A Load, 32 V DC Control D53TP50C-10

Crydom D53TP50C-10 53TP Series Solid State Relay is a high-performance, panel mount relay designed for heavy industrial applications requiring reliable switching of large AC loads up to 530 V with a maximum load current of 50 A. It utilizes SCR output to handle inductive and resistive loads efficiently with instantaneous switching and integrated transient protection.

This 3PST contact configuration relay supports control voltages in the range of 4 V DC minimum to 32 V DC maximum and operates without mechanical wear, making it suitable for continuous industrial operation in environments with temperature variations from -40°C up to 80°C.

The 53TP series is designed with screw terminals for secure connections and includes an LED input status indicator for visual confirmation of operation. It is available in IP00 and IP20 rated package styles to accommodate varying enclosure protection requirements. Thermal considerations may require derating the current at elevated temperatures, as specified in the datasheet.

With dimensions of 101.3 mm x 35.4 mm x 79.7 mm (L x W x H), it offers compact yet robust installation suitable for electrical panels and industrial automation systems. The relay complies with international standards including RoHS, cLR, and CE, certifying its reliability and safety for use in commercial and industrial environments.

Designed for panel mount installation in industrial systems. Supports a maximum load current of 50 A with an AC load voltage up to 530 V. Operates control voltage between 4 V DC minimum and 32 V DC maximum. Features instantaneous switching function with SCR output for reliable performance.

Equipped with screw terminals and LED input status indicator for easy installation and monitoring. Built to operate in temperature ranges from -40°C to 80°C. IP00 and IP20 package styles available for flexibility in protection levels.

Compact dimensions of 101.3 mm length, 35.4 mm width, and 79.7 mm height. Complies with RoHS, cLR, and CE standards ensuring quality and safety.

This solid state relay is ideal for industrial automation, electrical panels, heating control systems, and machinery requiring high durability and fast switching without mechanical wear. Its robust design and compliance with international standards make it a reliable choice for manufacturers and maintenance professionals seeking long-lasting and maintenance-free relay solutions.
