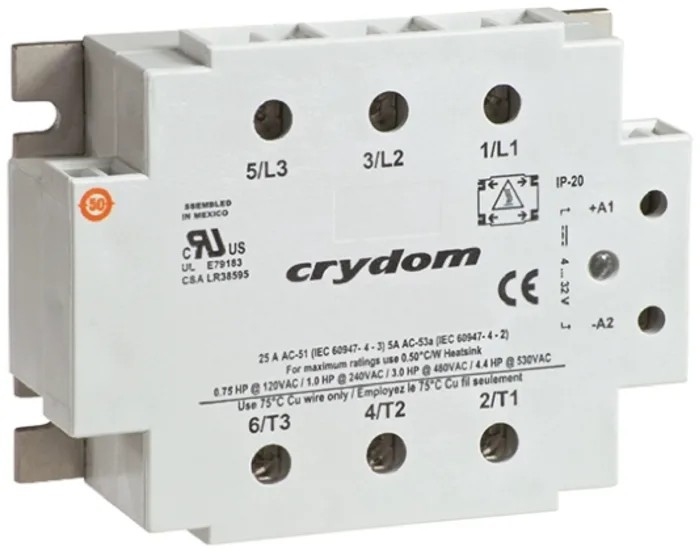

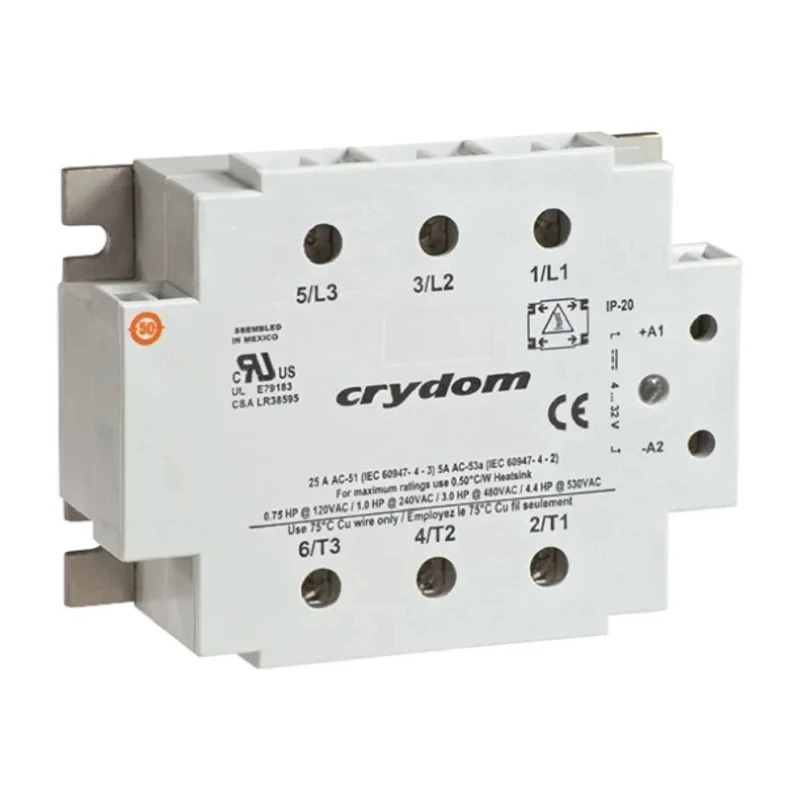

Crydom 53TP Series Solid State Relay Panel Mount 25A Load 530 V ac Load 32V dc Control D53TP25C-10

The Crydom D53TP25C-10 Solid State Relay is a robust 53TP series device designed for panel mounting in demanding industrial automation environments. It handles a maximum load current of 25 Amps and can control AC loads up to 530 Volts, making it ideal for applications requiring reliable switching of heavy industrial equipment.

This solid state relay features three-pole single-throw (3PST) contact configuration and employs an SCR output type that ensures safe operation under heavy load conditions. Instantaneous switching enhances operational speed and prevents undue delay during activation.

Constructed with screw terminals, this relay provides secure and durable electrical connections suitable for industrial electrical panels. Its IP20 and IP00 ratings provide necessary protection against dust and direct contact, ensuring operational safety in various environments.

Designed to operate efficiently across a temperature range from -40°C up to 80°C, it is suitable for a broad spectrum of industrial applications including automation, HVAC controls, manufacturing machinery, and electrical panel assemblies. The relay includes integrated transient protection for enhanced durability and an LED input status indicator for real-time operational feedback and troubleshooting.

The control voltage range starting from 4V dc to a maximum of 32V dc allows flexible system integration with most control circuits. The low off-state leakage current of 3mArms and minimal capacitance of 8pF reduce power loss and improve electrical performance.

The compact dimensions (101.3 mm length × 79.7 mm height × 35.4 mm width) allow for easy installation in panels with limited space. Originating from Mexico, this relay complies with key industry standards including RoHS, cLR, and CE, assuring quality and environmental safety compliance.

This relay features a 3PST contact configuration with instantaneous switching functionality. The output type is SCR suitable for heavy industrial AC load control applications. Designed with screw terminals for secure electrical connections.

It has an IP rating of IP20 and IP00, protecting internal components against dust and accidental contact. Operating temperature ranges from -40°C to a maximum of 80°C ensuring suitability for varied industrial environments.

Includes integrated transient protection and an LED input status indicator for operation monitoring. The relay supports control voltage range from 4V dc minimum to 32V dc maximum. The package style supports panel mount installation optimized for industrial automation systems.

The device features a low off-state leakage current of 3mArms and capacitance of 8pF. Physical dimensions are 101.3mm length, 79.7mm height, and 35.4mm width, facilitating compact integration. Applications include industrial automation, electrical control panels, manufacturing, HVAC systems, and other environments requiring reliable solid state switching.
