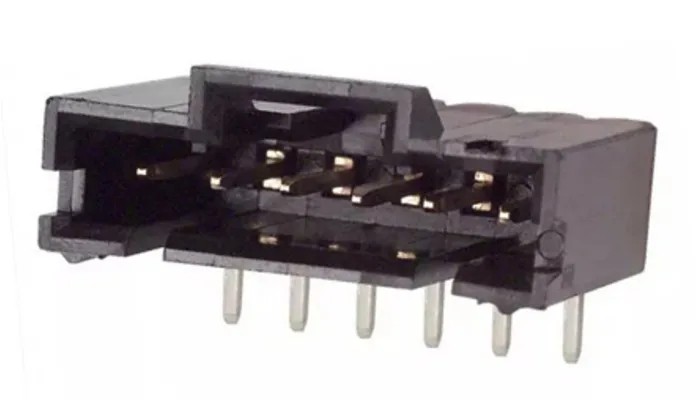

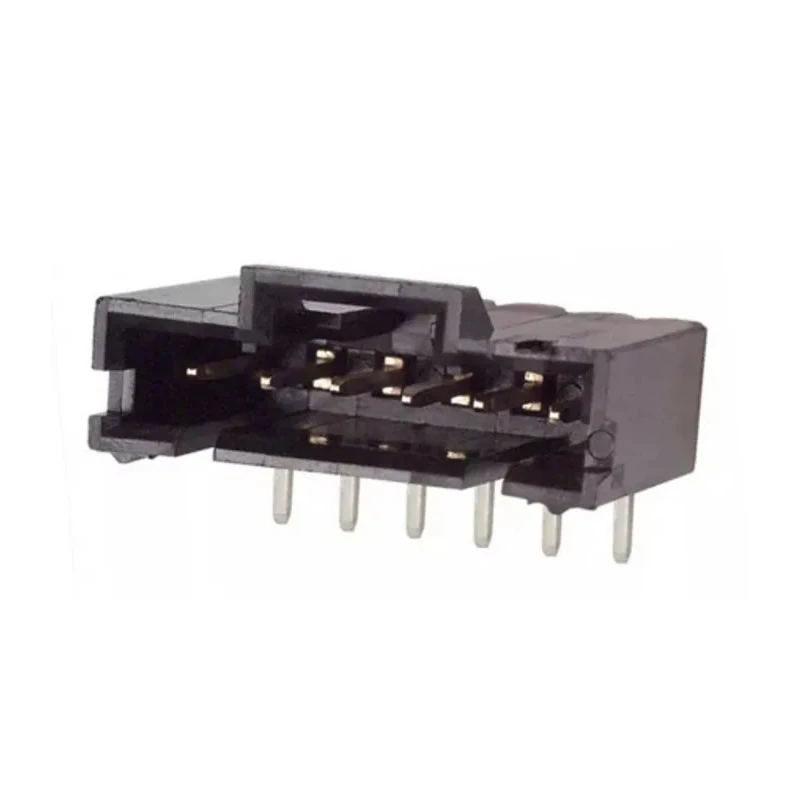

TE Connectivity AMPMODU MTE Series Right Angle Through Hole PCB Header, 6 Contacts, 2.54 mm Pitch, 1 Row, Shrouded 5-103635-5
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 40V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Brass |
| Series | AMPMODU MTE |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 719-0068Brand: TE ConnectivityManufacturers Part No.: 5-103635-5 |
| Contact Plating | Gold |
| Number of Contacts | 6 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- This right angle PCB header features 6 male contacts rated at 3A current capacity.
- The housing is constructed from durable thermoplastic material with gold-plated brass contacts.
- It has a 2.54 mm pitch and is mounted using through-hole technology.
- The shrouded design and integral latching mechanism ensure secure mating with IDC receptacle connectors.
- Operates effectively across a temperature range of -55°C to 105°C and supports a voltage rating of 40V.
- Suitable for mass termination of wires in electronic, telecommunications, instrumentation, and automotive applications.
- End to end stackable headers allow flexible assembly in various PCB configurations.
- Termination type is solder, providing reliable electrical connectivity and mechanical strength.
Product Description
TE Connectivity 5-103635-5 AMPMODU MTE Series Right Angle Through Hole PCB Header features a robust thermoplastic housing with six gold-plated brass male contacts arranged in a single row with a 2.54 mm pitch. Designed for right angle mounting and through-hole installation, this shrouded header provides secure wire-to-board connections.
Its integral latching mechanism offers a secure mating connection when used with MTE IDC receptacle connectors, facilitating fast and reliable mass termination of wires without the need for wire stripping. The product is end to end stackable, allowing versatile PCB designs and assembly configurations.
Operating within a temperature range from -55°C to 105°C and rated for 3A current and 40V voltage, this connector is suitable for use in computers, telecommunications equipment, instrumentation, commercial printers, appliances, medical devices, and automotive controls.
The solder termination type ensures stable and durable electrical connections. The AMPMODU MTE Interconnection System optimizes labour efficiency and cost savings for manufacturing wire-to-board and wire-to-wire assemblies.
This right angle PCB header features 6 male contacts rated at 3A current capacity. The housing is constructed from durable thermoplastic material with gold-plated brass contacts. It has a 2.54 mm pitch and is mounted using through-hole technology.
The shrouded design and integral latching mechanism ensure secure mating with IDC receptacle connectors. Operates effectively across a temperature range of -55°C to 105°C and supports a voltage rating of 40V. Suitable for mass termination of wires in electronic, telecommunications, instrumentation, and automotive applications.
End to end stackable headers allow flexible assembly in various PCB configurations. Termination type is solder, providing reliable electrical connectivity and mechanical strength. Explore EnvMart's extensive selection of PCB Headers and connectors for your electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header is rated for a current capacity of 3A.
It has a voltage rating of 40V.
The contacts have a pitch of 2.54 mm.
The housing is made from thermoplastic, and the contacts are gold-plated brass.
It operates effectively within a temperature range of -55°C to 105°C.
This model is mounted using through-hole technology.
Yes, it features a shrouded design and an integral latching mechanism for secure mating with IDC receptacle connectors.
It has 6 male contacts arranged in a single row.
The termination type is solder, providing reliable electrical connectivity.
It is suitable for applications in electronics, telecommunications, instrumentation, and automotive controls.
The country of origin is India.
Yes, it is designed for mass termination of wires without the need for wire stripping.
