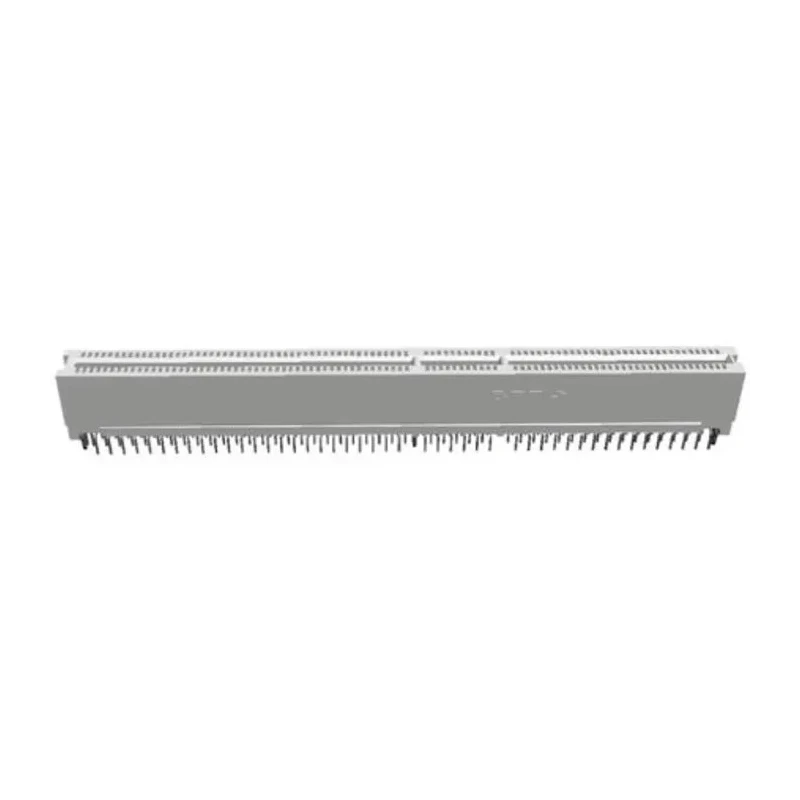

TE Connectivity PCI & PCIe Series Straight Edge Connector Female Through Hole 184-Contacts 1.27 mm Pitch 2 Row 5145169-8
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 203V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Phosphor Bronze |
| Series | PCI & PCIe |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 1.27mm |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 718-8340Brand: TE ConnectivityManufacturers Part No.: 5145169-8 |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 184 |
| Contact Gender | Female |
| Connector Gender | Female |
| Card Type | Dual Edge, PCIe |
Key Features
- The connector features a straight orientation suitable for dual edge PCIe cards.
- Contact plating is gold over nickel for reliable performance.
- Constructed with phosphor bronze contacts and thermoplastic housing.
- Supports operating temperatures from -55°C to 85°C.
- Can operate at a voltage rating of up to 203 volts.
- Termination type is solder, ensuring strong electrical connections.
- Meets RoHS environmental standards for compliance.
- The connector includes 3 brass hold downs for board retention.
Product Description
TE Connectivity 5145169-8 PCI & PCIe Series Straight Edge Connector is a high-quality female edge connector with 184 contacts spaced at 1.27 mm pitch across 2 rows. It utilizes through hole mount type and is designed for dual edge PCI and PCIe card applications with a 64-bit bus width.
This connector is constructed from durable thermoplastic housing and phosphor bronze contacts with gold over nickel plating to ensure excellent conductivity and corrosion resistance. It offers a voltage rating of 203 volts and operates reliably within temperatures ranging from -55°C up to 85°C.
Featuring solder termination and 3 brass hold downs, this component provides robust mechanical and electrical connections suitable for electronic manufacturing, industrial control systems, and computing devices.
Compliant with RoHS standards, it supports environmentally responsible applications. Its precise design and reliability make it ideal for use in laboratories, manufacturing equipment, HVAC systems, and other industrial electronic setups.
The connector has a straight orientation and 2 rows of contacts. Contact plating provides high durability and low contact resistance. Thermoplastic housing ensures insulation and strength. Wide operating temperature range enhances versatility.
RoHS compliance supports eco-friendly manufacturing. Suitable for PCI and PCIe card edge connection needs. Gold over nickel plating protects contacts from wear and oxidation. Solder termination enables strong and reliable PCB connections.
Brass hold downs secure the connector mechanically to the PCB. Ideal for electronic component integration in various industrial sectors. Explore more TE Connectivity Edge Connectors and related electronic components at EnvMart to support your industrial and electronic design requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector has a maximum voltage rating of 203 volts.
The contacts are spaced at a pitch of 1.27 mm.
This model features 184 contacts.
It utilizes solder termination for strong electrical connections.
The connector is constructed with phosphor bronze contacts and a thermoplastic housing.
It operates reliably within a temperature range of -55°C to 85°C.
Yes, it meets RoHS environmental standards for compliance.
The connector features a straight orientation suitable for dual edge PCIe cards.
This model uses a through hole mount type for installation.
It is designed for dual edge PCI and PCIe card applications.
It includes 3 brass hold downs for secure board retention.
The country of origin for this connector is India.
