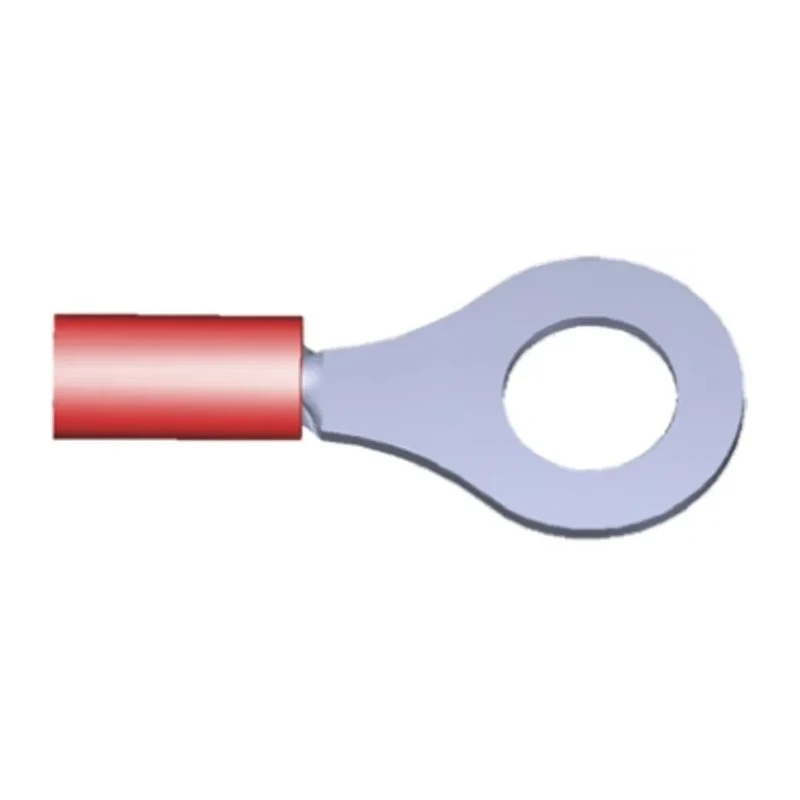

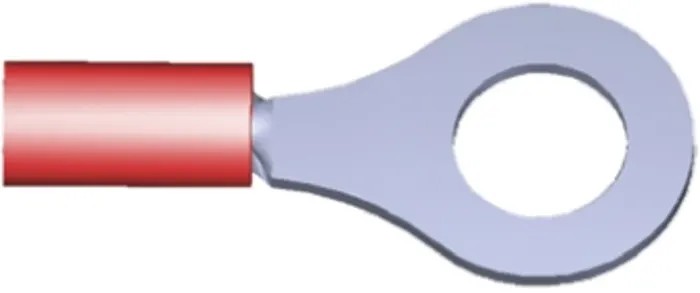

TE Connectivity PLASTI-GRIP Insulated Ring Terminal M6 Stud Size 22 AWG to 16 AWG Red 2-34150-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Red |
| Insulation | Insulated |
| Overall Length | 27.69mm |
| Contact Material | Copper |
| Series | PLASTI-GRIP |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Vinyl |
| Standards/Approvals | ANSI/ESD S20.20:2021 Electrostatic Control Standard, RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 718-7441PBrand: TE ConnectivityManufacturers Part No.: 2-34150-1 |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.26mm² |
| Maximum Wire Size mm² | 1.65mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Stud Size | M6 |
| Standards/ApprovalsANSI/ESD S20.20 | 2021 Electrostatic Control Standard, RoHS |
Key Features
- The terminal has a maximum operating temperature of 105°C.
- Manufactured with high conductivity copper contact material plated with tin to prevent corrosion.
- The insulation sleeve is vinyl rated at 94V-0 for high dielectric strength.
- The closed barrel has serrations to ensure maximum electrical contact and tensile strength after crimping.
- The funnel entry in the wire barrel allows easy wire insertion for efficient crimping.
- The overall length of the terminal is 27.69 mm.
- Suitable for electrical and electronic applications requiring reliable power and signal connections.
Product Description
TE Connectivity 2-34150-1 PLASTI-GRIP insulated ring terminal is engineered for secure wire connections with M6 stud sizes and wire sizes ranging from 22 AWG to 16 AWG. Featuring red vinyl insulation, it offers robust electrical insulation and protection against environmental factors.
The terminal is constructed from high conductivity copper material with tin plating, ensuring excellent corrosion resistance and electrical performance. The closed barrel design with serrated inner surface enhances crimp integrity by providing maximum electrical contact and tensile strength. Additionally, the funneled entry facilitates easy wire insertion during the crimping process, improving assembly efficiency.
Rated for a maximum operating temperature of 105°C, this ring terminal complies with ANSI/ESD S20.20:2021 Electrostatic Control Standards and meets RoHS directives, making it suitable for advanced industrial and electronic environments requiring electrostatic discharge control.
Its overall length is 27.69 mm, providing compact dimensions suitable for space-constrained installations. The vinyl insulation sleeve is rated 94V-0, offering high dielectric strength and resistance to mechanical wear.
The terminal supports wire sizes from 22 AWG (minimum) to 16 AWG (maximum). It utilizes copper contact material with tin plating for enhanced conductivity and longevity. Designed to meet strict electrostatic and environmental regulations.
Insulation material is a durable, high dielectric strength vinyl. Suitable for a broad range of electrical and electronic applications including power distribution and control. The closed barrel design ensures reliable and durable crimp connections.
The red insulation identifies wire gauge and application suitability.
TE Connectivity PLASTI-GRIP ring terminals are widely used in industrial electronics, control panels, automotive wiring, and other environments demanding reliable electrical connections and electrostatic discharge protection.
Explore more high-quality Ring Terminals and related connectors from TE Connectivity on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this ring terminal is 105°C.
This terminal is compatible with wire sizes ranging from 22 AWG to 16 AWG.
The overall length of this terminal is 27.69 mm.
The contact material of this terminal is high conductivity copper, plated with tin to prevent corrosion.
It features red vinyl insulation, which is rated at 94V-0 for high dielectric strength.
This terminal complies with ANSI/ESD S20.20:2021 Electrostatic Control Standards and meets RoHS directives.
The closed barrel design with serrations ensures maximum electrical contact and tensile strength after crimping.
The funnel entry in the wire barrel allows for easy wire insertion, improving assembly efficiency during crimping.
This terminal is suitable for a broad range of electrical and electronic applications, including power distribution and control.
The stud size for this terminal is M6.
The insulation material used in this terminal is durable vinyl, providing high dielectric strength and resistance to mechanical wear.
This terminal is manufactured in India.
