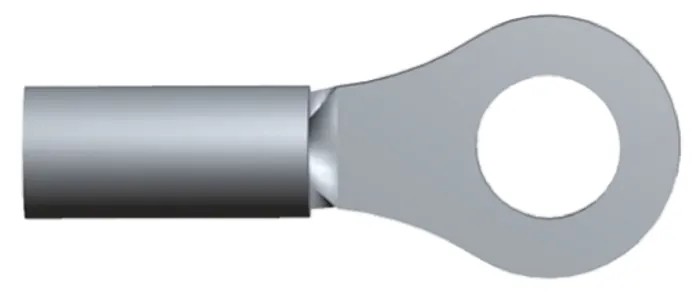

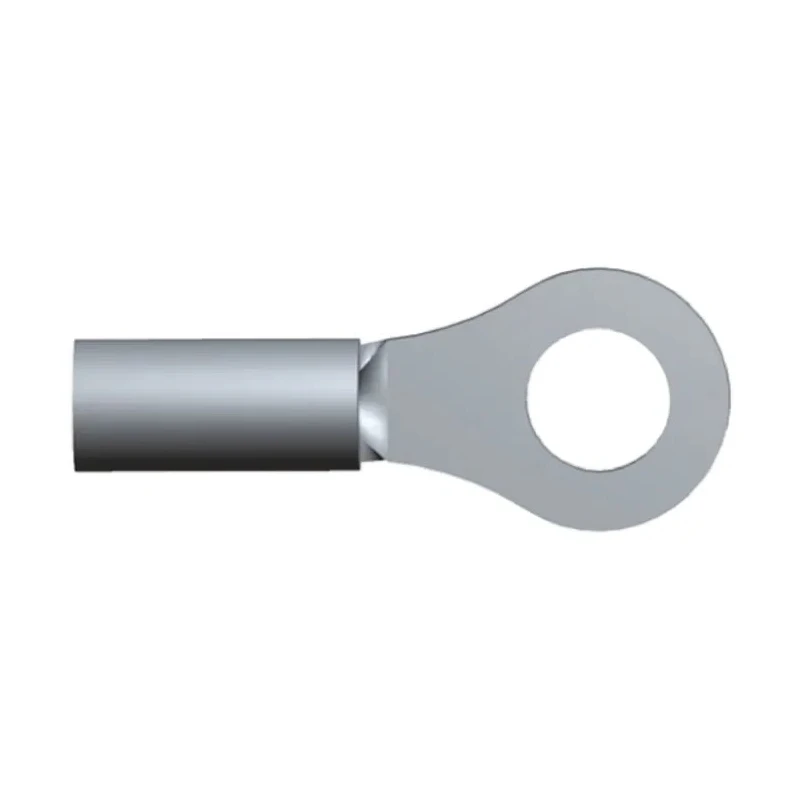

TE Connectivity DG STRATO-THERM Uninsulated Ring Terminal M4 Stud Size 16 AWG-14 AWG 20.6mm Length Copper Nickel 322374
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| THICKNESS | 0.79mm |
| Model | 322374 |
| Insulation | Uninsulated |
| Overall Length | 20.6mm |
| Contact Material | Copper |
| Series | DG STRATO-THERM |
| Maximum Operating Temperature | 343°C |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 718-7410PBrand: TE ConnectivityManufacturers Part No.: 322374 |
| Contact Plating | Nickel |
| Minimum Wire Size mm² | 1mm² |
| Maximum Wire Size mm² | 2.6mm² |
| Minimum Wire Size AWG | 16AWG |
| Maximum Wire Size AWG | 14AWG |
| Outer Ring Diameter | 8.71mm |
| Inner Ring Diameter | 4.34mm |
| Stud Size | M4 |
Key Features
- Constructed from nickel plated electrolytic copper for excellent conductivity and corrosion resistance.
- Uninsulated design suitable where insulation is not required or temperature limits prevent standard insulated crimps.
- Features inner ring diameter of 4.34mm and outer ring diameter of 8.71mm for secure stud attachment.
- Overall length is 20.6mm with a thickness of 0.79mm for durability and reliable electrical contact.
- Compatible with solid and stranded conductors, maximizing electrical contact via serrations in the barrel.
- Conforms to RoHS standards for environmental and safety compliance.
- Ideal for industrial electrical connections in automotive, manufacturing, and power distribution applications.
Product Description
TE Connectivity 322374 DG STRATO-THERM uninsulated ring terminal is engineered for applications requiring heat resistant connections. It supports wire sizes from 16 AWG to 14 AWG and fits M4 stud sizes, with an overall length of 20.6mm for compact installations. The terminal is made from nickel plated electrolytic copper and nickel silver sleeve, providing excellent conductivity and corrosion resistance to withstand harsh industrial environments.
This ring terminal is uninsulated to allow for heat stability where insulated alternatives fail, rated for maximum operating temperatures of up to 343°C (650°F). It terminates both solid and stranded conductors by pressing the wire into serrated barrels ensuring maximum electrical contact and mechanical strength.
With an inner ring diameter of 4.34mm and outer ring diameter of 8.71mm, this M4 stud ring terminal is suitable for power connectors in electrical circuits, automotive wiring harnesses, manufacturing equipment, and HVAC installations requiring reliable, durable connections.
Nickel plated electrolytic copper contact material offers superior performance. Uninsulated design for high temperature heat resistance. Serrated barrel for enhanced electrical contact area. RoHS compliant for safe usage in green electronics.
Fits wire sizes from 16 AWG to 14 AWG. M4 stud size for common industrial terminal blocks and connections. Overall length of 20.6mm, thickness 0.79mm for robust handling.
TE Connectivity’s DG STRATO-THERM series terminals provide advanced heat resistant solutions for industries demanding reliability under thermal stress. This product is indispensable in electrical infrastructure, automotive wiring, industrial control panels, and power distribution systems.
Explore the full range of heterogeneous Ring Terminals and connectors on EnvMart for tailored industrial, electronic, and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this ring terminal is 343°C (650°F).
This model supports wire sizes from 16 AWG to 14 AWG, accommodating a minimum wire size of 1 mm² and a maximum of 2.6 mm².
The inner ring diameter is 4.34 mm and the outer ring diameter is 8.71 mm, ensuring secure stud attachment.
It is constructed from nickel plated electrolytic copper, providing excellent conductivity and corrosion resistance.
No, this terminal is uninsulated, making it suitable for applications where insulation is not required or where high temperatures are a factor.
The overall length is 20.6 mm and the thickness is 0.79 mm, designed for compact installations and robust handling.
It can terminate both solid and stranded conductors, utilizing serrations in the barrel to maximize electrical contact.
This ring terminal is designed to fit M4 stud sizes, suitable for common industrial terminal blocks and connections.
This product conforms to RoHS standards, ensuring compliance with environmental and safety regulations.
The terminal is manufactured in India.
This ring terminal belongs to the DG STRATO-THERM series, which is engineered for heat resistant connections.
It is ideal for industrial electrical connections in automotive, manufacturing, and power distribution applications.
