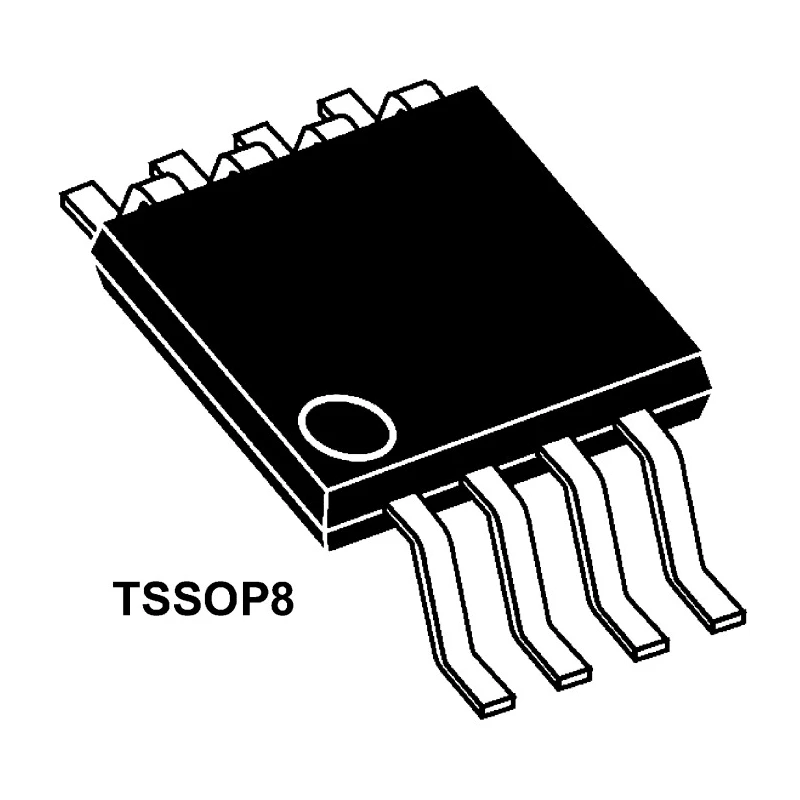

STMicroelectronics Operational Amplifier 1.1 MHz, 8-Pin TSSOP LM358PT
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1mm |
| Length | 3mm |
| Model | LM358PT |
| Width | 4.4mm |
| Mount Type | Surface |
| Series | LM158-LM258-LM358 |
| Output Current | 60mA |
| Maximum Operating Temperature | 70°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | 0°C |
| Number Of Channels | 2 |
| Standards/Approvals | ECOPACK, AEC Q100 |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 714-7412PBrand: STMicroelectronicsManufacturers Part No.: LM358PT |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 3V |
| Minimum Supply Voltage | 5V |
| GBP - Gain Bandwidth Product | 1.1MHz |
| Input Bias Current | 20 to 150 nA |
| Vos - Input Offset Voltage | 2 to 7 mV |
| Slew Rate | 0.6V/μs |
| Input Offset Current | 2 to 40 nA |
| Wide bandwidth (unity gain) | 1.1 MHz |
Key Features
- The device is a low power dual operational amplifier with low input bias current.
- It features a wide bandwidth of 1.1 MHz and slew rate of 0.6 V/μs.
- Input offset voltage ranges from 2 to 7 mV, ensuring precise operation.
- It supports operating temperatures from 0°C to 70°C, suitable for automotive and industrial applications.
- The amplifier meets automotive AEC-Q100 standard for reliability.
- The compact TSSOP package measures 3 x 4.4 x 1 mm for easy PCB integration.
- Designed for a single supply voltage with output swinging to ground capability.
Product Description
STMicroelectronics LM358PT is a dual operational amplifier designed for surface mount use in various electronic devices and circuits. It features two independent, internally frequency compensated amplifiers that provide stable high gain operation with low power consumption.
With a gain bandwidth product of 1.1 MHz and a slew rate of 0.6 V/μs, the LM358PT operates efficiently in low voltage environments ranging from 3 V to 5 V. The device supports input bias currents as low as 20 nA, making it ideal for precision analog signal processing.
The compact 8-pin TSSOP package (3 mm length x 4.4 mm width x 1 mm height) facilitates easy integration onto densely packed circuit boards. The device operates reliably within a temperature range of 0°C to 70°C and complies with ECOPACK and AEC-Q100 automotive standards, ensuring suitability for automotive and industrial applications.
This operational amplifier is widely used in analog signal amplification, filtering, and sensor interface circuits in industrial controls, consumer electronics, and automotive systems.
Low input bias current for high precision. Single supply operation with output swing to ground. Automotive grade reliability (AEC-Q100 certified). Compact TSSOP package for surface mounting. Wide bandwidth and stable gain performance.
Operational temperature range suitable for harsh environments. Compliant with ECOPACK environmental standards.
For engineers and designers seeking reliable Operational Amplifiers for various applications, STMicroelectronics LM358PT provides a robust and versatile option. Explore the complete range of semiconductor amplifiers for your industrial and automotive electronics designs on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 1.1 MHz, allowing for stable high gain operation in various applications.
The input offset voltage for the LM358PT ranges from 2 to 7 mV, ensuring precise operation in signal processing applications.
This operational amplifier operates reliably within a temperature range of 0°C to 70°C, making it suitable for automotive and industrial environments.
The device supports a minimum supply voltage of 3V and a maximum supply voltage of 5V, designed for low voltage applications.
The LM358PT comes in an 8-pin TSSOP package, with dimensions of 3 mm in length, 4.4 mm in width, and 1 mm in height.
This operational amplifier can provide an output current of up to 60 mA, suitable for a variety of applications.
The slew rate of this model is 0.6 V/μs, which is important for determining how fast the output can respond to changes in input.
The LM358PT complies with ECOPACK and AEC-Q100 automotive standards, ensuring its reliability for automotive applications.
The input bias current for the LM358PT ranges from 20 to 150 nA, making it suitable for precision analog signal processing.
Yes, the LM358PT is designed for surface mount applications, facilitating easy integration onto circuit boards.
This operational amplifier features two independent channels, allowing for versatile applications in various circuits.
The input offset current for this model ranges from 2 to 40 nA, contributing to its precision in signal processing tasks.
