STMicroelectronics Operational Amplifier 1.1 MHz Gain Bandwidth, 8-Pin SOIC Package LM258DT

STMicroelectronics LM258DT is a dual operational amplifier featuring a 1.1 MHz gain bandwidth that ensures reliable performance in a range of electronic applications, including industrial, automotive, and consumer electronics. The integrated circuits offer two independent, high-gain, internally frequency-compensated operational amplifiers that provide high DC voltage gain of approximately 100 dB, suitable for signal conditioning and filtering.

This device is designed for single power supply operation from a voltage range of 5V to 32V, supporting a wide spectrum of input signals, including signals close to ground, with output swings also including ground level. Its low input bias current of 150 nA and input offset voltage of 5 mV enhance precision in measurement and amplification tasks.

The LM258DT maintains functionality across a broad temperature range from -40°C to 105°C, making it suitable for demanding environmental conditions. Its output drive capability of 60 mA and slew rate of 0.6 V/μs enable it to handle dynamic signal changes effectively.

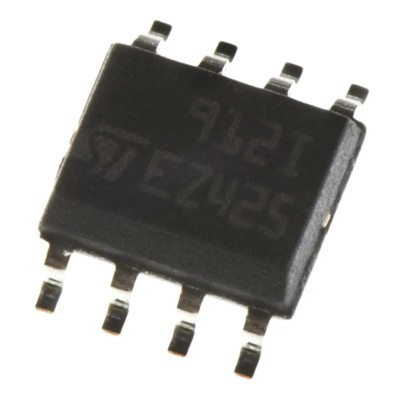

The compact SOIC 8-pin surface mount package (4.9 mm x 3.9 mm x 1.25 mm) ensures easy integration on printed circuit boards for space-constrained designs. The component complies with RoHS environmental directives and holds the automotive standard AEC-Q100, validating its quality and durability in automotive electronics.

Dual independent high-gain amplifiers in one package. Wide supply voltage range for versatile applications. Low input bias and offset currents for precision. High slew rate and output current capacity. Compact SOIC surface-mount packaging.

Wide operating temperature range for harsh environments. RoHS compliant and automotive standard certified.

This operational amplifier is ideal for industrial instrumentation, automotive control systems, audio processing, and general-purpose signal amplification. Its reliable performance and compliance with quality standards make it a preferred choice for engineering and manufacturing applications.
