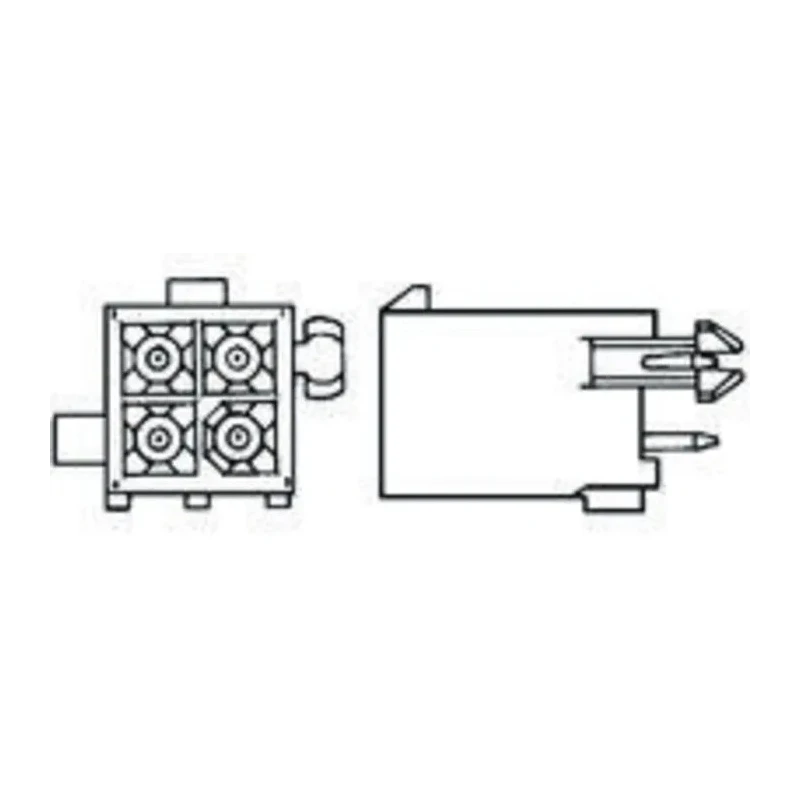

TE Connectivity Mini-Universal MATE-N-LOK Series Straight Through Hole 6 Contact Male PCB Header 4.14 mm Pitch 2 1-770875-0
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 600V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 9.5A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | Mini-Universal MATE-N-LOK |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -20°C |
| Number of Rows | 2 |
| Pitch | 4.14mm |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 709-9956PBrand: TE ConnectivityManufacturers Part No.: 1-770875-0 |
| Contact Plating | Tin |
| Number of Contacts | 6 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- The connector is constructed with a white UL94V-0 rated nylon housing for flame resistance.
- It features brass contacts plated with tin for reliable conductivity and corrosion resistance.
- The shrouded design ensures secure mating with positive locking latch mechanism.
- Supports a maximum operating current of 9.5A and voltage rating up to 600V.
- Has a minimum operating temperature of -20°C and maximum operating temperature of 85°C.
- The connector is through-hole mounted for robust PCB attachment.
- Ideal for industrial electronics, power distribution, and PCB assembly applications.
- Compatible with Mini-Universal MATE-N-LOK plug housings using socket contacts for versatile system integration.
Product Description
TE Connectivity 1-770875-0 Mini-Universal MATE-N-LOK Series PCB Header is a high-quality, industrial-grade connector designed for demanding electronic and power applications. This straight through hole header features 6 brass male contacts arranged in 2 rows with a 4.14 mm pitch, providing reliable wire-to-board connectivity.
Its UL94V-0 nylon housing offers excellent flame resistance and mechanical durability. The shrouded design incorporates a positive locking latch as well as board locks to ensure secure mating and retention on the PCB even in vibration-prone environments.
Rated for 9.5 amperes current and 600 volts max voltage, this connector operates safely in a temperature range from -20°C to 85°C. Contact surfaces plated in tin provide corrosion resistance and enhanced electrical contact integrity.
The through hole mount type guarantees strong and permanent PCB attachment, suitable for industrial, manufacturing, automation, and electrical distribution use cases. For system design flexibility, the Mini-Universal MATE-N-LOK connectors are complemented by various compatible plug housings and socket contact options.
Key features include robust construction, secure mating mechanism, and certified operating standards making it a dependable choice for electronics engineers and system integrators.
The connector has a white nylon UL94V-0 flame retardant housing. Includes 6 brass contacts plated with tin for durability. Shrouded with positive locking latch and PCB board locks. Current rating of 9.5A and voltage rating of 600V.
Operates from -20°C to a maximum of 85°C. Through hole mount ensures mechanical stability on PCB. Designed for wire-to-board applications in industrial electronics. Compatible with Mini-Universal MATE-N-LOK plug housings using socket contacts.
This TE Connectivity PCB Header is an essential component in electronic assemblies for power connectors, control systems, and signal interfacing applications. It combines safety, durability, and ease of installation to streamline production and enhance system reliability.
Explore the full range of TE Connectivity components at EnvMart for comprehensive solutions in electronics connectivity.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating of this PCB header is 9.5A.
This model has a voltage rating of 600V.
The pitch of the contacts in this connector is 4.14 mm.
The connector features a nylon housing and brass contacts plated with tin.
The operating temperature range for this PCB header is from -20°C to 85°C.
This connector is designed for through-hole mounting, ensuring robust attachment to the PCB.
This connector has a total of 6 contacts arranged in 2 rows.
This model utilizes a wire-to-board connector system.
Yes, it features a positive locking latch and board locks for secure mating.
The orientation of this PCB header is straight.
This connector is manufactured in India.
This connector uses solder termination type.
