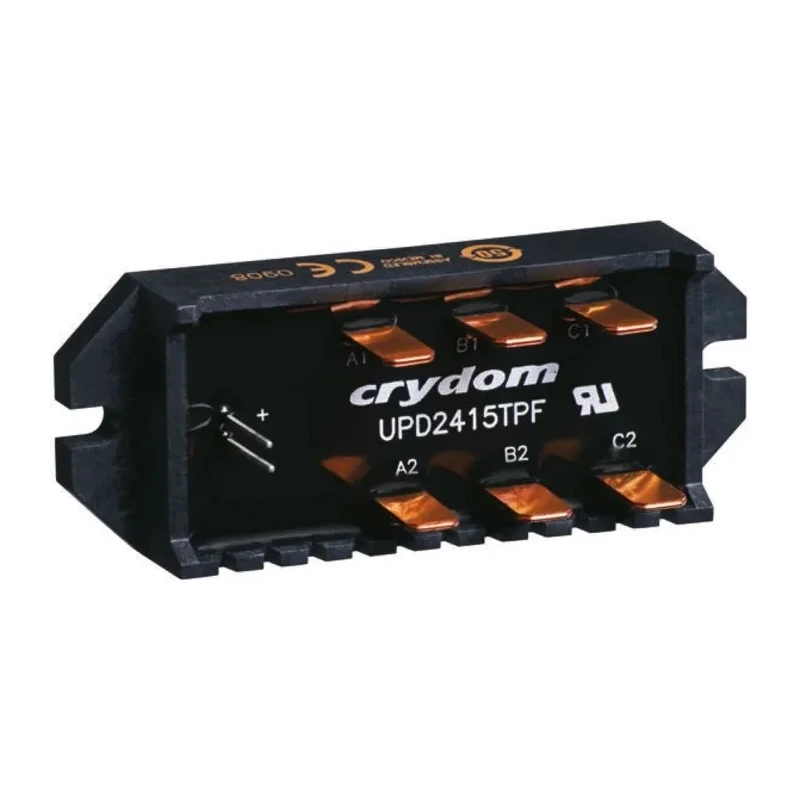

Crydom Panel Mount Solid State Relay UPD24TP Series, 15 A Load, 280 Vrms Load, 32 V Control

Crydom UPD2415TPF-10 is a panel mount Solid State Relay from the UPD24TP series, engineered for demanding industrial and automation applications. It supports a maximum load current of 15 A and a maximum load voltage of 280 Vrms. The relay operates with control voltages between 3 V dc and 32 V dc, providing versatile interfacing options.

This SSR features a single-pole single-throw normally open (SPST-NO) contact configuration and uses SCR output technology to switch heavy industrial loads reliably. The zero cross switching function minimizes electrical noise and stress on the connected load, enhancing system stability.

Designed to operate in temperatures ranging from -40°C to 80°C, this relay suits challenging environmental conditions common in industrial settings. The compact panel mount form factor with quick connect terminals simplifies installation and maintenance, while the low off-state leakage current of 10 mA improves energy efficiency during idle periods.

Dimensions of 78.2 mm length, 0.5 mm width, and 12.7 mm height make it suitable for space-constrained control panels. The product is RoHS compliant, reassuring environmentally conscious manufacturing and usage. Applications include industrial automation, electrical control systems, HVAC control, and manufacturing process control.

Key features include:. 15 A maximum load current at 280 Vrms. Panel mount with quick connect terminals. Zero cross switching for noise reduction. Wide operating temperature range (-40°C to 80°C). Semi-conductor relay (SCR) for heavy industrial loads.

Compact size for efficient panel design. Low off-state leakage current. RoHS compliance.

This Crydom UPD2415TPF-10 SSR belongs to the product family of solid-state relays designed for robust and reliable electrical load switching in industrial environments. Available exclusively at EnvMart for quality assurance and professional procurement needs.
