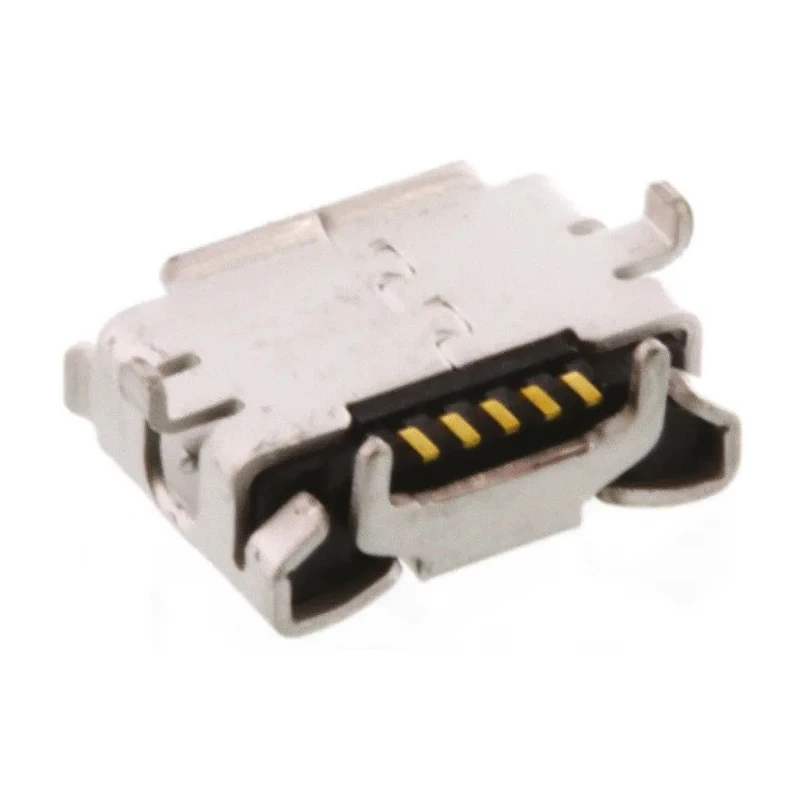

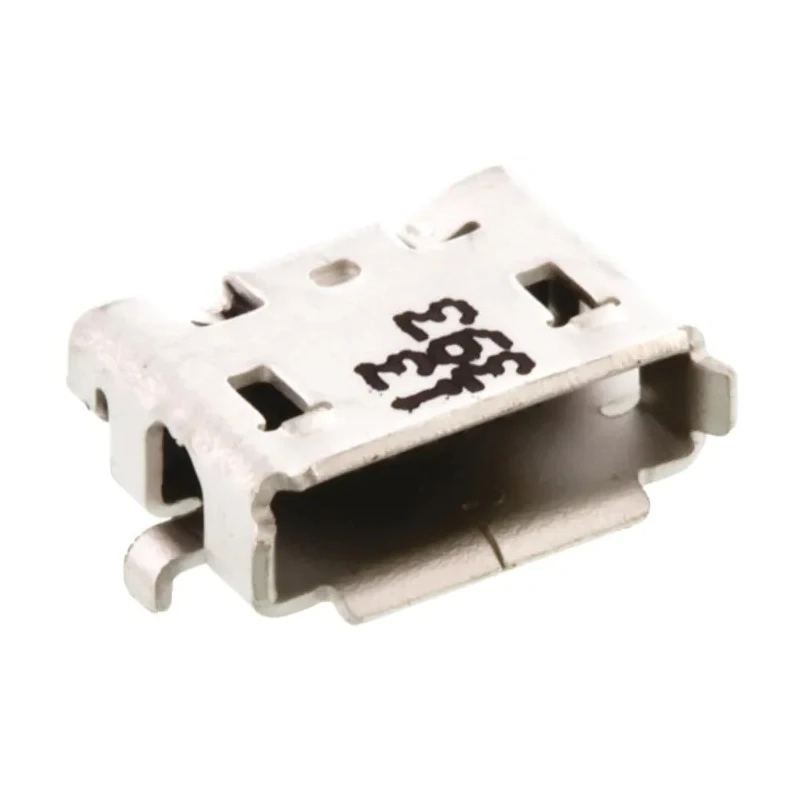

Molex Right Angle Surface Mount Female 1 Port Micro USB Type AB USB Connector USB 2.0 47589-0001
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 30V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 1A |
| Mount Type | Surface |
| Contact Material | Copper Alloy |
| Series | 4758 |
| Number Of Ports | 1 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -20°C |
| USB Type | Micro USB Type AB |
| Pay online using | Or choose to pay later via bank transfer |
| Connector Gender | Female |
| USB Specification | USB 2.0 |
Key Features
- Compact, space-saving surface mount design for PCB applications.
- Female connector with right angle orientation for optimized installation.
- Supports USB 2.0 specification up to 1 amp current and 30V voltage.
- Copper alloy contacts ensure reliable electrical conductivity.
- High durability exceeding 10,000 insertion cycles for long service life.
- Operating temperature range from -20°C to 85°C for varied environments.
- Solder termination type for secure PCB mounting.
- Lead-in housing feature facilitates blind mating with cable plug.
Product Description
Molex 47589-0001 is a right angle, surface mount female USB connector with 1 port, designed for Micro USB Type AB interfaces supporting USB 2.0 specifications with 1 amp current capacity and 30 volts voltage rating. This connector's compact 0.65 mm pitch design saves PCB space and ensures long-term reliability through a high durability rating of over 10,000 insertion cycles.
The connector includes a lead-in feature on the housing facilitating blind mating to the cable plug, and a fully shielded laser-welded stainless steel shell that offers excellent mechanical strength as well as electromagnetic interference (EMI) protection. The latching tabs ensure a secure connection to the mating plug assembly, and the edge contact beam geometry supports high-speed data transmission.
Constructed with copper alloy contacts and a solder termination type, the connector supports an operating temperature range between -20°C and 85°C, suitable for varied industrial and commercial electronic applications.
This Molex micro USB AB type connector is ideal for use in mobile phones, PDA devices, GPS units, MP3 players, digital still and video cameras, printers, keyboards, flash drives, and vehicle battery chargers, making it a versatile choice for compact portable electronic devices.
Compact, space-saving surface mount design for PCB applications. Right angle, female connector with lead-in housing for blind mating. Laser welded stainless steel shell providing EMI shielding and strength. High durability rated for over 10,000 insertion cycles.
Supports USB 2.0 specification with 1A current and 30V voltage. Solder termination for secure PCB connection. Operating temperature range of -20°C to 85°C. Copper alloy contacts ensuring reliable conductivity. Edge contact beam geometry for high-speed data communication.
Suitable for portable electronic devices and vehicle chargers. Choose Molex connectors for trusted performance in electronic component assemblies and enhance your device's connectivity. Explore more from the USB Connector category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this connector is 30 volts.
It supports a current capacity of 1 amp.
This connector uses a solder termination type for secure PCB mounting.
The operating temperature range is from -20°C to 85°C.
It is rated for over 10,000 insertion cycles, ensuring long-term reliability.
This model features a right angle orientation, which is optimized for installation in tight spaces.
The contacts are constructed from copper alloy, ensuring reliable electrical conductivity.
It supports the USB 2.0 specification.
This connector has a compact, space-saving surface mount design suitable for PCB applications.
This connector has 1 port.
It is suitable for use in mobile phones, GPS units, MP3 players, and various portable electronic devices.
The country of origin for this connector is China.
