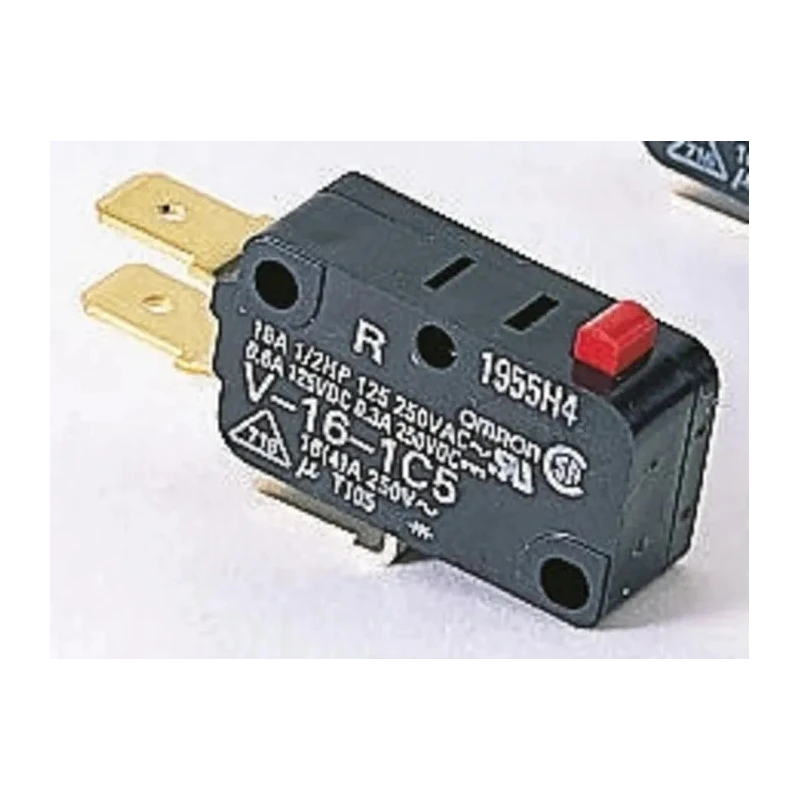

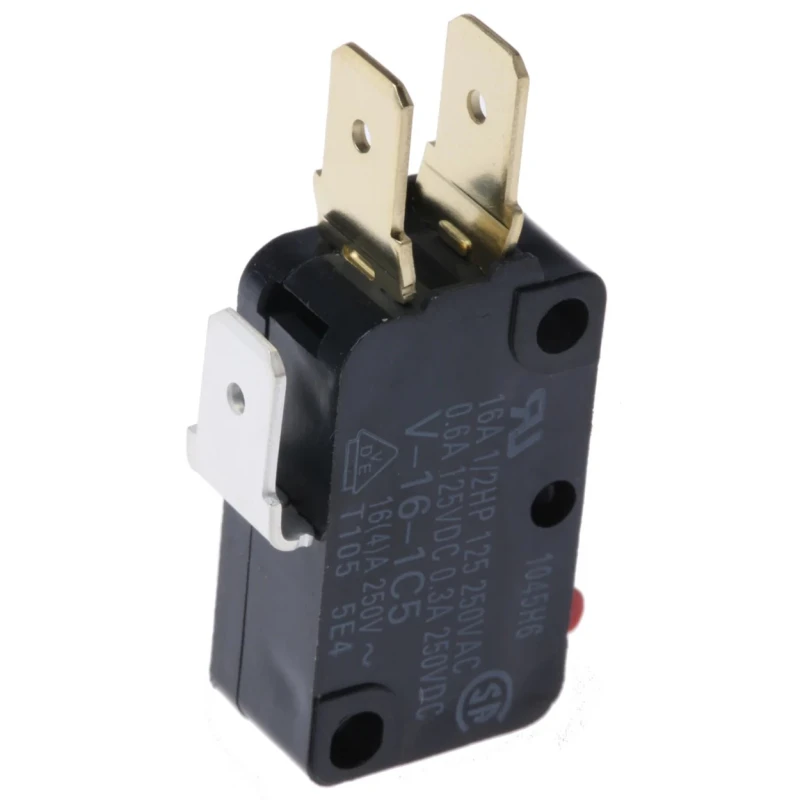

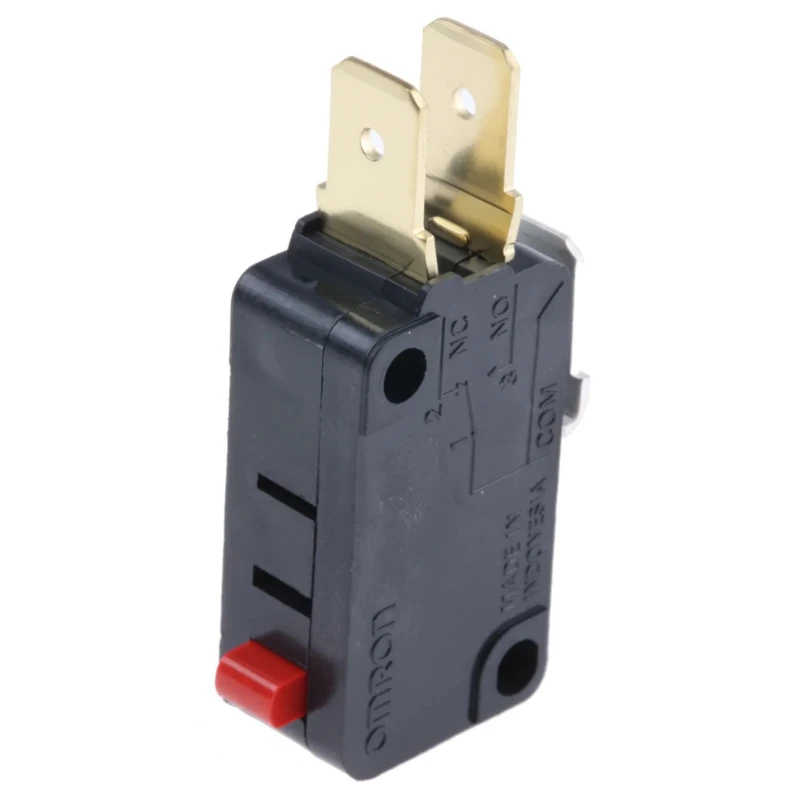

Omron Plunger Micro Switch, Tab Terminal, 16A, 250 V AC, SPDT, IP40 V-16-1C5

Omron V-16-1C5 plunger micro switch is a high-quality miniature micro switch designed for industrial and electrical applications requiring precise cursor and mechanical switching. It incorporates a tab terminal for quick and secure wiring and supports a 16A switching current at 250 V AC, making it suitable for a wide range of electrical and automation control systems.

The actuator is a durable plunger type, providing reliable engagement and responsiveness. Its housing is made from thermosetting resin and thermoplastic resin, offering excellent insulating properties and mechanical strength.

With a robust mechanical life of up to 50 million operations, this micro switch ensures exceptional durability and longevity. It operates efficiently within a temperature range of -25°C to 80°C and requires a low operating force of 1.96N, making it easy to actuate.

The V-16-1C5 features an SPDT (single pole double throw) contact configuration, suitable for applications that need switching between two circuits. Its IP40 rating protects against intrusion of solid particles larger than 1 mm, suitable for indoor electrical equipment without exposure to moisture.

This micro switch complies with RoHS environmental standards, ensuring it is free from hazardous substances. The product has recognized approvals including VDE, SEMKO, DEMKO, NEMKO, SETI, UL, and CSA, reinforcing its quality and safety credentials.

Compact miniature micro switch designed for precision applications. Plunger actuator type ensures reliable operation under varied conditions. Thermosetting and thermoplastic resin housing for durability and insulation. Mechanical life rated for 50 million operations guarantees long-term reliability.

Functions effectively in temperatures ranging from -25°C to 80°C. Operating force of 1.96N for smooth actuation with minimal user effort. Complies with RoHS standards ensuring environmental safety. Suitable for electrical, automation, and control systems requiring precise switching.

SPDT contact configuration enables single pole double throw switching capability. IP40 rating protects against solid objects larger than 1mm but no water protection.

This Micro Switch is ideal for use in industrial automation, electrical control panels, HVAC systems, and other commercial equipment requiring reliable and precise switching. Incorporate the Omron V-16-1C5 to enhance the performance and durability of your control systems.
