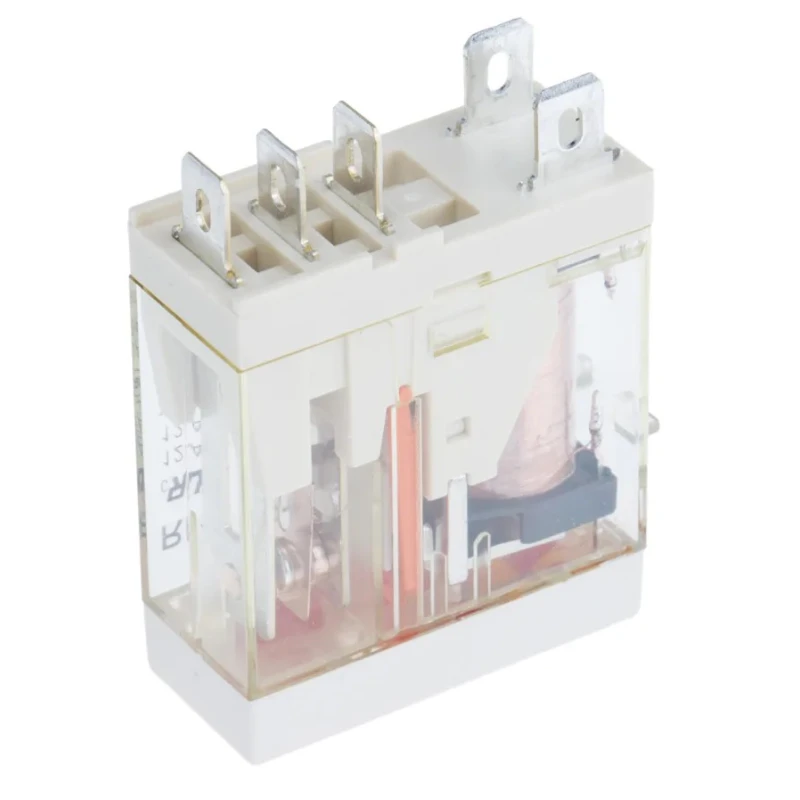

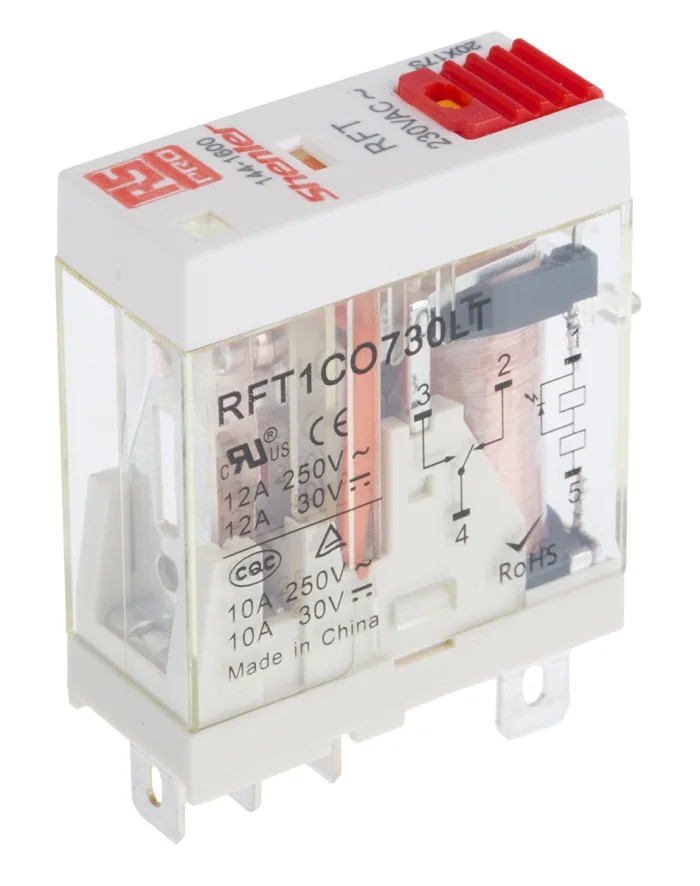

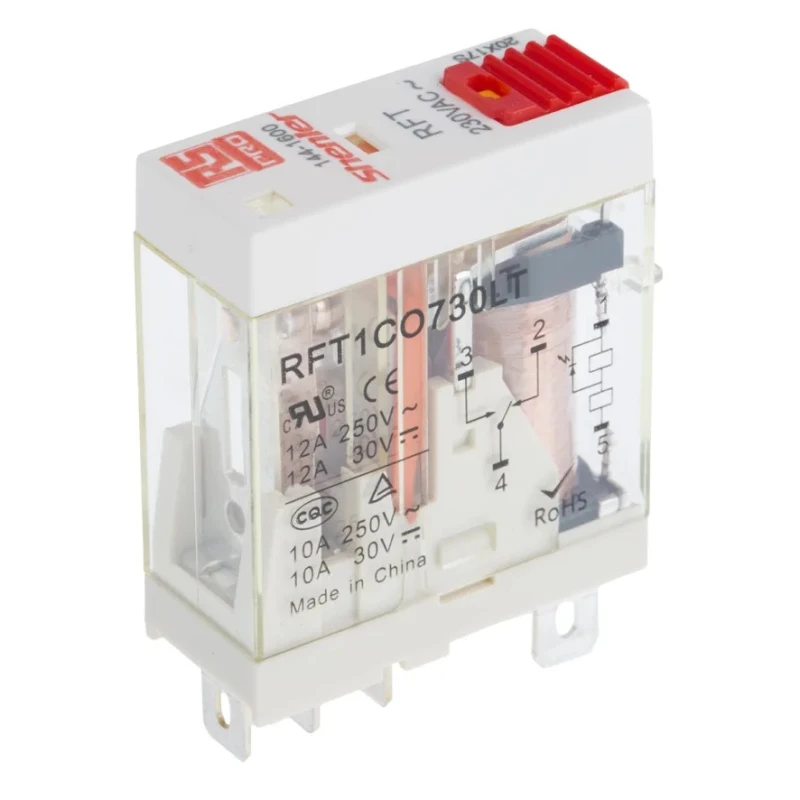

RS PRO Power Relay 230V AC Coil 12A Switching Current SPDT 144-1600

RS PRO 144-1600 power relay is a high-capacity, non-latching SPDT relay featuring a 230V AC coil and capable of switching currents up to 12A. Designed for industrial and electrical control applications, this relay provides reliable switching with silver alloy contacts and a robust coil resistance of 23 kΩ. The relay’s compact and slim size with dimensions of 29 mm length, 28 mm height, and 12.6 mm width facilitate easy integration onto printed circuit boards using its plug-in PCB pin terminals.

The relay operates efficiently within an ambient temperature range from -40°C to +55°C, making it suitable for demanding environments. It supports switching AC voltages up to 250 V and DC voltages up to 30 V while delivering a switching power capacity of 3 kVA for AC and 0.53 W for DC. Its electrical life is rated for an impressive 10 million cycles, ensuring long-term reliability in automation and control systems.

A clear see-through window cover aids in verifying internal functions, supported by color-coded buttons indicating AC (red) or DC (blue) current activation. This model complies with multiple international safety and environmental standards including CE, Care Quality Commission (CQC), Underwriters Laboratories (UL), and RoHS, ensuring safe and environmentally responsible operation.

Single pole, double throw (SPDT) contact configuration offers versatile switching capabilities. Coil power of 530 mW and coil resistance of 23 kΩ ensure efficient operation. Silver alloy contact material minimizes contact resistance and enhances durability.

Compact design with dimensions 29 mm x 28 mm x 12.6 mm suits PCB mounting. Operating temperature range from -40°C to +55°C allows use in various conditions. Switching power up to 3 kVA (AC) and 30 V DC supports diverse electrical loads.

Rated lifecycle of 10 million cycles assures extended reliability. Plug-in mounting type simplifies installation and replacement. Compliance with RoHS, CE, CQC, and UL standards guarantees quality and safety.

This RS PRO power relay is ideal for applications in industrial automation, electrical control panels, HVAC systems, manufacturing equipment, and general purpose switching in commercial installations. Its robust construction and certified safety approvals make it a dependable choice for electrical and electronics professionals.
