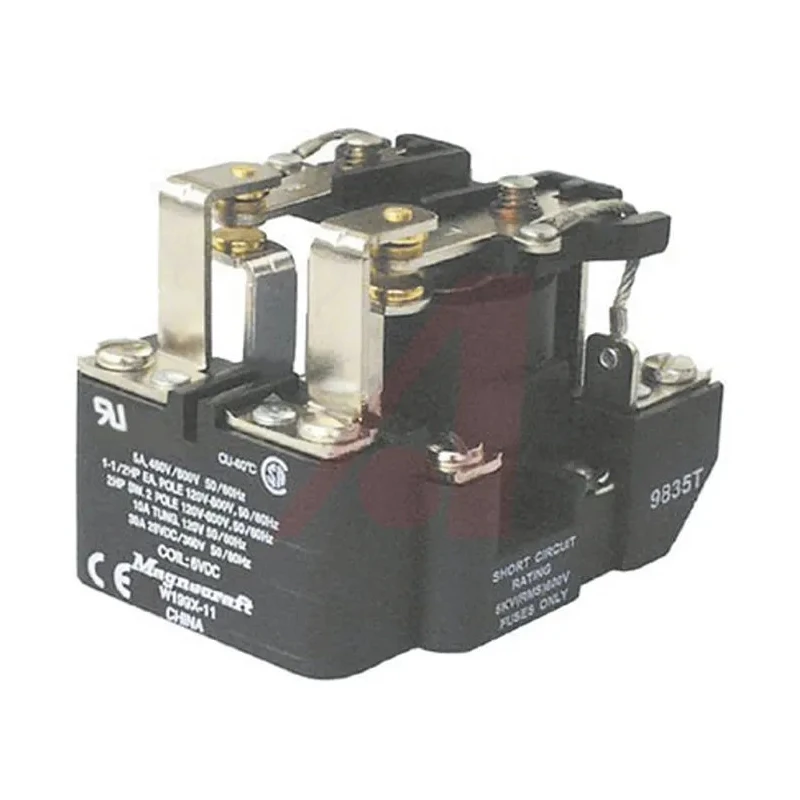

Schneider Electric Surface Power Relay 12V dc Coil, 40A Switching Current, DPDT 199X-12
Specifications
| Country of Origin | China |
|---|---|
| Brand | Schneider Electric |
| Height | 58.7mm |
| Length | 79.2mm |
| Model | 199X-12 |
| Width | 63.5mm |
| Mount Type | Surface |
| Contact Material | Silver Alloy |
| Series | 199X |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 40A |
| Terminal type | Screw |
| Standards/Approvals | UL, CSA |
| Coil Resistance | 70Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 28V dc |
| Switching AC Voltage | 600V |
| Coil Power | 4W |
| Switching Power | 2W |
Key Features
- Equipped with a 12V dc coil to ensure efficient operation.
- DPDT contact configuration enables double-pole double-throw switching functionality.
- Supports a high switching current of 40A suitable for heavy-duty power relay requirements.
- Designed for surface mounting with screw terminal type connections for secure installation.
- Operating temperature range from -40°C to 55°C ensures durability in varied environments.
- Constructed with silver alloy contacts to enhance conductivity and longevity.
- Complies with UL and CSA standards, confirming industrial quality and safety.
- Switching AC voltage rating up to 600V for broad electrical system compatibility.
Product Description
Schneider Electric 199X-12 Surface Power Relay features a 12V dc coil and a DPDT (double-pole double-throw) contact configuration, ideal for high-capacity switching tasks in industrial, electrical, automation, and manufacturing settings.
This open type, heavy-duty power relay from the 199 series offers robust construction with riveted contacts and an optional blowout magnet, enhancing arc extinction during operation.
With a switching current rating of 40A, it supports demanding power requirements safely and reliably. The relay's switching AC voltage is rated at 600V, while the switching DC voltage handles up to 28V, offering versatility across different power circuits.
Designed for surface mounting, it utilizes screw terminals enabling straightforward and secure connections. The relay operates efficiently with a coil resistance of 70Ω and a coil power consumption of 4W, maintaining energy efficiency.
The product measures 79.2mm in length, 63.5mm in width, and 58.7mm in height, providing a compact footprint for integration within control panels or industrial machines. This relay exceeds industry standards, with UL and CSA certifications guaranteeing quality, safety, and compliance.
Equipped with 12V dc coil voltage. DPDT contact configuration for flexible control. 40A switching current for heavy-duty applications. Surface mount type with screw terminal connectivity. Silver alloy contact material for enhanced durability.
Operating temperature ranges from -40°C to 55°C for reliable performance. Compact dimensions facilitate easy mounting. Complies with recognized safety standards UL and CSA. Designed as part of Schneider Electric's 199 series power relays.
This Schneider Electric surface power relay is suited for industrial automation, electrical control panels, HVAC systems, manufacturing equipment, and other commercial electrical installations requiring reliable and robust switching components.
Find high-quality relays and other electrical components in the Power Relays category at EnvMart for your professional and industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a switching current rating of 40A, making it suitable for heavy-duty applications.
This model operates with a coil voltage of 12V dc.
The relay measures 79.2mm in length, 63.5mm in width, and 58.7mm in height.
It features a DPDT (double-pole double-throw) contact configuration, allowing flexible control.
The maximum switching AC voltage rating is 600V, providing compatibility with various electrical systems.
The relay operates within a temperature range of -40°C to 55°C, ensuring reliability in diverse environments.
This model is designed for surface mounting and utilizes screw terminal connections for secure installation.
The coil resistance is 70Ω, which contributes to its energy efficiency during operation.
The contacts are constructed from silver alloy, enhancing conductivity and longevity.
It complies with UL and CSA standards, confirming its industrial quality and safety.
The coil power consumption is 4W, maintaining energy efficiency during operation.
This relay is suited for industrial automation, electrical control panels, HVAC systems, and manufacturing equipment.
