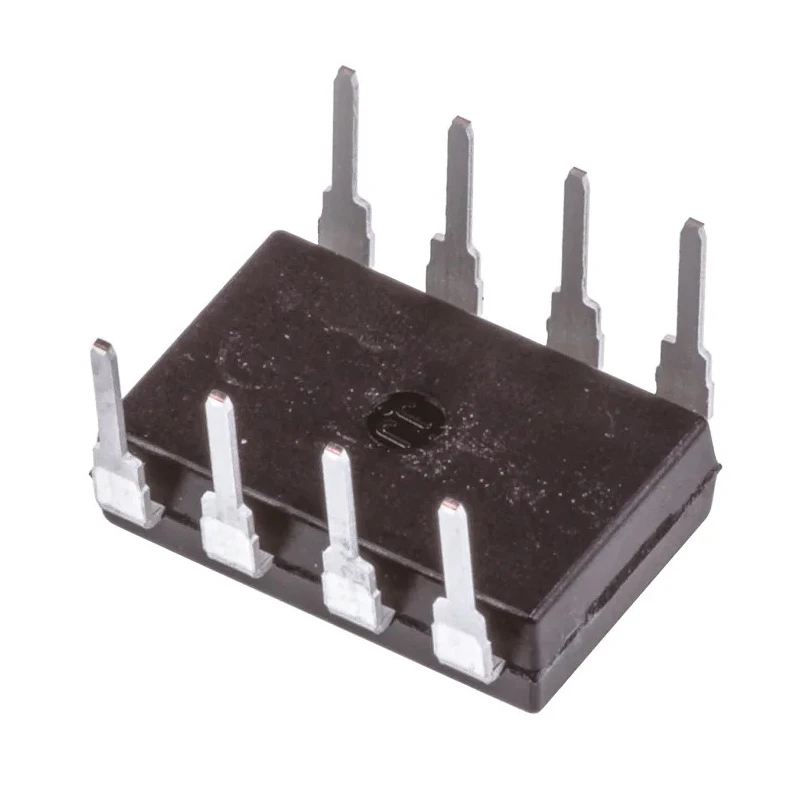

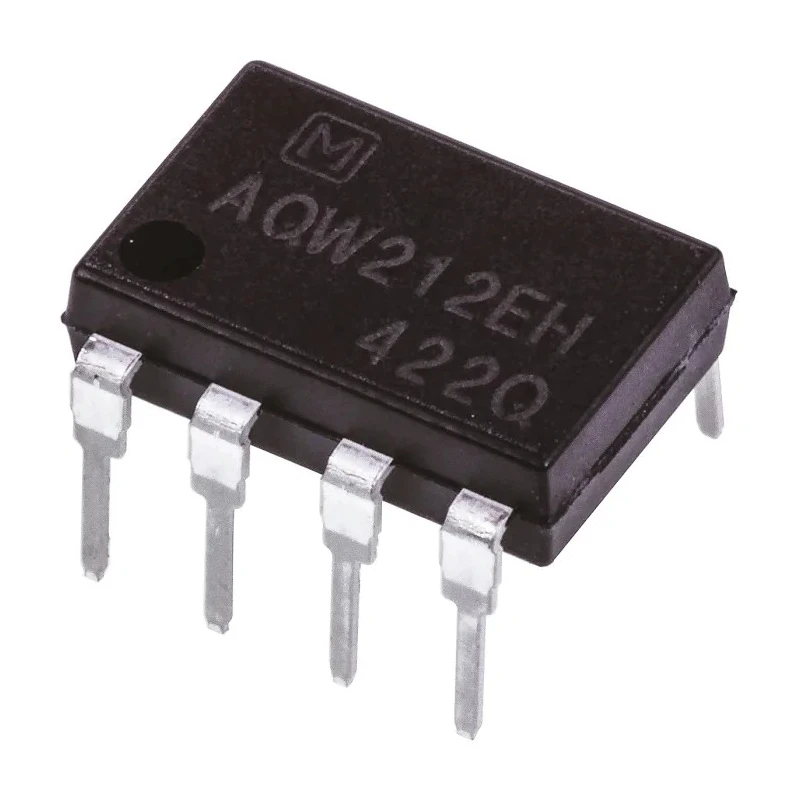

Panasonic AQW Series Solid State Relay 0.5 A Load PCB Mount 60 V Load 1.5V Control AQW212EH

Panasonic AQW212EH solid state relay is a reliable and efficient device designed for controlling low-level analog signals. With a maximum load current of 0.5 A and load voltage rating of 60 V, this PCB mount DIP-8 packaged relay incorporates a photoMOS output type providing ultra-low off-state leakage current of 1 microampere. Its compact dimensions of 9.9mm length, 6.4mm width, and 3.2mm height make it ideal for space-saving PCB assembly.

This relay features a dual-pole single-throw (DPST) contact configuration, providing stable switching capabilities in industrial and electronic applications. The device is engineered to operate efficiently across a wide temperature range from -40°C to 85°C, ensuring durability in varying environments.

Panasonic's AQW212EH incorporates an isolation voltage between coil and contacts rated at 5kV, offering superior electrical isolation required for sensitive electronic control circuits. Its low on-state resistance of 120 ohms minimizes power loss during operation. The photoMOS relay technology enables distortion-free handling of low analogue signals, ensuring accurate control in critical applications.

The relay is RoHS compliant and certified by UL and cUL, supporting environmentally conscious manufacturing and meeting stringent safety standards. It features through-hole terminal type and DIP-8 package style for easy installation on printed circuit boards.

Applications include control devices for modems, telecommunication systems, security equipment, and sensing apparatus. Its construction resists vibration and abrasion, extending operational lifespan in industrial settings.

Offers dual-pole single-throw (DPST) contact configuration for reliable switching. Features photoMOS output with low off-state leakage current of 1 microampere. Operates within a temperature range from -40°C to 85°C ensuring versatility.

Compact DIP-8 package measuring 9.9mm length, 6.4mm width, and 3.2mm height for PCB mounting efficiency. High isolation voltage of 5kV between coil and contacts enhances safety and performance. Low on-state resistance of 120 ohms facilitates efficient current flow.

Resistant to vibration and abrasion for industrial durability. Environmentally friendly construction compliant with RoHS standards. Suitable for applications including telecommunication, sensing equipment, security devices, and modems.

UL and cUL certified ensuring compliance with international safety standards. Explore more Panasonic Solid State Relays at EnvMart for industrial, electrical, telecommunication, and automation system needs.
