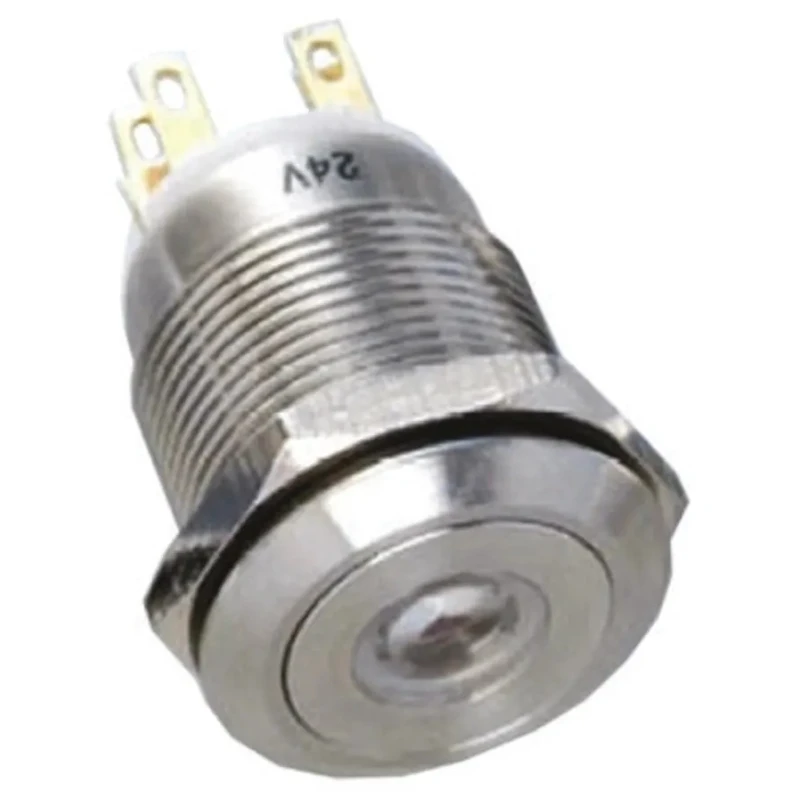

EOZ R Series Illuminated Push Button Switch Momentary Panel Mount SPDT Yellow LED IP65 250V ac R19FFSSPAGDY6



Category Push Button Switches Brand EOZ Condition New

Specifications

Country of Origin	France
Brand	EOZ
Model	R19FFSSPAGDY6
IP Rating	IP65
Mount Type	Panel
Series	R
Maximum Operating Temperature	55°C
Contact Configuration	SPDT
Switch Configuration	1 NO/1 NC
Minimum Operating Temperature	-20°C
Panel Cutout Size	19.2 mm
Terminal type	Solder
Standards/Approvals	RoHS
Pay online using	Or choose to pay later via bank transfer
RS Stock No.	690-3400Brand: EOZManufacturers Part No.: R19FFSSPAGDY6
LED Colour	Yellow
Switch Operation	Momentary
Actuator Colour	Silver
Actuator Style	Button
Switch Contact Current	5A
Contact AC Voltage	250V ac

Key Features

The switch is vandal resistant with IK09 impact protection corresponding to 10 joules impact energy.
It features a SPDT contact configuration with 1 NO/1 NC switch contacts rated for 5A at 250V AC.
The device is sealed to IP65 rating for total dust protection and limited water ingress protection.
The actuator is a silver button style with yellow LED illumination, offering excellent visibility when pressed.
Operating temperature ranges from -20°C to 55°C to suit various industrial environments.
The mounting style is designed for 19.2 mm panel cutouts, facilitating easy installation.
The terminal type is solder for secure electrical connections.
This switch is compliant with RoHS standards ensuring environmental safety.

Product Description

EOZ R19FFSSPAGDY6 is a robust illuminated push button switch from the R Series, designed for demanding industrial and commercial use. It features a momentary switch operation and a compact panel mount design with a 19.2 mm cutout diameter, suitable for rugged environments.

This switch integrates a vandal-resistant actuator made of durable materials with a silver button style and a yellow LED illumination, enhancing operator feedback in low-light settings. The switch is rated at 5A for 250V AC with a SPDT contact configuration offering both NO and NC contacts, making it versatile for control circuits.

It is IP65 rated, providing protection against dust ingress and low-pressure water jets from any direction, which makes it ideal for exposed public equipment such as kiosks, ticket machines, vending, access control systems, and factory machinery.

The R Series push button switches conform to RoHS standards, emphasizing environmental compliance. The device can operate reliably within temperatures ranging from -20°C to 55°C, making it suitable for a wide range of climates and industrial settings.

Vandal resistant with IK09 rating to withstand impacts up to 10 joules. Sealed IP65 for dust tight and water jet protection. Mounts into a 19.2 mm diameter panel cutout. SPDT switch configuration with 1 NO/1 NC contacts rated at 5A 250 V AC.

Illuminated yellow LED for clear indication when activated. Solder terminal type for secure connection. Operating temperature range from -20°C to 55°C. Complies with RoHS environmental standards.

Commonly used in industrial automation, electrical control panels, and public-facing equipment, the EOZ R19FFSSPAGDY6 push button switch provides durability, safety, and reliable performance in harsh conditions.
