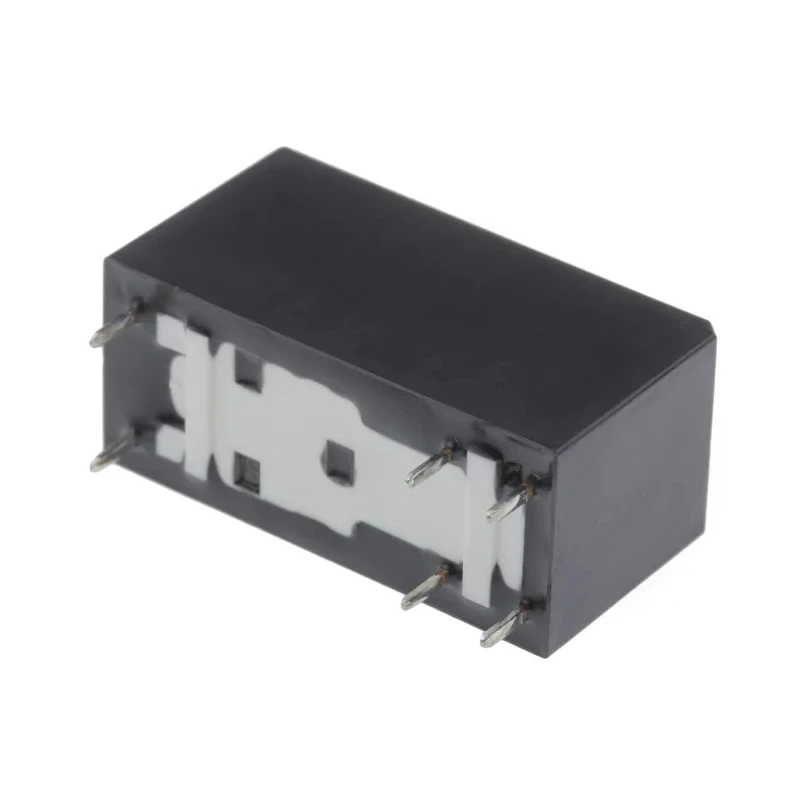

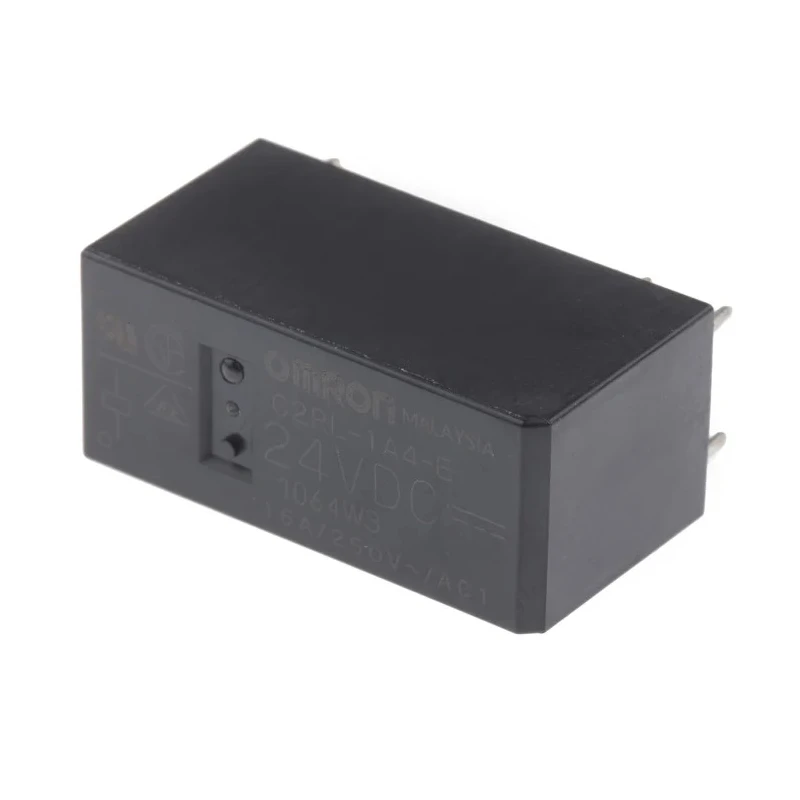

Omron Power Relay PCB Mount SPST 24V DC Coil 16A Switching Current G2RL-1A4-E DC24

Omron G2RL-1A4-E DC24 is a high-quality power relay designed for PCB mounting applications where efficient switching is required. Featuring a 24V DC coil and a robust 16A switching current capability, it is suitable for various industrial, automation, and electrical system uses.

This relay incorporates a SPST (single pole single throw) contact configuration with silver alloy contacts that provide excellent conductivity and durability. The relay supports switching voltages up to 440V AC and 300V DC, making it adaptable for both AC and DC circuit control.

Engineered for demanding environments, it operates reliably within a temperature range from -40°C up to a maximum of 85°C. The low profile design with a height of just 15.7mm, combined with a width of 12.7mm and length of 29mm, allows for compact PCB layouts without sacrificing performance.

The coil resistance of 1.4kΩ and power consumption of 400mW ensure energy-efficient operation. Its solder terminal type facilitates secure and permanent PCB mounting. The relay meets key safety and quality standards including VDE, IEC/EN 60079-15 and RoHS compliance, ensuring environmental and operational reliability.

The contact resistance rating of 100mΩ minimizes power loss and heat generation during operation. Furthermore, the relay features an impressive tracking resistance with CTI exceeding 250, enhancing safety in electrical insulation performance.

Recognized and certified by UL, CSA, and VDE, this Omron Power Relay is designed for use in industrial automation systems, control panels, HVAC equipment, manufacturing processes, and other demanding electrical applications where precision and reliability are essential.

SPST contact configuration for single pole single throw switching. PCB mount type with solder terminal connection for efficient installation. Coil resistance of 1.4kΩ and coil power consumption of 400mW. Switching AC voltage up to 440V and DC voltage up to 300V.

Operates reliably between -40°C and 85°C ambient temperatures. Compact dimensions of 15.7mm height, 12.7mm width, and 29mm length. Silver alloy contact material ensuring low contact resistance of 100mΩ. Compliant with VDE, IEC/EN 60079-15, and RoHS standards and approvals.

Tracking resistance with comparative tracking index (CTI) greater than 250. UL recognized, CSA certified, and VDE approved for industrial safety. Explore the comprehensive selection of high-performance relays like the Omron G2RL series at EnvMart for your industrial and electrical projects.
