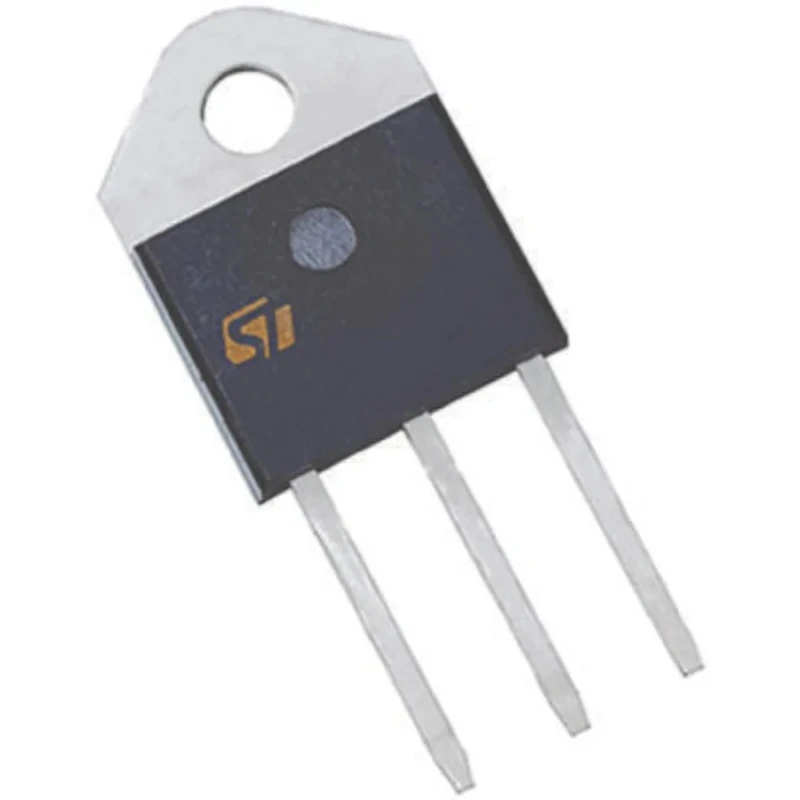

STMicroelectronics Through Hole 3-Pin TRIAC 800 V Gate Trigger 1.5 V TPDV840RG

STMicroelectronics TPDV840RG is a high-performance TRIAC designed for use in power electronics requiring reliable switching control. Featuring a through-hole mount package with 3 pins, this TRIAC offers exceptional voltage handling with an 800 V repetitive peak reverse voltage rating and a gate trigger voltage as low as 1.5 V for precise control in power switching circuits.

This component supports a rated average on-state current of 40 A and can handle surge currents up to 590 A, making it suitable for demanding industrial and consumer electronic applications. Its single configuration and TOP package type simplify mounting and integration into printed circuit boards.

Operating within a temperature range of -40°C to 125°C, the TPDV840RG maintains stable operation under diverse environmental conditions. The TRIAC is RoHS compliant, aligning with modern environmental standards. The low peak on-state voltage of 1.8 V reduces conduction losses and enhances efficiency.

Typical applications include light dimmers, motor speed controllers, and other AC power control devices in industrial, commercial, and residential electrical systems. This TRIAC is tailored for use in designs where reliable switching and high voltage handling are critical.

The device length and height, 15.5 mm and 12.85 mm respectively, enable compact electronic assemblies without compromising on electrical performance. Although the TRIAC is not qualified for automotive standards, it excels in general-purpose power control circuits.

The device offers a rated average on-state current of 40 A. It features a gate trigger current of 200 mA for precise activation control. This TRIAC supports a surge current rating of 590 A to handle transient loads. Designed for single configuration and packaged in TOP through-hole mount style.

Operating temperature ranges from -40°C to 125°C suitable for industrial environments. Its compact length and height are 15.5 mm and 12.85 mm respectively for efficient PCB layout. Complies with RoHS standards ensuring environmental safety.

Peak on-state voltage is maintained at 1.8 V to minimize power loss. Repetitive peak off-state current is very low at 0.02 mA for reduced leakage power. Explore the extensive range of semiconductor components on EnvMart for all your industrial and electronic component needs.
