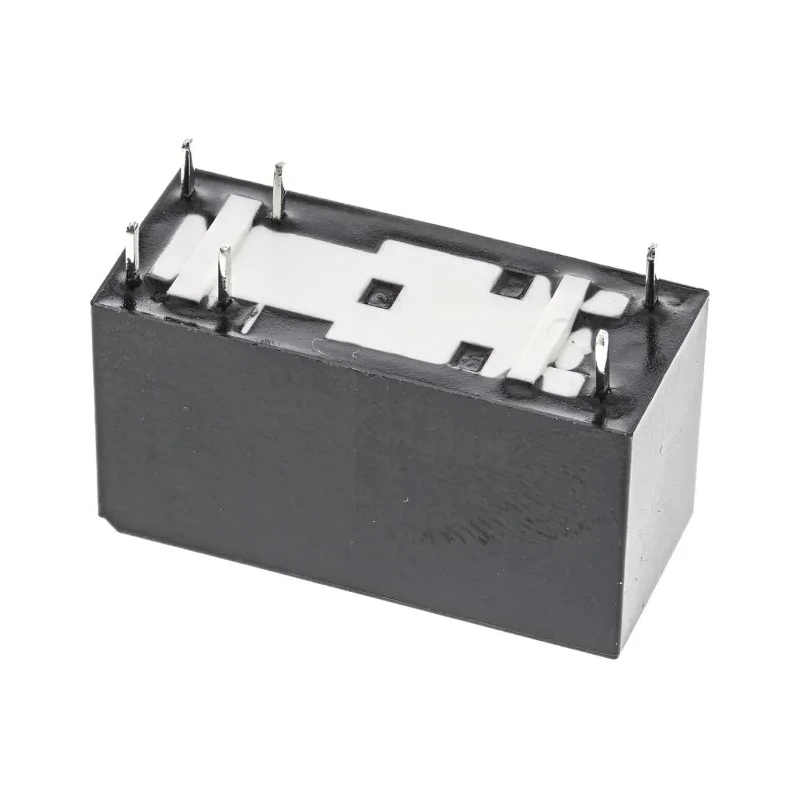

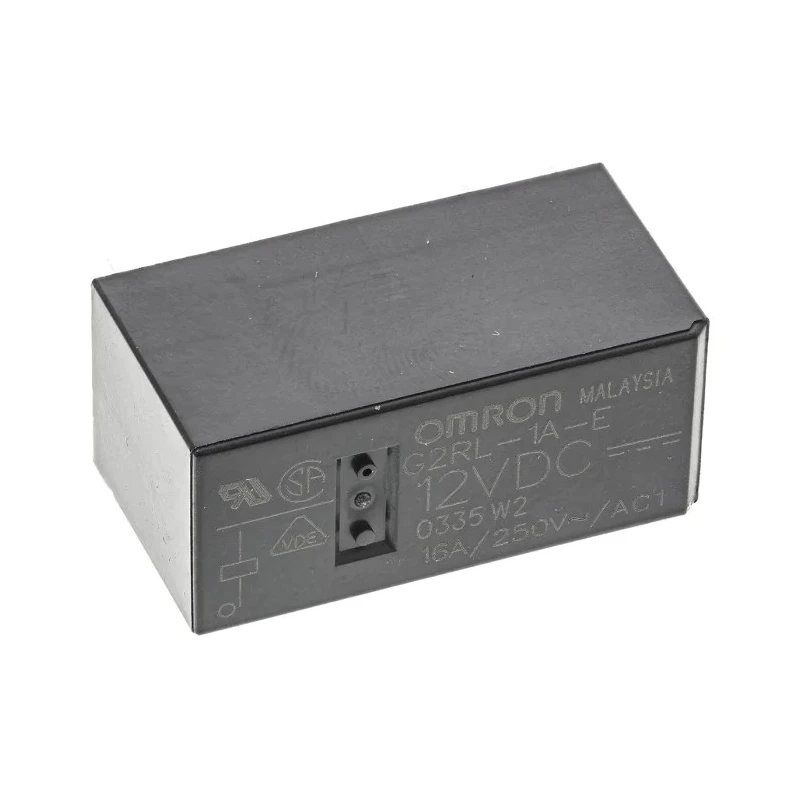

Omron PCB Power Relay, 12V DC Coil, 16A Switching Current, SPST G2RL-1A-E DC12

Omron G2RL-1A-E DC12 PCB Power Relay with 12V DC coil voltage and 16A switching current, featuring SPST contact configuration, ideal for industrial, electrical, automation, and signal conditioning applications.

This relay belongs to the G2RL series and is designed for PCB mounting with a through hole terminal type, offering a low profile construction with a height of only 15.7mm. Its silver alloy contacts deliver excellent conductivity and durability.

It supports switching of AC voltage up to 250V AC and is capable of switching power up to 4kVA. The coil resistance is specified at 360 ohms and the coil power consumption is 400mW, enabling efficient operation with low power draw.

The relay is certified under multiple standards including CSA, EN, IEC, RoHS, UL, and VDE, ensuring high reliability and safety compliance. It operates effectively in a temperature range from -40°C to 85°C, suitable for harsh industrial environments.

Dimensions of the component are 29mm in length, 12.7mm in width, and 15.7mm in height, making it compact and space-saving for PCB designs. The device is designed with a high tracking resistance (CTI>250), reducing the risk of electrical faults.

This power relay is widely used in electronics manufacturing, automation systems, electrical control panels, industrial machinery, HVAC equipment, and other control applications requiring robust and dependable switching capabilities.

Compact low profile relay with maximum height of 15.7mm optimized for PCB installation. Features a silver alloy contact material ensuring reliable electrical connection. Switching AC voltage rating up to 250V AC suitable for various applications.

Wide operating temperature range from -40°C to 85°C for durability in harsh environments. Coil resistance of 360 ohms and coil power of 400 mW for efficient operation. Compliant with major international standards including CSA, EN, IEC, RoHS, UL, and VDE.

Terminal type is through hole providing secure mechanical and electrical mounting on PCB. Housing dimensions of 29mm length and 12.7mm width ensuring space-efficient design. High tracking resistance (CTI>250) to prevent electrical tracking and enhance safety.
