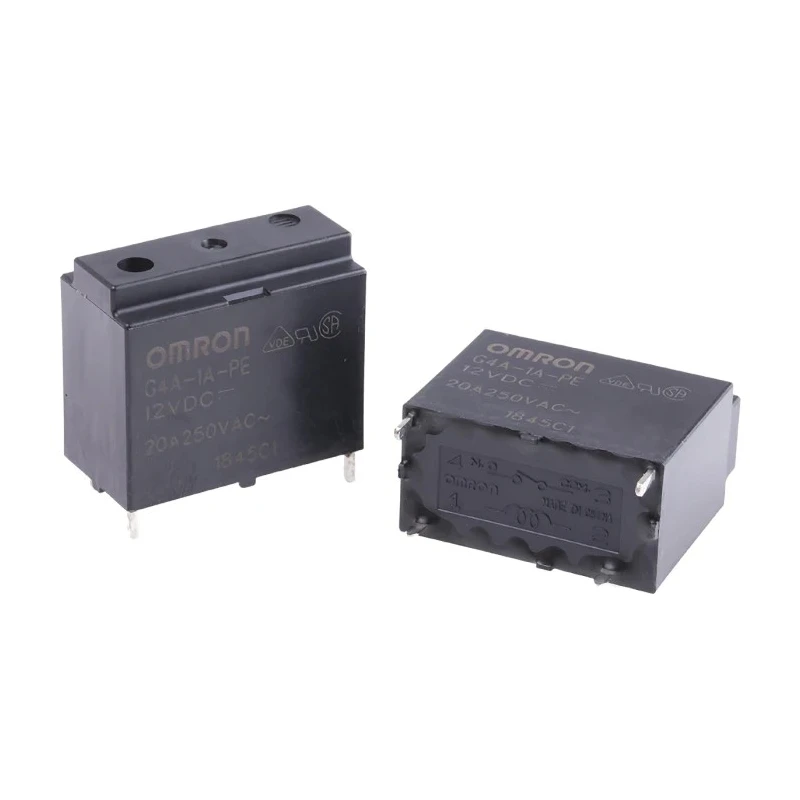

Omron PCB Power Relay 12V dc Coil 20A Switching Current SPST G4A-1A-PE DC12
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Height | 26.8mm |
| Length | 30.5mm |
| Model | G4A-1A-PE DC12 |
| Width | 16mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G4A |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -20°C |
| Switching Current | 20A |
| Terminal type | Through Hole |
| Standards/Approvals | CSA, RoHS, UL, VDE |
| Coil Resistance | 160Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 250V ac |
Key Features
- Operates with a coil voltage of 12V dc ensuring efficient switching functions.
- Designed with a single pole single throw (SPST) contact configuration for straightforward control.
- Capable of handling a switching current of 20A and switching AC voltage up to 250V ac.
- Features through-hole terminal type and PCB mount suitable for various electronic assembly applications.
- Constructed with high-grade silver alloy contact material for enhanced conductivity and durability.
- Rated for operating temperatures between -20°C and 60°C for versatile environment usage.
- Compact dimensions of approximately 30.5mm length, 16mm width, and 26.8mm height support space-constrained installations.
- Complies with CSA, RoHS, UL, and VDE standards ensuring safety and environmental compliance.
Product Description
Omron G4A-1A-PE DC12 PCB Power Relay is engineered for industrial and automation applications requiring dependable power switching with a 12V direct current coil. It features a SPST contact configuration capable of handling a continuous switching current of 20A and switching AC voltages up to 250V, making it well suited for control circuits and motor switching tasks.
The relay’s through-hole terminal design and PCB mount compatibility allow straightforward integration into printed circuit boards for industrial, electrical, and manufacturing equipment. Its compact size (30.5mm length, 16mm width, 26.8mm height) ensures it fits well in constrained spaces while maintaining robust switching performance.
Constructed with silver alloy contacts, this relay assures excellent electrical conductivity and durability, even under frequent switching conditions and high surge currents up to 80A. Rated for operating temperatures from -20°C to 60°C, it maintains stable operation in a broad range of environmental conditions.
Compliance with recognized safety and quality standards such as CSA, RoHS, UL, and VDE confirms the product’s suitability for global application in electronics, industrial automation, HVAC systems, and motor control circuits.
Operates at 12V dc coil voltage for efficient relay actuation. SPST contact configuration for simple switching control. Supports 20A switching current and 250V ac switching voltage. PCB mount with through-hole terminals for easy integration.
Durable silver alloy contact construction ensures long life. Rated temperature range from -20°C to +60°C for versatility. Compact form factor (30.5 x 16 x 26.8 mm) for space saving. Certified by CSA, RoHS, UL, and VDE standards.
Designed for motor switching with 80A surge current capability.
This Omron G4A-1A-PE DC12 Power Relay is an essential component for demanding industrial automation, control panels, and equipment requiring reliable power switching. Explore EnvMart’s extensive catalog for additional relays and electrical components to complete your assembly and operational needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this relay is 12V DC, ensuring efficient actuation for power switching applications.
It can handle a maximum switching current of 20A, making it suitable for various control circuits.
This model features a single pole single throw (SPST) contact configuration for straightforward control.
The relay is capable of switching AC voltages up to 250V AC, suitable for various applications.
The dimensions of this relay are approximately 30.5mm in length, 16mm in width, and 26.8mm in height.
The contacts are constructed from high-grade silver alloy, which enhances conductivity and durability.
It is rated for operating temperatures between -20°C and 60°C, allowing for versatile usage in various environments.
The G4A-1A-PE DC12 relay features a PCB mount with through-hole terminals for easy integration into printed circuit boards.
It complies with CSA, RoHS, UL, and VDE standards, ensuring safety and environmental compliance.
This model can handle surge currents up to 80A, making it suitable for motor switching applications.
It is designed for industrial automation, control panels, and equipment requiring reliable power switching.
The coil resistance of the G4A-1A-PE DC12 relay is 160Ω, which is relevant for its operation.
