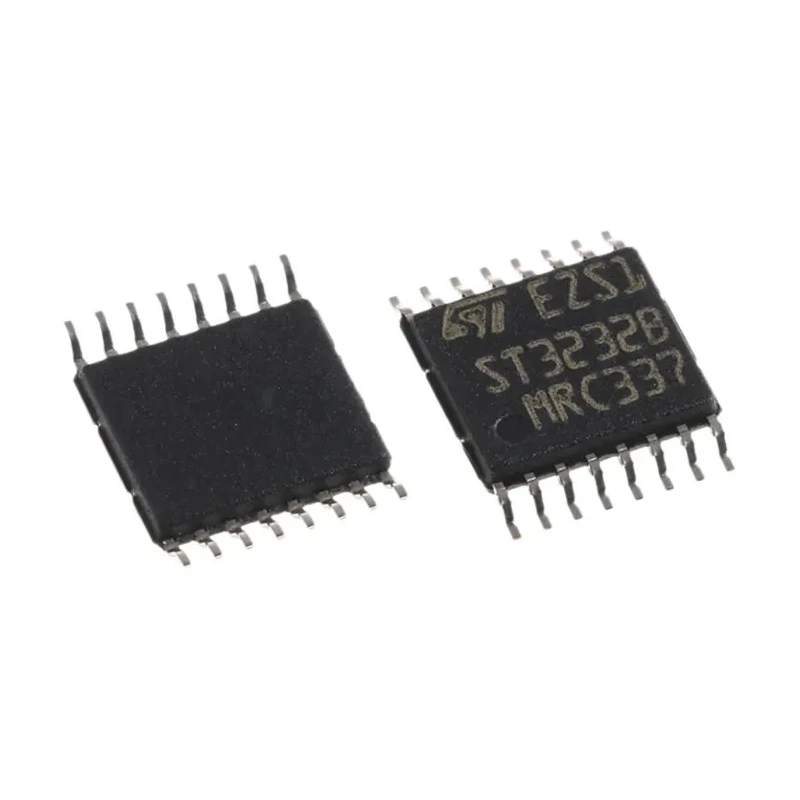

STMicroelectronics 2-Channel CMOS/TTL Line Transceiver, Differential, 16-Pin TSSOP ST3232BTR
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.2mm |
| Length | 5.1mm |
| Model | ST3232BTR |
| Width | 4.5mm |
| Mount Type | Surface |
| Output type | Differential |
| Series | ST3232B |
| Input Type | Single Ended |
| Maximum Operating Temperature | 85°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| IC Type | Line Transceiver IC |
| Number Of Channels | 2 |
| Pin Count | 16 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | CMOS/TTL |
| Logic Function | Line Transceiver |
| Minimum Supply Voltage | 3V |
| Maximum High Level Output Current | -1mA |
| Maximum Propagation Delay Time @ CL | 200ns |
| Supply Current | 2mA |
| Maximum Low Level Output Current | 1.6mA |
Key Features
- Supports 3V to 5.5V supply voltage range.
- Differential output with CMOS/TTL logic compatibility.
- Operates from -40°C to 85°C for industrial environments.
- Compact 16-pin TSSOP surface mount package with low profile.
- Maximum propagation delay time of 200ns at capacitive load.
- Low supply current consumption of 2mA for efficient operation.
- Single-ended input and differential output configuration.
- Ideal for RS-232 line driver and receiver applications.
Product Description
STMicroelectronics ST3232BTR is a precision 2-channel line transceiver IC designed for RS-232 communication systems. This device utilizes CMOS/TTL logic family technology to provide reliable differential output signals in a compact 16-pin TSSOP surface mount package.
The transceiver supports operation over a wide supply voltage range from 3V up to 5.5V, making it suitable for varied industrial and electronic system requirements. Its single-ended input and differential output configuration enable signal integrity in data transmission, with a maximum propagation delay time of 200 nanoseconds at typical capacitive load conditions.
Operating temperature range spans from -40°C to 85°C, ensuring robust performance under various environmental conditions typically encountered in industrial, manufacturing, and electronic instrumentation environments.
The ST3232BTR features low supply current consumption of 2mA, contributing to energy-efficient designs. Its physical dimensions provide a low profile with a package height of 1.2mm, length of 5.1mm, and width of 4.5mm, optimized for compact PCB layouts.
This line transceiver IC is widely used in communication equipment, serial interface modules, and embedded system designs requiring reliable line driver and receiver functionalities compliant with RS-232 standards.
This device facilitates two channels for simultaneous data transmission and reception. Suitable for applications in industrial automation, embedded systems, and electronic communication interfaces. Meets surface mount technology requirements for modern PCB assembly.
The package and pin configuration enable straightforward integration into existing circuit designs. Explore more semiconductor and interface IC solutions at EnvMart to enhance your electronic design projects with trusted components.
Explore more products in our Line Interface ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a supply voltage range from 3V to 5.5V.
It operates within a temperature range of -40°C to 85°C, suitable for industrial environments.
This line transceiver supports two channels for simultaneous data transmission and reception.
The maximum propagation delay time is 200 nanoseconds at typical capacitive load conditions.
It provides a differential output, ensuring signal integrity in data transmission.
The ST3232BTR comes in a compact 16-pin TSSOP package with dimensions of 5.1mm length, 4.5mm width, and 1.2mm height.
It has a low supply current consumption of 2mA, contributing to energy-efficient designs.
This model utilizes a single-ended input configuration.
It is compatible with CMOS/TTL logic families.
It is widely used in communication equipment, serial interface modules, and embedded systems requiring RS-232 line driver and receiver functionalities.
The country of origin for this model is India.
The maximum high-level output current is -1mA.
