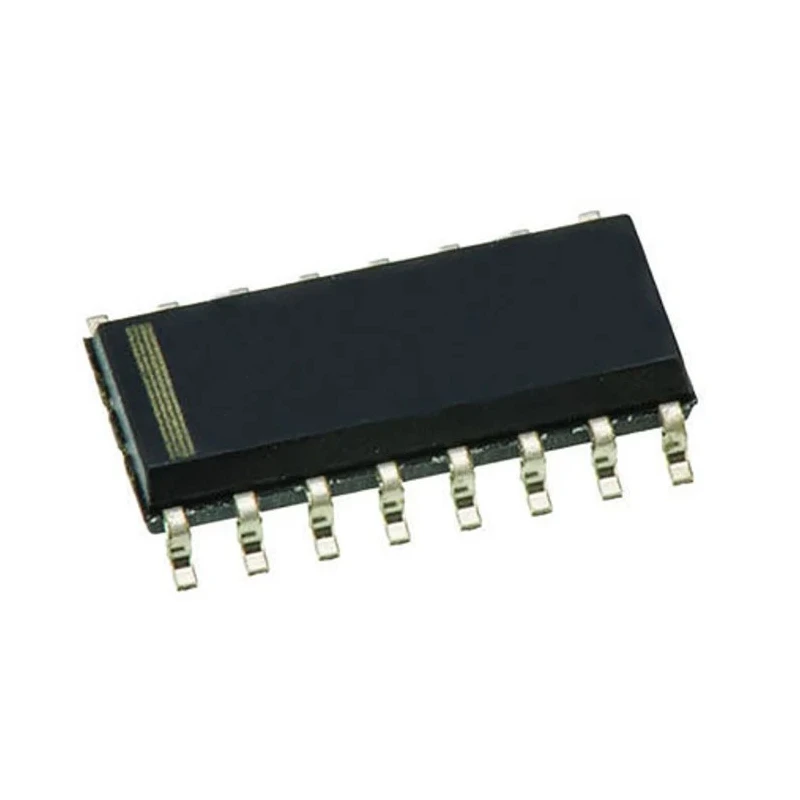

STMicroelectronics 2-Channel Line Transceiver CMOS/TTL, 16-Pin SOP, Surface Mount ST202BDR
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.75mm |
| Length | 10mm |
| Model | ST202BDR |
| Width | 4mm |
| Mount Type | Surface |
| Output type | CMOS/TTL |
| Series | ST202B |
| Input Type | Single Ended |
| Maximum Operating Temperature | 85°C |
| Package Type | SOP |
| Minimum Operating Temperature | -40°C |
| IC Type | Line Transceiver IC |
| Number Of Channels | 2 |
| Pin Count | 16 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | CMOS/TTL |
| Logic Function | Line Transceiver |
| Minimum Supply Voltage | 4.5V |
| Maximum Propagation Delay Time @ CL | 100μs |
| Supply Current | 4mA |
Key Features
- Operates between 4.5V and 5.5V supply voltage range.
- Features two independent line transceiver channels.
- Comes in a 16-pin SOP surface-mount package.
- Maximum propagation delay time is 100 microseconds at capacitive load.
- Operating temperature range from -40°C to 85°C.
- Low power consumption with supply current of 4mA.
- Supports CMOS and TTL logic input and output levels.
- Compact dimensions of 10mm length, 4mm width, and 1.75mm height.
Product Description
STMicroelectronics ST202BDR is a 2-Channel Line Transceiver IC designed with CMOS/TTL logic families and housed in a 16-Pin SOP surface-mount package. It operates from 4.5V to 5.5V supply voltage, delivering reliable signal transmission with a maximum propagation delay of 100 microseconds at capacitive loads.
The device supports single-ended inputs and CMOS/TTL outputs, ensuring compatibility with a wide range of digital circuits. Its industrial temperature rating from -40°C to 85°C enables use in harsh environments.
With a supply current of only 4mA, it is energy-efficient, making it suitable for low-power embedded applications. The compact 10mm by 4mm package dimensions facilitate integration in dense circuit boards.
The ST202BDR belongs to the ST202B series of RS-232 line drivers and receivers, providing a reliable two-channel interface for serial communication. It is ideal for industrial, electronic equipment, telecommunications, and embedded system applications where robust line transceivers are necessary.
This line transceiver supports 2 independent channels for communication. It is designed for surface mounting on PCBs with a 16-pin SOP package. Logic family compatibility includes CMOS and TTL levels. Wide supply voltage operation from 4.5 to 5.5 Volts.
Operating temperature extends from -40 to 85 degrees Celsius for durability. Low supply current of 4 milliamps enhances power efficiency. Compact physical dimensions suitable for space-sensitive applications. Typical propagation delay of 100 microseconds ensures timely data transfer.
No automotive certification limits usage in automotive-specific environments.
It suits electronic designers and engineers requiring reliable line interface ICs for communication protocols. Explore more STMicroelectronics semiconductor products and related Line Interface ICs on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates between a supply voltage range of 4.5V to 5.5V.
It supports two independent line transceiver channels for communication.
The maximum propagation delay time is 100 microseconds at capacitive load.
The dimensions of this unit are 10mm in length, 4mm in width, and 1.75mm in height.
It supports CMOS and TTL logic input and output levels.
The supply current is 4mA, which contributes to its low power consumption.
It has an operating temperature range from -40°C to 85°C.
This line transceiver comes in a 16-pin SOP surface-mount package.
It utilizes single-ended inputs for its operation.
Yes, its industrial temperature rating enables use in harsh environments, from -40°C to 85°C.
The country of origin for this product is India.
It is suitable for applications in industrial, electronic equipment, telecommunications, and embedded systems.
