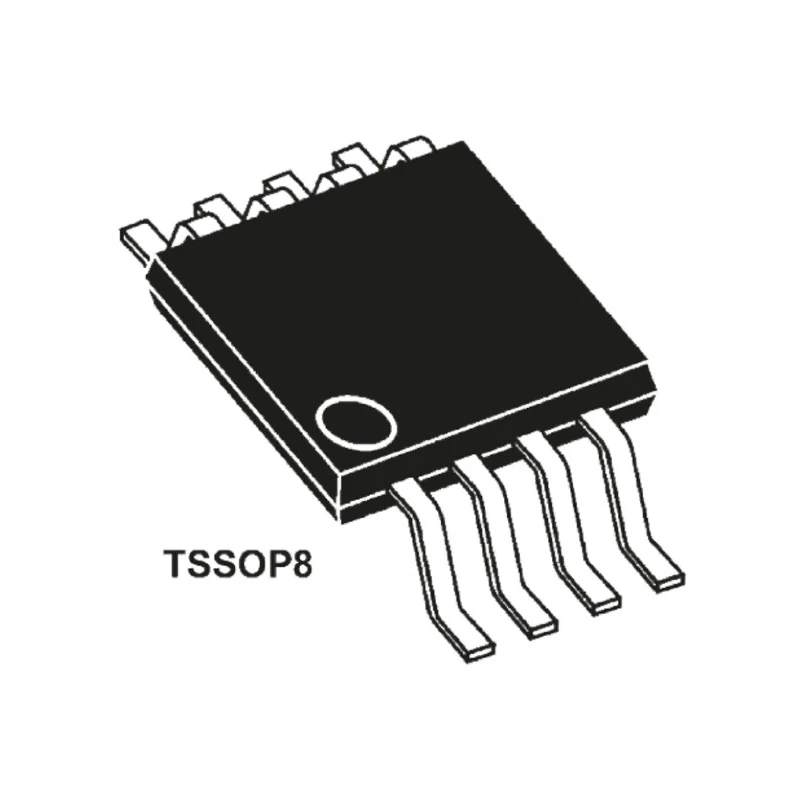

STMicroelectronics 16 kB Serial EEPROM Surface Mount 8-Pin TSSOP 1MHz 1.8-5.5V M24C16-RDW6TP

STMicroelectronics M24C16-RDW6TP is a 16 kB Serial Electrically Erasable Programmable Read-Only Memory (EEPROM) designed for surface mount applications. Featuring an 8-pin Thin Shrink Small Outline Package (TSSOP), this device supports Serial-I2C communication interface with a maximum clock frequency of 1 MHz, facilitating reliable and efficient data access in embedded systems.

This EEPROM offers a memory organization of 2K x 8 bits, providing 16 kB storage capacity suitable for configuration data, calibration constants, or small data logs. It operates over a supply voltage range from 1.8V up to 5.5V, enabling compatibility with low voltage digital circuits while maintaining robust performance.

The device assures a maximum random access time of 900 ns, allowing rapid read/write cycles essential for time-sensitive industrial and automotive applications. It is compliant with the automotive standard AEC-Q100, ensuring its durability and quality for use in demanding environments.

Physically, the EEPROM measures 3.1 mm in length, 1.69 mm in width, and has a height of 1.2 mm, making it compact and suitable for high-density PCB layouts. It features a data retention capability of 200 years that guarantees long-lasting memory stability, critical for archival and industrial control applications.

With a supply current of only 3 mA and an operational temperature range between -40°C and 85°C, this component is optimized for power-sensitive and harsh environment applications such as automotive electronics, industrial automation, consumer electronics, and instrumentation.

The STMicroelectronics M24C16-RDW6TP enhances design efficiency with its surface mount package and is compatible with all standard I2C bus modes, making it ideal for a wide range of industrial, laboratory, automotive, and commercial electronics projects.

Offers 16 kB memory size with 2K x 8 bit organization. Operates with supply voltage range of 1.8V to 5.5V. Has a maximum random access time of 900 ns for fast read/write operations. Supports automotive standard AEC-Q100 for reliability.

Compact dimensions with 3.1mm length, 1.69mm width, and 1.2mm height. Surface mount device suitable for efficient PCB integration. Data retention period is 200 years ensuring long-term data preservation. Low supply current of 3 mA for power-efficient operation.

Operating temperature range from -40°C to 85°C for versatile environmental compatibility. Explore STMicroelectronics products and other EEPROM components for superior electronic designs on EnvMart.
