Omron Panel Power Relay 6V DC Coil 30A Switching Current SPST G7L-1A-T DC6

Omron G7L-1A-T DC6 Panel Power Relay features a 6V DC coil with a quick connect terminal design, ideal for panel mounting applications. It offers reliable switching with a Single Pole Single Throw (SPST) contact configuration and a high switching current capacity of 30A. The relay is engineered to withstand harsh operating environments, functioning within -25°C to 60°C temperature limits. With compact dimensions of 68.5 mm in length, 47 mm in height, and 33.5 mm in width, it fits efficiently into control panels and automation systems.

Constructed with silver alloy contacts, this relay ensures excellent electrical conductivity and long-term durability. It supports switching AC voltage up to 250V AC and employs flame-resistant UL94V-0 insulation materials enhancing safety and reliability during operation. The relay complies with important international standards including RoHS, UL, CSA, IEC, and TUV, supporting its use in commercial and industrial settings.

This product accommodates momentary voltage drops up to 50% of the rated voltage without failing, which enhances operational stability. It is compatible with DIN rail or surface sockets and relay mounting clips available separately, enabling versatile installation options. The coil resistance of 18.9Ω and coil power of 1.9W contribute to its efficient electrical performance.

Widely used in industrial automation, electrical panels, HVAC control systems, manufacturing equipment, and other commercial electrical applications, this panel power relay offers robust performance and reliability.

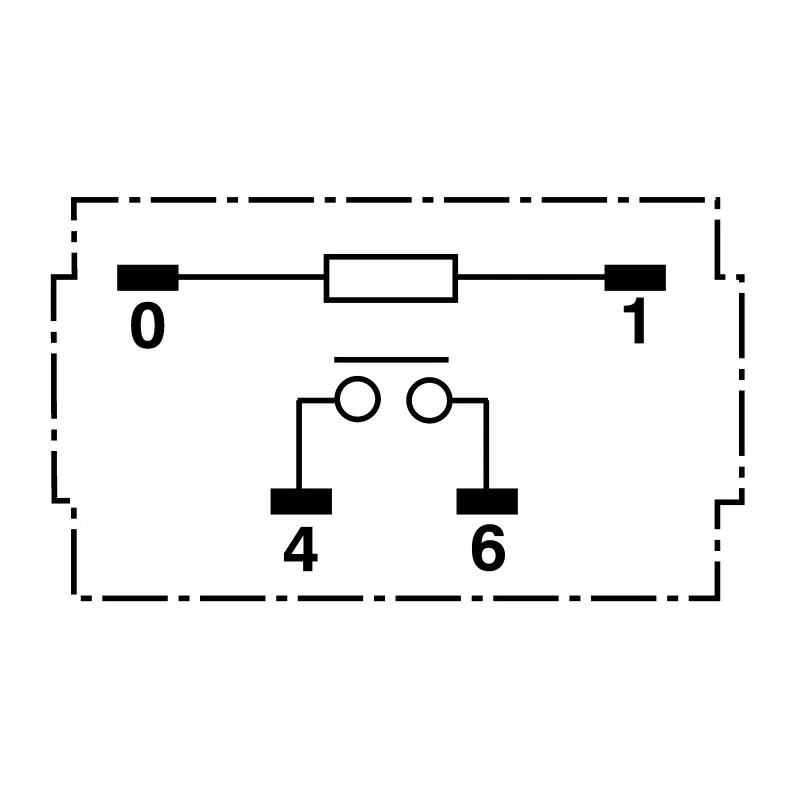

Equipped with 6V DC coil suitable for panel mounting. Single Pole Single Throw (SPST) contact configuration for reliable switching. High switching current capacity of up to 30A. Quick connect terminal type enables easy and fast installation.

Operational temperature range from -25°C to 60°C. Compact dimensions making it suitable for various control panels. Silver alloy contacts ensure conductivity and durability. Compliance with RoHS, UL, CSA, IEC, and TUV standards.

Coil resistance of 18.9Ω and coil power of 1.9W. Resistant to momentary voltage drops up to 50% of rated voltage. Explore a wide range of Power Relays and related electrical components on EnvMart for dependable industrial and commercial electrical solutions.
