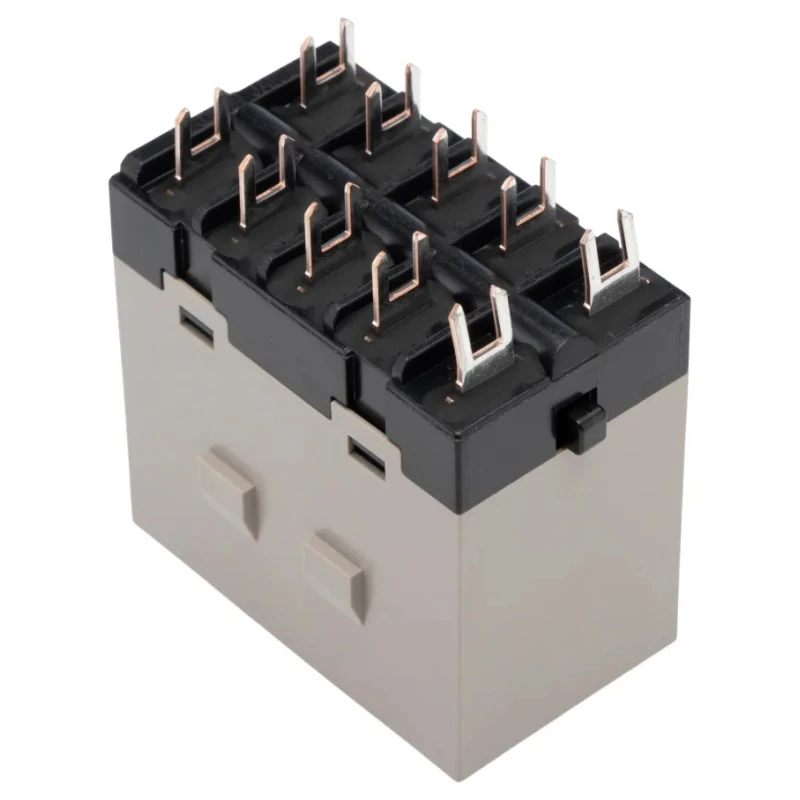

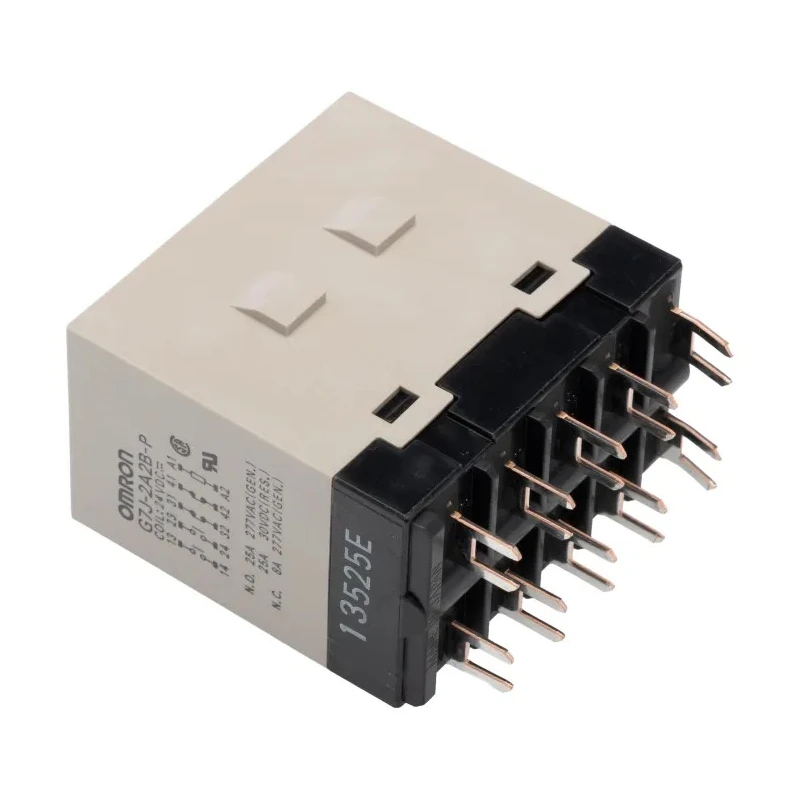

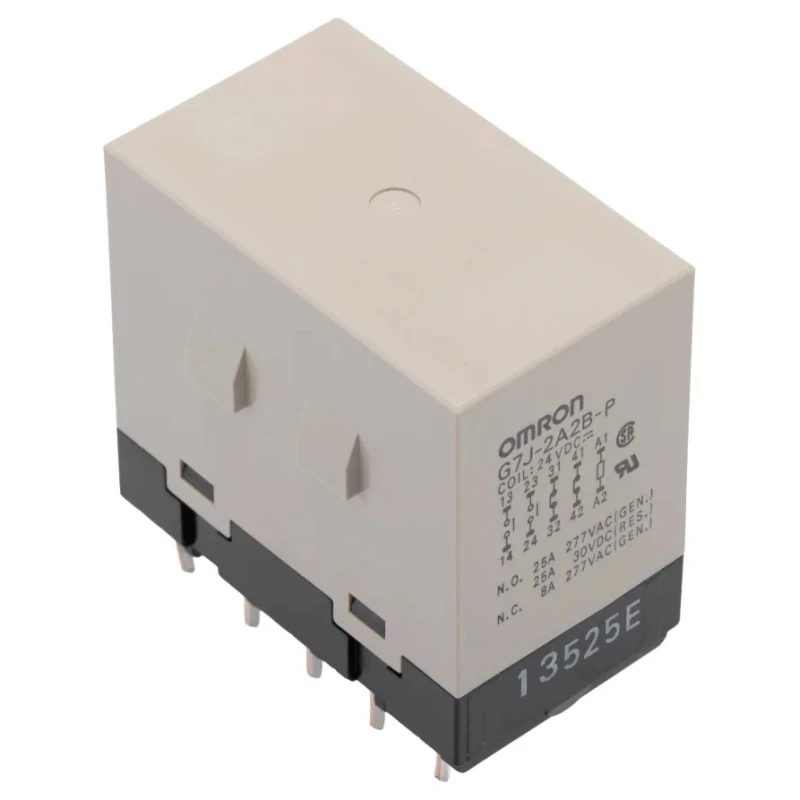

Omron PCB Power Relay 24V dc Coil 25A Switching Current DPST-NO DPST-NC G7J-2A2B-P 24VDC

Omron G7J-2A2B-P 24VDC PCB Power Relay is a dependable electromechanical device designed for control and power distribution on printed circuit boards within industrial environments. Its 24V DC coil voltage and 2W coil power consumption ensure low input power and heat generation, enabling efficient switching operations.

This relay features a double-pole single-throw configuration with both normally open and normally closed contacts (DPST-NO, DPST-NC), allowing versatile switching of AC loads up to 240V and 25A current capacity. The silver alloy contacts provide enhanced conductivity and durability, with a low contact resistance of 100 milliohms to minimize voltage drop during operation.

Designed for PCB mounting with through-hole terminals, the relay simplifies integration into industrial automation panels, electrical assemblies, HVAC control modules, and manufacturing line control systems. It operates reliably across a temperature range from -25°C to +60°C, suitable for a wide range of indoor industrial conditions without additional thermal management.

Safety and compliance are assured with CSA and UL approvals, facilitating use in certified electrical installations and adhering to regulatory standards. The coil resistance of 288 ohms defines its current draw at 24V DC, guiding control circuit driver selection.

With compact dimensions of 51.5mm length, 33.5mm width, and 51mm height, this relay fits space-constrained assemblies while delivering robust performance. Typical applications include motor control starters, power distribution boards, vehicle test rigs, and machine control in automation systems.

Compact electromechanical relay with double-pole switch configuration. Low power 24V DC coil with 2W consumption reduces heat generation. High current switching capacity of 25A supports heavy AC loads. Silver alloy contacts provide reliable conductivity and long life.

Wide operating temperature range from -25°C to 60°C. PCB mounting type enables easy integration in industrial control panels. CSA and UL safety approvals ensure installation compliance. Low contact resistance of 100mΩ minimizes power loss during switching.

Coil resistance of 288Ω determines control current requirements.

This Omron power relay is well-suited for industrial automation, laboratory equipment, manufacturing control panels, HVAC systems, and commercial electrical assemblies. It delivers dependable switching performance while meeting quality and safety standards. Browse the Electronics & Electricals category at EnvMart for additional Power Relay options.
