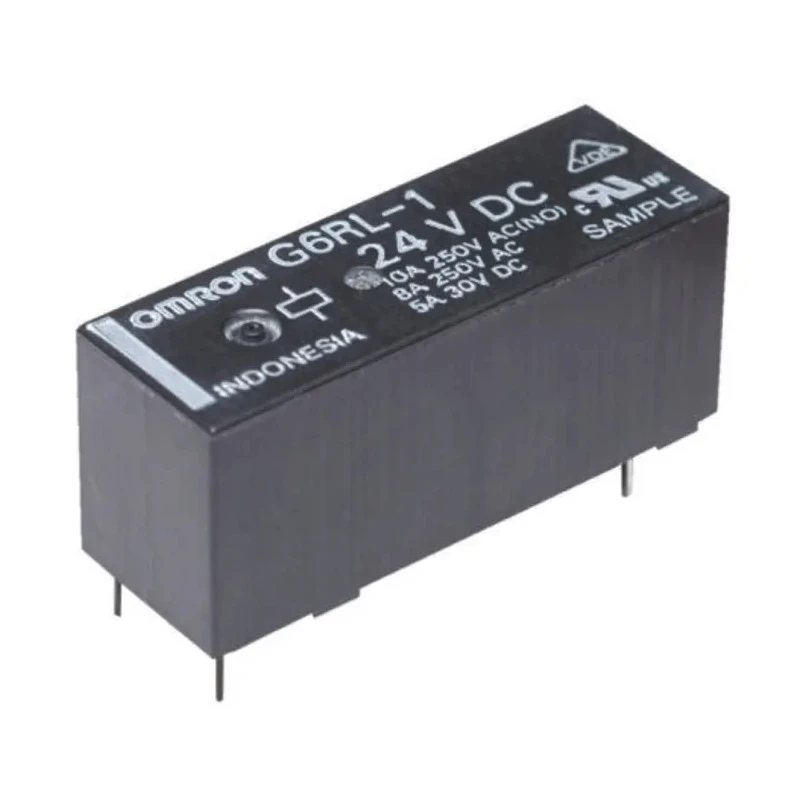

Omron Power Relay PCB Mount 24V DC Coil 10A Switching SPDT G6RL-1-ASI DC24
Specifications
| Country of Origin | India |
|---|---|
| Brand | Omron |
| Height | 12.3mm |
| Length | 28.5mm |
| Model | G6RL-1-ASI DC24 |
| Width | 10mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G6RL |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10A |
| Terminal type | Solder |
| Low Profile | 12.3mm max height |
| Standards/Approvals | RoHS, UL, VDE |
| Coil Resistance | 2.6kΩ |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 300V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 220mW |
| Switching Power | 150W |
| Low coil power consumption | 220mW (typical) |
Key Features
- This power relay features an SPDT contact configuration for versatile switching applications.
- It operates with a coil voltage of 24V DC, suitable for PCB mounting.
- The relay offers a switching current capacity of 10 amperes for reliable electrical control.
- Compact low profile design with a maximum height of 12.3mm.
- High operating temperature range from -40°C to 85°C ensures durability in industrial environments.
- The contact material is silver alloy to maintain conductivity and resistance to wear.
- Coil power consumption is low at 220mW typical, improving overall efficiency.
- Meets RoHS, UL 508 and VDE standards guaranteeing compliance and quality.
Product Description
Omron G6RL-1-ASI DC24 power relay is designed for PCB mounting and operates with a 24V DC coil voltage and a switching current of 10A.
This SPDT (Single Pole Double Throw) power relay features silver alloy contacts providing excellent conductivity and durability. Its compact, low-profile design with a height of just 12.3mm makes it ideal for space-constrained electronic assemblies.
The relay offers a switching power rating of 150W and can handle switching DC voltages up to 300V and AC voltages up to 400V, making it suitable for a variety of control circuit applications.
With a coil resistance of 2.6kΩ and low coil power consumption of 220mW (typical), this relay provides energy-efficient operation. Its operating temperature range from -40°C to 85°C ensures reliable performance in demanding industrial and automation environments.
The G6RL series relays fulfill key industry standards including RoHS compliance, UL 508 certification (File no. E41643), and VDE approvals, assuring high safety and quality. This power relay features an SPDT contact configuration for versatile switching applications.

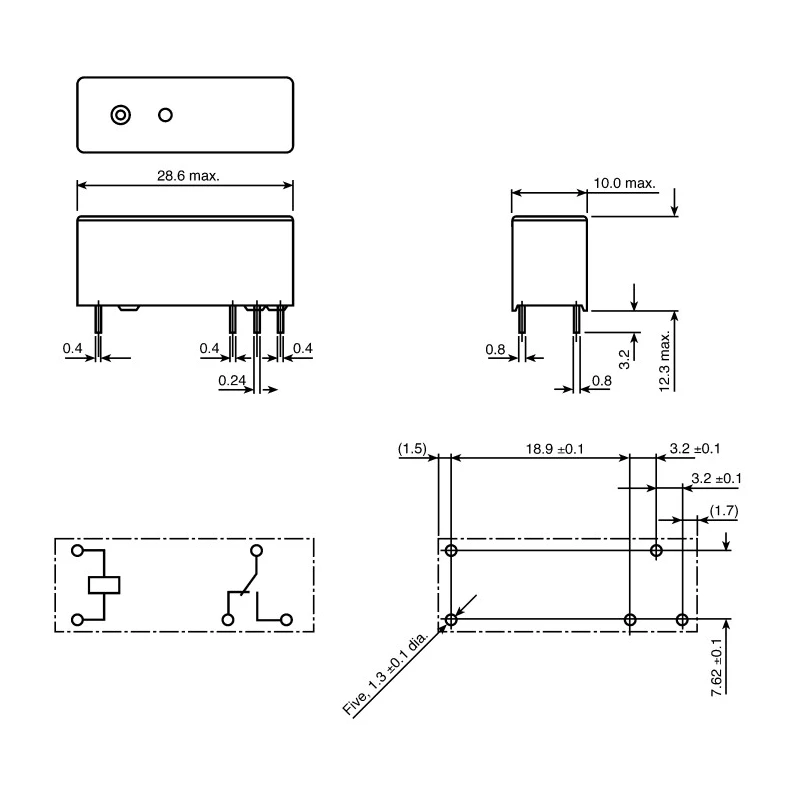

Operates at 24V DC coil voltage with low power consumption of 220mW typical. Switching current capacity is 10 amperes for medium power applications. Compact low-profile design with size dimensions 28.5mm length, 10mm width, and 12.3mm height.
Durable silver alloy contacts support AC up to 400V and DC up to 300V switching. Wide operating temperature range from -40°C to 85°C for industrial environments. Meets RoHS, UL 508, and VDE standards ensuring regulatory compliance.
This relay is widely used in electronics manufacturing, automation control systems, power distribution, and other industrial applications requiring reliable PCB mount power relays. It helps improve production efficiency through ready integration into machinery and control panels.
Discover more Power Relay solutions and reliable industrial electronics components in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The power relay has a switching current capacity of 10 amperes, making it suitable for medium power applications.
This relay operates with a coil voltage of 24V DC.
The dimensions of this power relay are 28.5mm in length, 10mm in width, and 12.3mm in height.
It features an SPDT (Single Pole Double Throw) contact configuration, allowing for versatile switching applications.
The operating temperature range is from -40°C to 85°C, ensuring reliable performance in various environments.
The coil resistance is 2.6kΩ, which contributes to its efficient operation.
This relay can handle switching DC voltages up to 300V and AC voltages up to 400V.
The coil power consumption is low at 220mW (typical), enhancing overall efficiency.
The contacts are made of silver alloy, which helps maintain conductivity and resistance to wear.
It meets RoHS, UL 508, and VDE standards, ensuring compliance and quality.
This model is designed for PCB mounting, making it suitable for various electronic assemblies.
The switching power rating is 150W, allowing it to control a variety of loads effectively.
