Omron PCB Power Relay 12V DC Coil 10A Switching Current SPST G6RL-1A-ASI DC12
Specifications
| Country of Origin | India |
|---|---|
| Brand | Omron |
| Height | 12.3mm |
| Length | 28.5mm |
| Model | G6RL-1A-ASI DC12 |
| Width | 10mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G6RL |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10A |
| Terminal type | Solder |
| Low Profile | 12.3mm max height |
| Standards/Approvals | RoHS, UL, VDE |
| Coil Resistance | 654Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 300V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 220mW |
| Switching Power | 150W |
| Low coil power consumption | 220mW (typical) |
Key Features
- This power relay is designed for PCB mounting with solder terminal type.
- It supports switching DC voltage up to 300V and AC voltage up to 400V.
- Low coil power consumption of 220mW enables energy-efficient operation.
- Compact low profile design with a maximum height of 12.3mm.
- Operates reliably from -40°C to 85°C ambient temperature.
- Silver alloy contact material ensures high conductivity and durability.
- Clearance and creepage distance is 10 mm for safety compliance.
- Complies with RoHS, UL 508, and VDE approvals.
Product Description
Omron G6RL-1A-ASI DC12 PCB Power Relay features a 12V DC coil voltage and SPST contact configuration, designed for reliable switching of electrical loads up to 10A current. This power relay supports switching DC voltages up to 300V and AC voltages up to 400V, making it versatile for various electronics and electrical automation applications.
With its low coil power consumption of 220mW and compact low profile height of 12.3mm, the relay offers efficient and space-saving design suitable for PCB mounting using solder terminals. The silver alloy contacts provide excellent conductivity and durability, enhancing performance and lifespan in industrial and commercial environments.
Designed to operate reliably in ambient temperatures ranging from -40°C to 85°C, this relay is ideal for industrial, HVAC, manufacturing, and automation system applications requiring dependable switching components. Its clearance and creepage distance of 10 mm ensure electrical safety in demanding conditions.
The G6RL series relay is flux proof and carries certifications including RoHS compliance, UL 508 (File no. E41643), and VDE approval, confirming adherence to international quality and safety standards.
This power relay is designed for PCB mounting with solder terminal type. Supports switching DC voltage up to 300V and AC voltage up to 400V. Low coil power consumption of 220mW enables energy-efficient operation. Compact low profile design with a maximum height of 12.3mm.
Operates reliably from -40°C to 85°C ambient temperature. Silver alloy contact material ensures high conductivity and durability. Clearance and creepage distance is 10 mm for safety compliance. Complies with RoHS, UL 508, and VDE approvals.
Flux proof design enhances reliability in PCB applications. Dimensions: 28.5mm length x 10mm width. Ideal for industrial automation, electrical equipment, and electronic device manufacturing applications. Explore more Power Relays and related components at EnvMart for efficient and reliable electrical solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this power relay is 12V DC.
This model supports a maximum switching current of 10A.

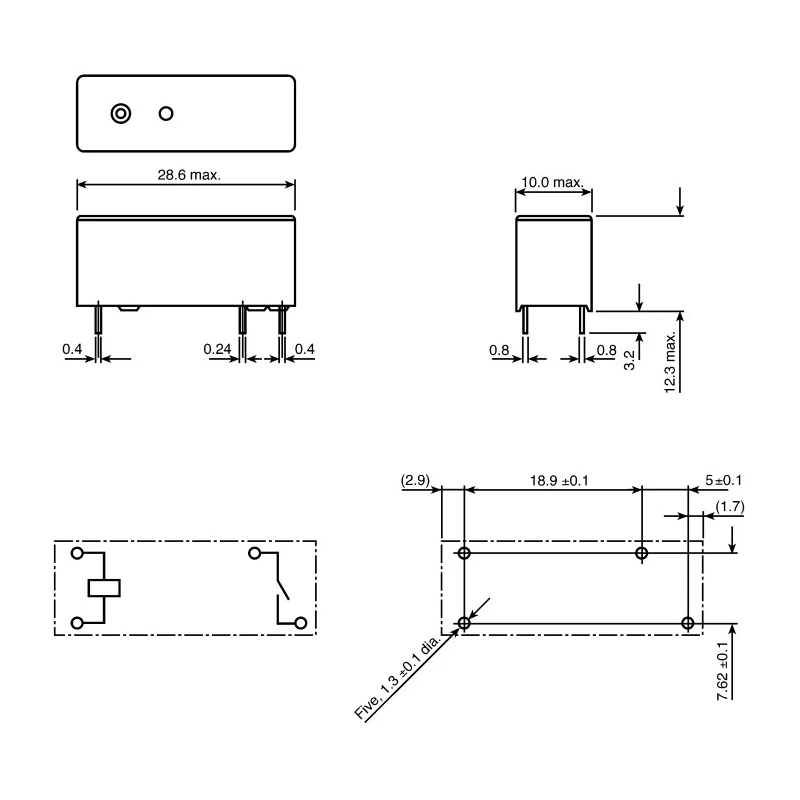

The dimensions of the relay are 28.5mm in length, 10mm in width, and it has a maximum height of 12.3mm.
It can switch DC voltages up to 300V and AC voltages up to 400V.
This power relay features an SPST (Single Pole Single Throw) contact configuration.
This relay operates reliably in ambient temperatures ranging from -40°C to 85°C.
The coil power consumption is 220mW, which enables energy-efficient operation.
The contact material of this relay is silver alloy, which ensures high conductivity and durability.
This model complies with RoHS, UL 508, and VDE approvals.
This power relay is designed for PCB mounting with solder terminal type.
The clearance and creepage distance for this relay is 10 mm, ensuring safety compliance.
The switching power rating is 150W.
