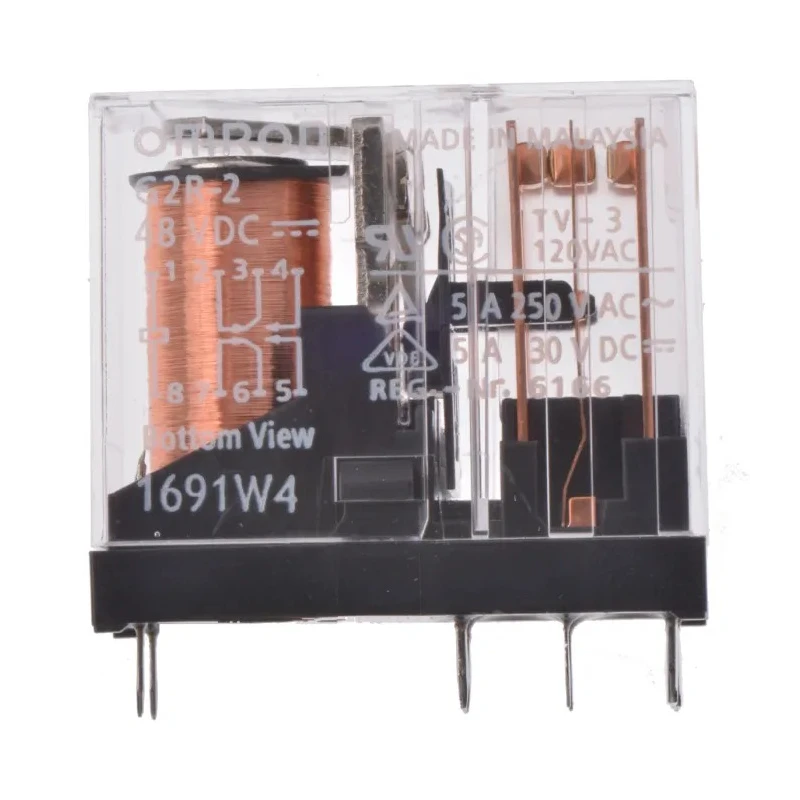

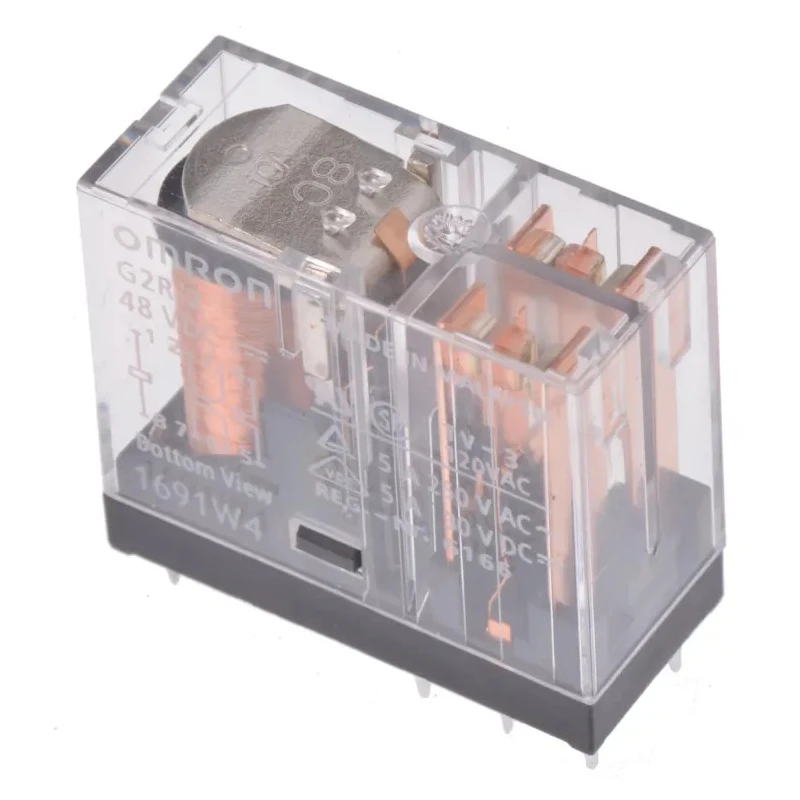

Omron PCB Power Relay 48V DC Coil, 5A Switching Current, DPDT, Solder Terminal G2R-2 DC48

Omron G2R-2 DC48 PCB Power Relay features a 48V DC coil and a 5A switching current capability with a double pole double throw (DPDT) contact configuration. Designed for general-purpose industrial and commercial usage, this power relay mounts directly onto printed circuit boards (PCB) and utilizes solder terminals for easy integration into electronic systems.

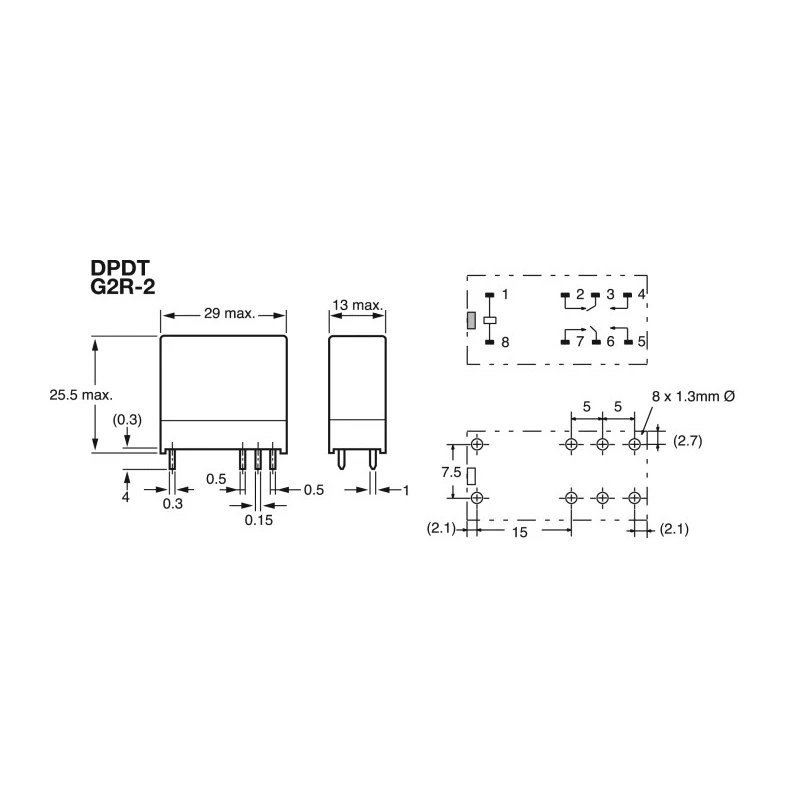

This relay offers a coil resistance of 4.2kΩ, coil power of 0.9VA, and supports switching power up to 150W, accommodating switching voltages up to 125V DC and 380V AC. Its durable silver alloy contacts provide a stable electrical connection with contact resistance of only 50mΩ. The device dimensions (29mm length, 13mm width, 25.5mm height) allow compact circuit designs without sacrificing functionality.

The operational temperature range from -40°C to 70°C ensures reliable performance in a variety of environmental conditions. The product conforms to RoHS environmental directives, making it suitable for applications requiring regulatory compliance. Its robust construction includes 8mm creepage and clearance distances enhancing safety against electrical arcing.

This power relay finds applications in industrial automation, electrical control panels, HVAC systems, manufacturing processes, and other commercial electronic control systems where robust electrical switching is necessary. Its PCB mounting and solder terminal design facilitate straightforward PCB integration and efficient manufacturing.

Supports dual-pole double-throw contact configuration for versatile circuit control. Designed for PCB mounting with solder-type terminals ensuring secure installation. Operates with a coil voltage of 48V DC and coil resistance of 4.2kΩ for precise activation.

Switching power up to 150W with maximum switching voltages of 125V DC and 380V AC for broad compatibility. Compact dimensions of 29mm length, 13mm width, and 25.5mm height for space-efficient designs. Manufactured with silver alloy contacts promoting low contact resistance of 50mΩ for optimal performance.

Temperature range from -40°C to 70°C supports demanding operating environments. Compliance with RoHS standards ensures environmental safety and regulatory adherence.

Omron offers a trusted range of high-quality relays suitable for various industrial and commercial electrical applications. Explore more products in the Power Relays category to find solutions tailored to your control system needs.
