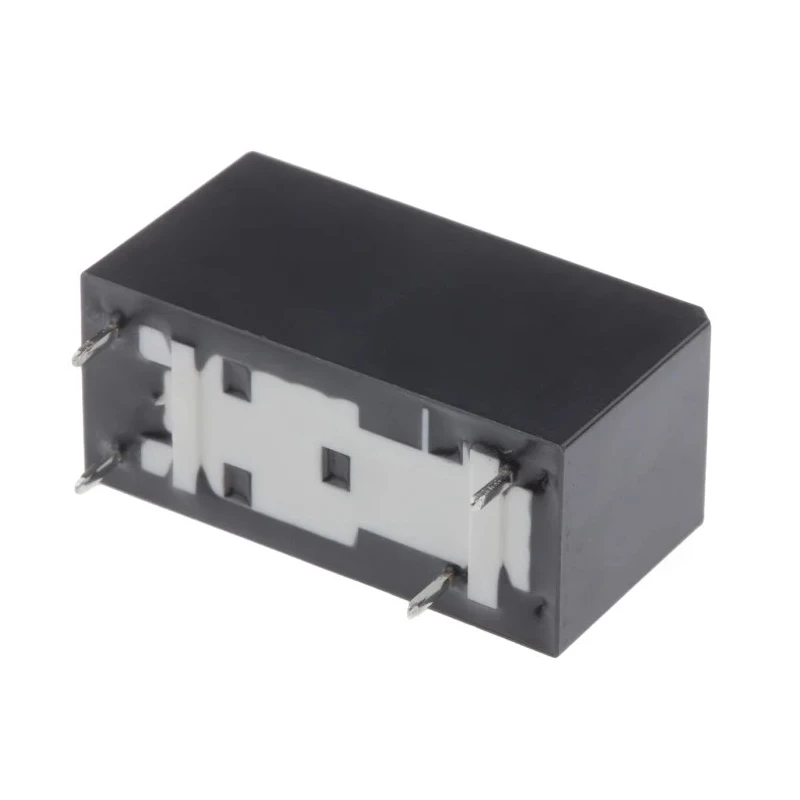

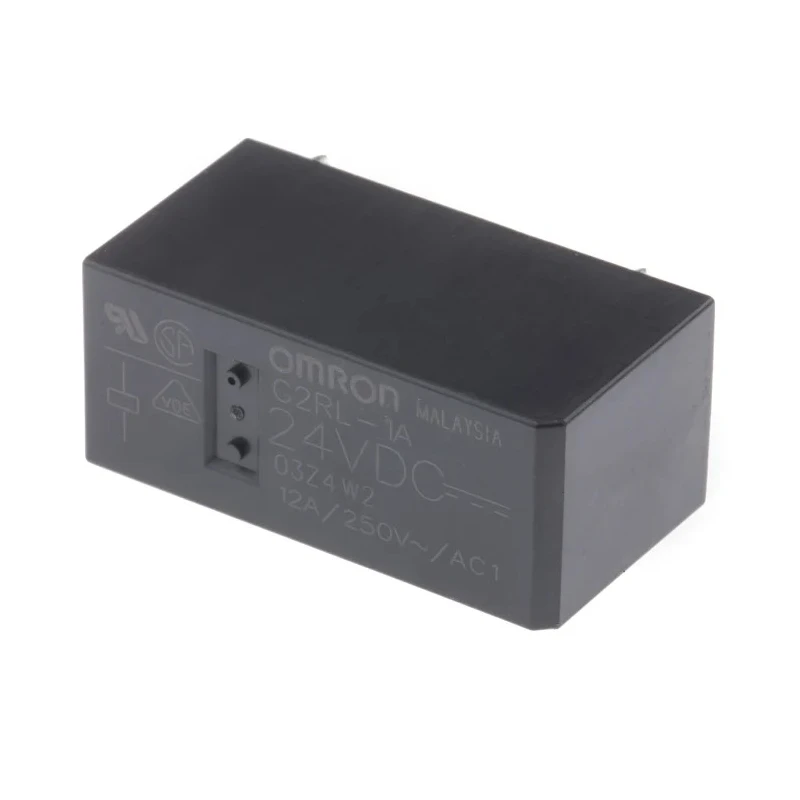

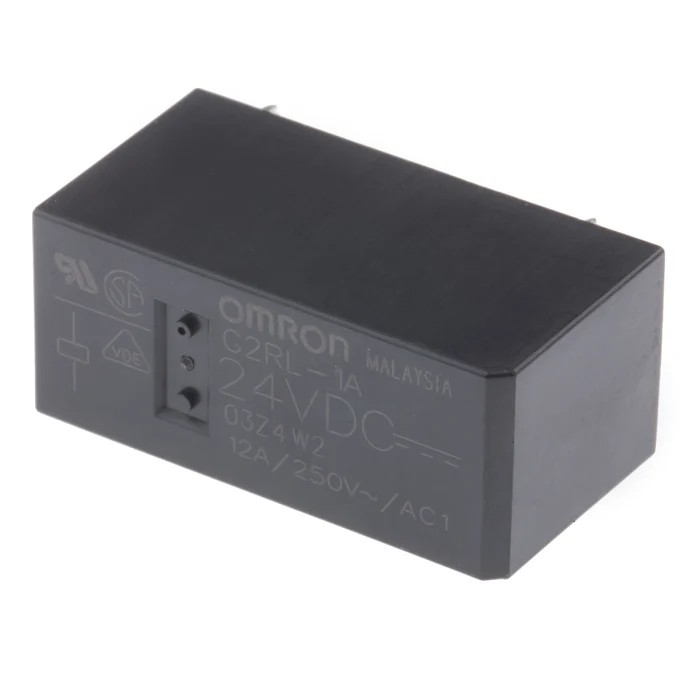

Omron Power Relay PCB Mount SPST Silver Alloy Contact 24V DC Coil 10A Switching Current G2RL-1A DC24

Omron G2RL-1A DC24 power relay offers reliable switching performance for industrial and automation applications. This PCB mount relay features a 24V DC coil and a contact switching current rating of 10A, making it suitable for controlling various electrical loads with ease and efficiency.

The relay employs silver alloy contact material that enhances conductivity and durability, optimizing the lifespan for high-frequency switching environments. The contact configuration is SPST (Single Pole Single Throw), supporting straightforward on/off switching operations.

Designed with a through-hole terminal type, the relay can be easily mounted on printed circuit boards, simplifying assembly and integration in circuits. The relay can switch voltages up to 300V DC and 440V AC, thus covering a wide range of industrial and commercial power requirements.

The compact low-profile design measures 15.7 mm in height, 12.7 mm in width, and 29 mm in length, allowing usage in compact electrical panels and systems with space constraints. Coil resistance is 1.4 kΩ with a power consumption of just 400 mW, ensuring energy-efficient operation.

This relay is engineered to operate in extreme environments with an operating temperature range from -40°C to 85°C. It complies with IEC/EN 60079-15 standards, VDE certification, and RoHS directives, ensuring safety, environmental friendliness, and quality assurance.

Notably, the relay offers low contact resistance of 100 mΩ and superior tracking resistance (Comparative Tracking Index > 250), guaranteeing dependable switching and electrical insulation integrity.

Omron’s G2RL series is widely used in industrial automation, electrical control panels, HVAC systems, manufacturing machinery, and other applications requiring dependable switching performance with compact form factors.

Features Silver Alloy contacts ensuring high conductivity and durability. Single Pole Single Throw (SPST) contact configuration ideal for straightforward switching applications. PCB mount type with through-hole terminal construction for easy integration into circuit boards.

Capable of switching up to 300V DC and 440V AC, suitable for diverse electrical loads. Compact dimensions with low profile 15.7mm height and footprint of 12.7mm by 29mm. Coil resistance of 1.4kΩ consuming 400mW power for efficient operation.

Wide operating temperature range from -40 °C to 85 °C to withstand harsh environments. Meets international standards IEC/EN 60079-15, VDE and RoHS compliant. Low contact resistance of 100mΩ and high tracking resistance (CTI > 250) for reliable performance.
