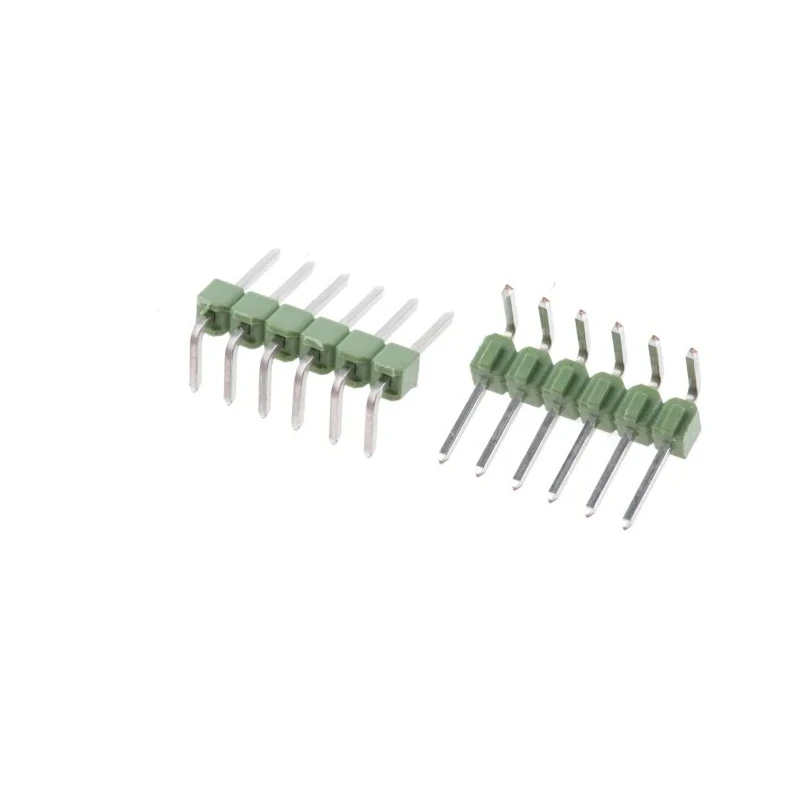

TE Connectivity AMPMODU MOD II Series Right Angle Through Hole Pin Header, 6 Contacts, 2.54 mm Pitch, 1 Row, 3A 826947-6
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 750V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 3A |
| Model | 826947-6 |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Brass |
| Series | AMPMODU MOD II |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 6 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 3.2mm |
| Mating Pin Length | 6.7mm |
Key Features
- The pin header features a right angle orientation for efficient PCB mounting.
- It uses a brass contact material with tin plating for durability and conductivity.
- Housing material is polybutylene terephthalate, providing good insulation and mechanical strength.
- Termination type is solder, ensuring reliable electrical and mechanical connections.
- Suitable for board-to-board and wire-to-board connector systems.
- Operating temperature range spans from -65°C to 105°C suitable for various environments.
- Tail pin length is 3.2 mm and mating pin length is 6.7 mm for secure connections.
- Designed for industrial, automotive, telecommunications, medical instruments, and test equipment applications.
Product Description
TE Connectivity 826947-6 AMPMODU MOD II Series Right Angle Through Hole Pin Header offers a high-quality electrical connection solution with 6 contacts arranged in a single row with a 2.54 mm pitch. The product features an unshrouded, right angle orientation designed for easy and flexible PCB assembly. The housing is made of polybutylene terephthalate, ensuring excellent mechanical strength and electrical insulation. Its brass contacts plated with tin provide reliable conductivity and resistance against corrosion.
This pin header supports a current rating of 3A and can handle a voltage up to 750V. It operates reliably within a temperature range of -65°C to 105°C, making it suitable for demanding industrial and commercial environments. The termination is solder type, facilitating robust and lasting electrical connections. The tail pin length is 3.2 mm, while the mating pins extend to 6.7 mm, supporting a secure and stable engagement with mating connectors.
The connector system supports board-to-board and wire-to-board configurations, making it versatile for automation, control systems, telecommunications, industrial, automotive controls, medical instruments, and test equipment. Its single row, right angle configuration speeds up installation and optimizes PCB space usage. The unshrouded design provides the flexibility to break the header into required sizes, improving customization and efficiency.
The AMPMODU MOD II pin headers are known for their reliable signal integrity and cost effectiveness in various applications such as storage equipment, consumer appliances, and telecommunications system setups.
The pin header features a right angle orientation for efficient PCB mounting. It uses brass contact material plated with tin for durability. Housing made of polybutylene terephthalate offers strong insulation. Solder termination ensures stable electrical connections.
Supports 3A current and 750V voltage ratings. Operates from -65°C to 105°C for wide temperature environments. Tail pin length of 3.2 mm and mating pin length of 6.7 mm for secure mating. Suitable for board-to-board and wire-to-board connector systems.
Ideal for industrial, automotive, medical, telecommunications applications. Unshrouded design, allowing breakaway to the required size. Explore more of TE Connectivity connectors and PCB Headers at EnvMart for your electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This pin header supports a current rating of 3A.
It can handle a voltage up to 750V.
The contact pitch is 2.54 mm.
The contacts are made of brass and are plated with tin, while the housing is made of polybutylene terephthalate.
It operates reliably within a temperature range of -65°C to 105°C.
The tail pin length is 3.2 mm.
The mating pin length is 6.7 mm.
This model features 6 contacts arranged in a single row.
It uses a solder termination type for reliable electrical connections.
It supports both board-to-board and wire-to-board connector systems.
This model is unshrouded, allowing for flexibility in breaking the header into required sizes.
It is suitable for industrial, automotive, telecommunications, medical instruments, and test equipment applications.
