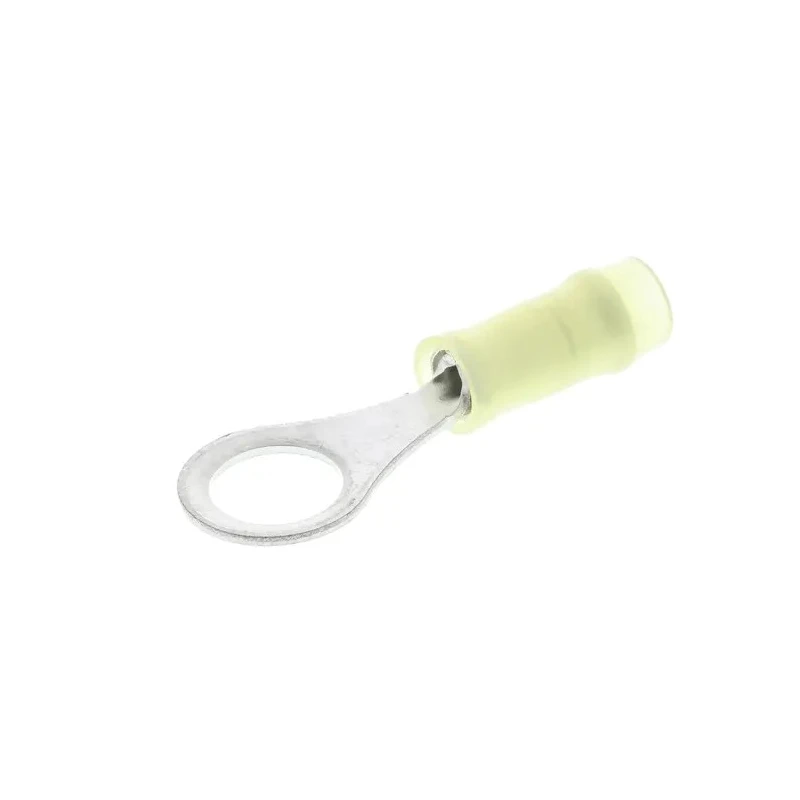

TE Connectivity PIDG Insulated Ring Terminal M4 Stud Size 26 AWG 22 AWG Wire Size Nylon Yellow 323916
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Yellow |
| THICKNESS | 0.79mm |
| Model | 323916 |
| Insulation | Insulated |
| Overall Length | 18.8mm |
| Contact Material | Copper |
| Series | PIDG |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Nylon |
| Standards/Approvals | RoHS |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.1mm² |
| Maximum Wire Size mm² | 0.4mm² |
| Minimum Wire Size AWG | 26AWG |
| Maximum Wire Size AWG | 22AWG |
| Outer Ring Diameter | 0.203mm |
| Inner Ring Diameter | 0.93mm |
| Stud Size | M4 |
Key Features
- Constructed with high conductivity copper for optimal electrical performance.
- Features a nylon insulated sleeve in yellow for easy wire size identification.
- Tin-plated contacts enhance corrosion resistance and durability.
- Overall length measures 18.8 mm with a thickness of 0.79 mm for compact installations.
- Suitable for maximum wire size of 22 AWG (0.4 mm²) and minimum of 26 AWG (0.1 mm²).
- Designed to operate reliably up to 105 °C maximum temperature.
- Serrated wire barrel provides excellent contact and tensile strength after crimping.
- Funnel-shaped wire entry allows quick and secure wire insertion.
Product Description
TE Connectivity 323916 PIDG Insulated Ring Terminal is a high-precision ring tongue wire crimp terminal engineered for reliable and uniform electrical connections in demanding circuit environments. The product features a copper contact material with tin plating for enhanced durability and corrosion resistance.
The insulated ring terminal is fitted with a yellow nylon sleeve, providing excellent wire insulation support and facilitating quick wire size identification. The pre-insulated diamond grip (PIDG) design incorporates a copper sleeve inside the wire barrel to prevent wire fraying and ensure consistent crimp quality.
With an M4 stud size and compatible wire sizes ranging from 26 AWG to 22 AWG, this ring terminal offers versatility across various wiring applications. The overall length of 18.8 mm and a thickness of 0.79 mm allow it to be used in compact assemblies.
The serrated wire barrel enhances maximum contact and tensile strength after crimping, while its funnelled wire entry design ensures fast and secure wire insertion, making it highly suitable for high-speed production environments.
Operating reliably up to 105 °C, this ring terminal is ideal for industrial, automotive, aerospace, electrical control panels, power supply connections, and transportation equipment wiring applications. It complies with RoHS environmental standards, ensuring safety and sustainability.
Constructed with high conductivity copper for optimal electrical performance. Features a nylon insulated sleeve in yellow for easy wire size identification. Tin-plated contacts enhance corrosion resistance and durability.
Overall length measures 18.8 mm with a thickness of 0.79 mm for compact installations. Suitable for maximum wire size of 22 AWG (0.4 mm²) and minimum of 26 AWG (0.1 mm²). Designed to operate reliably up to 105 °C maximum temperature.
Serrated wire barrel provides excellent contact and tensile strength after crimping. Funnel-shaped wire entry allows quick and secure wire insertion. Meets RoHS compliance standards for environmental safety.
This TE Connectivity PIDG Insulated Ring Terminal 323916 is a trusted solution for reliable wire termination and electrical connectivity, widely used across manufacturing, industrial, automotive, and aerospace sectors. Browse through EnvMart for more TE Connectivity power connectors and wire terminal products.
