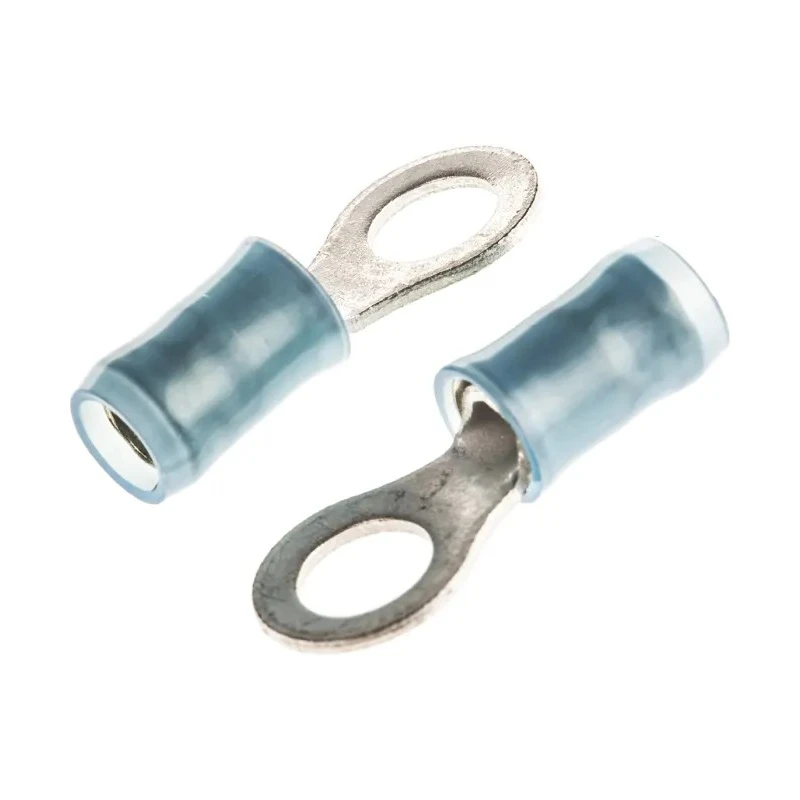

TE Connectivity PIDG Insulated Ring Terminal M5 Stud Size 16 AWG 14 AWG Wire Size Blue 130663

TE Connectivity 130663 PIDG Insulated Ring Terminal is a high-quality electrical connector designed for precise and reliable wire termination with an M5 stud size. Featuring a blue nylon insulation sleeve, this ring terminal supports wire sizes of 16 AWG to 14 AWG (1.25 mm² to 2 mm²), making it suitable for a wide range of wiring tasks.

The terminal is crafted from a precision-formed copper body that provides excellent electrical conductivity. Its copper sleeve enhances wire insulation support, preventing wire fraying, while serrations inside the barrel ensure maximum contact and tensile strength once crimped. The funnelled wire entry facilitates easy and high-speed wire insertion, improving production efficiency.

This PIDG (Pre-Insulated Diamond Grip) terminal is engineered to produce a uniform and reliable crimp when used with specialist tooling, making it well-suited for applications in harsh or demanding environments. It is commonly used in industries including aerospace, automotive, power supply units, instrument control, and transportation equipment.

The blue color coding aids fast wire size and tooling identification. The terminal is rated for a maximum operating temperature of 105°C, ensuring durability under elevated temperature conditions.

Constructed with high conductivity copper body for optimal electrical performance. Nylon insulation sleeve provides enhanced wire size identification and protection against environmental factors. Funnelled wire entry design prevents wire strand damage and allows fast insertion during manufacturing.

Serrations within the barrel increase contact area and mechanical strength after crimping. Meets or exceeds MIL-T-7928 Type II, Class 1 and 2 requirements in applications. Versatile use cases ranging from industrial automation to aerospace wiring harnesses.

Designed for reliable crimps using specialized tool dies to enhance connection quality. Supports wire sizes from 16 AWG (1.25 mm²) to 14 AWG (2 mm²). Rated for continuous operation at temperatures up to 105°C. Manufactured in the United States, ensuring compliance with quality standards.

This ring terminal is a critical component for ensuring electrical continuity and mechanical robustness in industrial, laboratory, aerospace, HVAC, manufacturing, and transportation wiring systems. The product is offered as new and is backed by TE Connectivity's reputation for quality and reliability. Explore a broad range of Ring Terminals and wire termination solutions within the TE Connectivity brand on EnvMart for trusted industrial-grade products.
