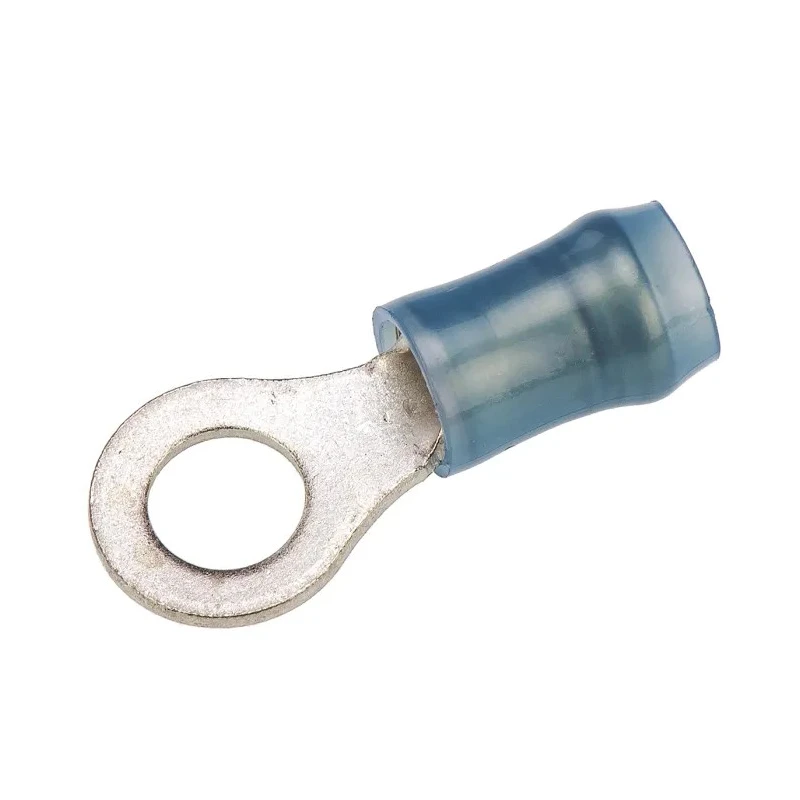

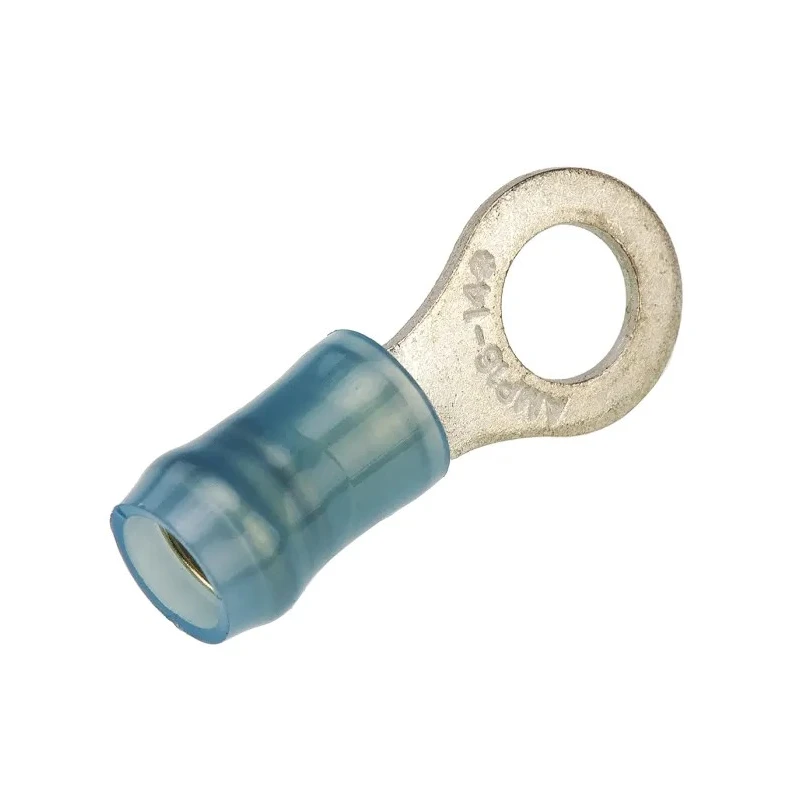

TE Connectivity PIDG Insulated Ring Terminal M5 Stud Size 16 AWG 14 AWG Wire Size Nylon Blue 36160
Specifications
| Country of Origin | United States |
|---|---|
| Brand | TE Connectivity |
| Colour | Blue |
| Model | 36160 |
| Insulation | Insulated |
| Overall Length | 21.82mm |
| Contact Material | Copper |
| Series | PIDG |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Nylon |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 1mm² |
| Maximum Wire Size mm² | 2.6mm² |
| Minimum Wire Size AWG | 16AWG |
| Maximum Wire Size AWG | 14AWG |
| Outer Ring Diameter | 8.71mm |
| Inner Ring Diameter | 5mm |
| Stud Size | M5 |
| RS PRO Insulated Ring Terminal, M5 Stud Size 16 AWG 14 AWG Wire Size, BlueBrand | RS PRO |
Key Features
- The copper contact is plated with tin to resist corrosion and ensure conductivity.
- Blue nylon insulation sleeve provides easy wire size identification and improved insulation support.
- Serrated copper sleeve inside the barrel prevents wire fraying and strengthens crimp contact.
- Funnelled wire entry design enables fast wire insertion for high-speed production processes.
- Suitable for a wide range of industrial applications including aerospace, motors, instruments, and transportation.
- Meets or exceeds MIL-T-7928 requirements, enhancing reliability under demanding environments.
- Compact overall length of 21.82 mm and outer ring diameter of 8.71 mm optimize space and fit.
- Operating temperature up to 105°C for robust performance in heat-prone conditions.
Product Description
TE Connectivity 36160 PIDG Insulated Ring Terminal is engineered to deliver uniform reliability for 16 AWG to 14 AWG wire sizes with an M5 stud size. Featuring a high conductivity copper body with a tin-plated contact, this ring terminal ensures excellent electrical connection and corrosion resistance. The copper sleeve inside the barrel greatly improves wire insulation support, minimizing fraying and enhancing tensile strength after crimping.
The blue nylon insulation sleeve facilitates easy wire size identification and tooling. Its funnelled entry design allows for quick wire insertion, making it ideal for high-speed electrical assembly operations. These PIDG terminals meet or exceed the stringent MIL-T-7928 specifications, classified as Type II, Class 1 and 2, making them suitable for critical applications in aerospace, transportation, motors, lighting, panel boxes, and industrial instruments.
With an overall length of 21.82 mm and an outer ring diameter of 8.71 mm, this Ring Terminal is compact yet robust, supporting wire sizes from 16 AWG (1 mm²) up to 14 AWG (2.6 mm²). It withstands maximum operating temperatures of up to 105°C, ensuring safe performance in thermal stress environments. Manufactured in the United States, this product combines quality materials and design for long-lasting electrical connections.
The copper body and tin plating ensure superior electrical conductivity and corrosion resistance. Nylon insulation provides enhanced durability and easy wire size differentiation. Designed with serrations inside the wire barrel for maximum contact and tensile strength.
Funnelled wire entry offers efficient, fast wire insertion during assembly. Meets MIL-T-7928 standards ensuring reliable use in demanding industrial and aerospace sectors. Ideal for applications including control instruments, power supplies, panel assemblies, and transportation systems.
Explore a comprehensive range of industrial and electronic connectivity solutions with TE Connectivity at EnvMart. Enhance your wiring projects with reliable, precision-engineered terminals.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is designed to accommodate wire sizes from 16 AWG (1 mm²) to 14 AWG (2.6 mm²).
The maximum operating temperature for this terminal is 105°C, making it suitable for heat-prone environments.
It has an overall length of 21.82 mm and an outer ring diameter of 8.71 mm, optimizing space and fit.
The contact material is copper, which is tin-plated to enhance conductivity and resist corrosion, while the insulation is made of nylon.
This terminal is designed for an M5 stud size, ensuring compatibility with various mounting applications.
The funnelled wire entry design allows for quick and efficient wire insertion, making it ideal for high-speed electrical assembly operations.
It meets or exceeds the MIL-T-7928 requirements, classified as Type II, Class 1 and 2, suitable for critical applications.
This model is suitable for a wide range of industrial applications, including aerospace, transportation, motors, and panel assemblies.
The serrated copper sleeve inside the barrel prevents wire fraying and strengthens the crimp contact, improving overall reliability.
This product is manufactured in the United States, ensuring adherence to quality standards.
The insulation of this terminal is blue, which aids in easy wire size identification.
The inner ring diameter of this terminal is 5 mm, facilitating a secure fit on the stud.
