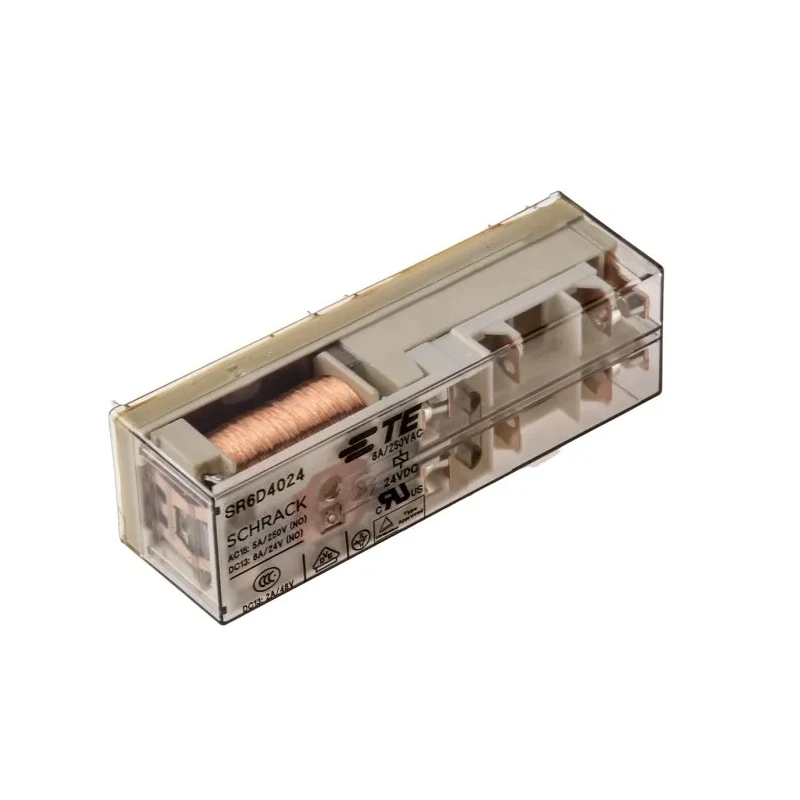

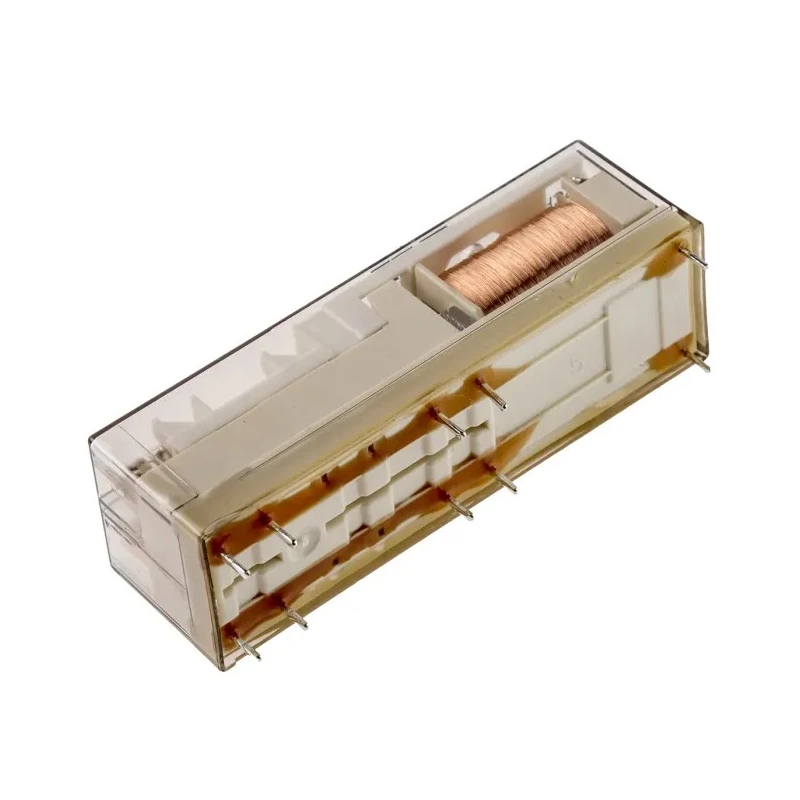

TE Connectivity PCB Force Guided Relay 24V DC Coil Voltage 4-Pole DPDT SR6D4024
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Brand | TE Connectivity |
| Height | 16.5mm |
| Length | 55mm |
| Model | SR6D4024 |
| Depth | 16.5mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | SR6 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -25°C |
| Terminal type | Solder |
| Number of Poles | 4 |
| Coil Resistance | 480Ω |
| Coil Power | 1200mW |
| Isolation Coil To Contact | 4kVrms |
Key Features
- Coil voltage rated at 24V DC ensuring consistent performance.
- Four poles configured as DPDT for versatile switching capabilities.
- Maximum operating temperature of 70°C and minimum of -25°C for wide ambient conditions.
- Built with silver alloy contact material for enhanced conductivity and durability.
- Solder terminal type compatible with PCB mounting requirements.
- Isolation between coil and contacts rated at 4kVrms ensuring electrical safety.
- Compact dimensions of 55mm length, 16.5mm height, and 16.5mm depth for space-efficient installations.
- Coil resistance of 480Ω and coil power consumption of 1200mW for precise control.
Product Description
TE Connectivity SR6D4024 PCB Force Guided Relay is designed for precise and safe switching operations in electronic and industrial equipment. Featuring a 24V DC coil voltage and a 4-pole DPDT contact configuration, this relay is suitable for PCB mounting with solder terminals, offering reliable force guided contacts conforming to EN50205 standards.
This relay supports an ambient temperature range from -25°C to +70°C, making it appropriate for diverse environmental conditions encountered in automation, control, and safety applications. The compact size of 55mm in length, complemented by 16.5mm height and depth, allows integration into densely packed circuit designs.
Its coil resistance of 480Ω and power consumption of 1200mW ensures efficient coil drive, reducing energy losses and improving system reliability. Isolation between coil and contact is rated at 4kVrms, providing excellent electrical isolation and enhanced operational safety.
The construction uses silver alloy for contact materials, delivering superior conductivity and mechanical endurance under repeated switching cycles. This makes it ideal for industrial, laboratory, manufacturing, HVAC, and safety relay use cases where dependable operation is critical.
Coil voltage: 24V DC suitable for low voltage industrial control systems. Contact arrangement: 4 poles with DPDT providing versatile switching options. Operating temperature range: -25°C to +70°C for wide environmental tolerances.
Robust solder terminal type supports secure PCB mounting. Coil characteristics: 480Ω resistance and 1200mW power consumption. Contact materials: Silver alloy for excellent conductivity and durability. Isolation rated at 4kVrms between coil and contacts ensuring safety.
Compact dimensions (55 x 16.5 x 16.5 mm) for efficient space usage. Compliance with EN50205 ensuring reliable force guided contact operation for safety applications. The SR6 series safety relay from TE Connectivity is well-suited for use in electrical automation and control systems demanding high reliability and safety compliance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this relay is rated at 24V DC, ensuring consistent performance in low voltage industrial control systems.
It uses solder terminals, which are compatible with PCB mounting requirements for secure installation.
The coil resistance of this relay is 480Ω, which contributes to its efficient coil drive.
The coil power consumption is 1200mW, ensuring precise control and reducing energy losses.
The contacts are made from silver alloy, which enhances conductivity and durability during operation.
The isolation between the coil and contacts is rated at 4kVrms, ensuring electrical safety during operation.
The dimensions of this relay are 55mm in length, 16.5mm in height, and 16.5mm in depth, allowing for space-efficient installations.
This relay is manufactured in the Czech Republic.
This relay belongs to the SR6 series, which is designed for force guided contact operation.
This relay is suitable for use in industrial, laboratory, manufacturing, HVAC, and safety relay applications where reliable operation is critical.
