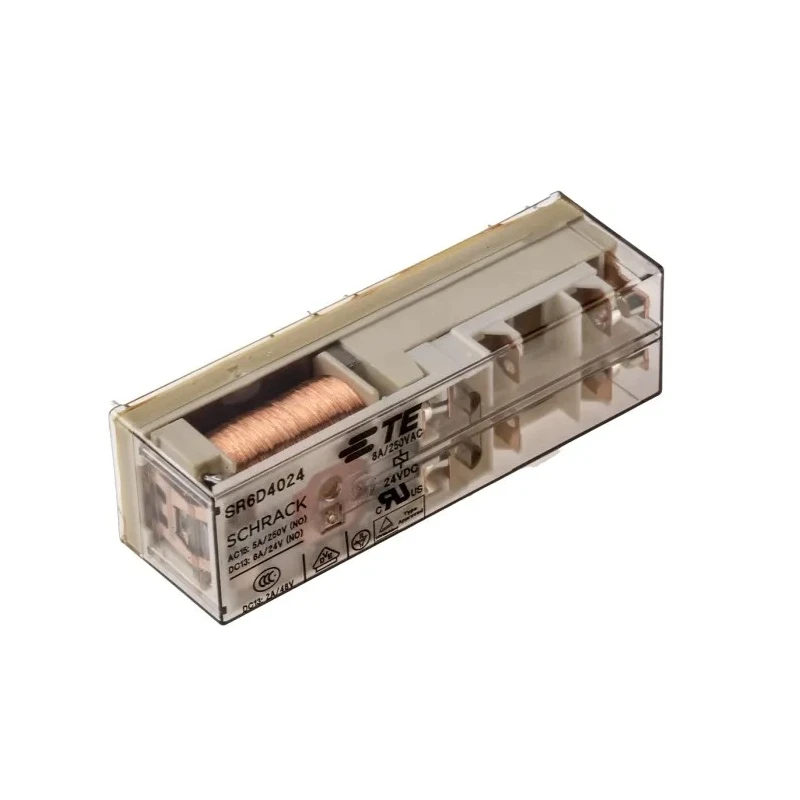

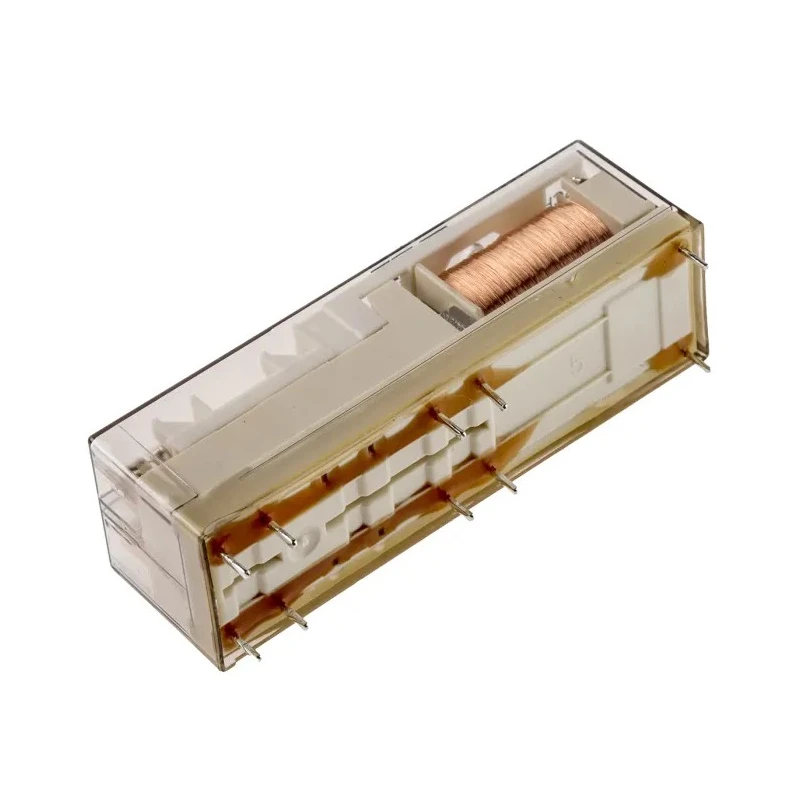

TE Connectivity PCB Force Guided Relay, 24V DC Coil Voltage, 4-Pole DPDT Silver Alloy Contact SR6D4024
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Brand | TE Connectivity |
| Height | 16.5mm |
| Length | 55mm |
| Model | SR6D4024 |
| Depth | 16.5mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | SR6 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -25°C |
| Terminal type | Solder |
| Number of Poles | 4 |
| Coil Resistance | 480Ω |
| Coil Power | 1200mW |
| Isolation Coil To Contact | 4kVrms |
Key Features
- Suitable for PCB mounting with solder terminal type.
- Coil resistance is 480 ohms, coil power consumption is 1200mW.
- Operates reliably from -25°C to 70°C ambient temperature range.
- Contact material is silver alloy ensuring good conductivity.
- Isolation voltage from coil to contact is 4 kVrms.
- Force guided contacts compliant with EN50205 standards.
- Series designation is SR6, providing safety relay functionality.
- Manufactured in Czech Republic.
Product Description
TE Connectivity SR6D4024 PCB Force Guided Relay is designed for industrial and electrical automation applications requiring reliable and safe relay operation. It features a 24V DC coil voltage suitable for control circuits with PCB mounting capability. The relay employs silver alloy contacts ensuring durability and excellent electrical performance.
With a 4-pole double-pole double-throw (DPDT) contact configuration, the SR6D4024 is configured for versatile switching requirements. The solder terminal design facilitates reliable PCB attachment. Its coil resistance of 480 ohms and power consumption of 1200mW make it efficient for continuous operation.
The relay operates effectively within an ambient temperature range of -25°C to 70°C, suitable for various industrial environments. Isolation between coil and contacts is rated at 4 kVrms, enhancing operational safety and signal integrity. It meets force guided contacts standard EN50205, ensuring contact safety and compliance in control systems.
Product dimensions are compact at 55 mm length and 16.5 mm in both height and depth, supporting space-constrained designs. The device is part of the SR6 series safety relays, offering robust performance for control and automation in manufacturing, HVAC systems, water treatment, and other industrial applications.
Suitable for safe and reliable PCB mounting applications. Force guided contact design for enhanced safety compliance. Wide operating temperature range for industrial environments. High isolation voltage for coil to contact.
Compact form factor with robust silver alloy contacts.
This TE Connectivity force guided relay is ideal for industrial automation, process control, and safety relay applications where reliability and compliance to standards are critical. Explore more products in the Force Guided Relay category at EnvMart for comprehensive automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The SR6D4024 relay has a coil voltage of 24V DC.
This model features a 4-pole double-pole double-throw (DPDT) contact configuration.
The relay operates effectively within an ambient temperature range of -25°C to 70°C.
It supports PCB mounting with a solder terminal type.
The isolation voltage from coil to contact is rated at 4 kVrms.
The coil resistance of the relay is 480 ohms.
The coil power consumption is 1200mW.
The contacts are made of silver alloy, ensuring good conductivity.
The relay has dimensions of 55 mm in length, and 16.5 mm in both height and depth.
This relay is part of the SR6 series, which provides safety relay functionality.
Yes, it features force guided contacts compliant with EN50205 standards.
The SR6D4024 is manufactured in the Czech Republic.
