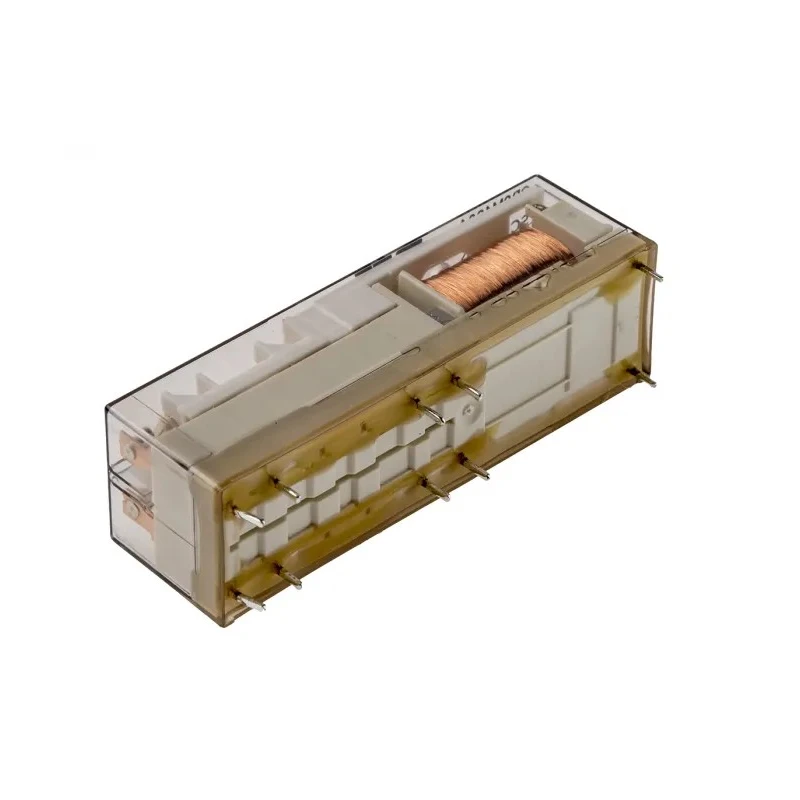

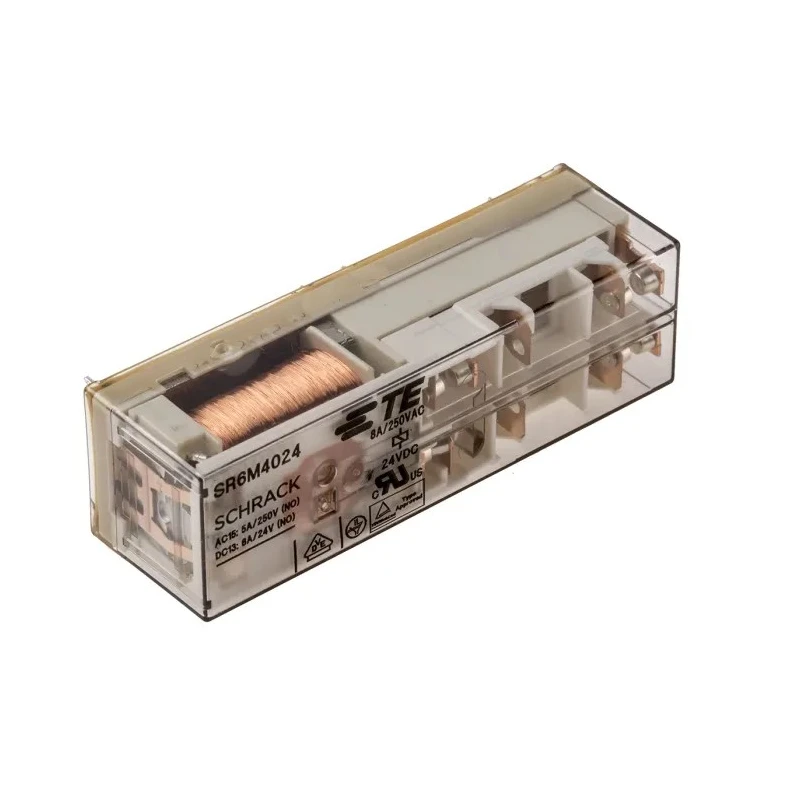

TE Connectivity PCB Force Guided Relay 4-Pole 24V DC Coil Voltage Silver Alloy Contacts SR6M4024

TE Connectivity SR6M4024 PCB Force Guided Relay is a high-performance electrical component engineered for reliable switching in automation, industrial control, and safety applications. The relay features a 24V DC coil voltage and a 4-pole configuration, providing multiple contact arrangements for versatile circuit designs. Constructed with silver alloy contacts, it guarantees excellent conductivity and long service life under frequent switching operations.

Designed for PCB mounting, the relay includes solder terminals to ensure a secure electrical connection within printed circuit boards. It operates efficiently with a coil resistance of 480Ω and a coil power rating of 1200 mW, balancing minimal energy consumption with robust performance.

The relay withstands a broad ambient temperature range from -25°C to +70°C, making it suitable for diverse industrial environments. Mechanical dimensions are compact, with a length of 55 mm, height and depth both at 16.5 mm, facilitating integration into space-constrained assemblies.

With a coil-to-contact isolation rating of 4 kVrms, it provides enhanced electrical insulation to protect sensitive circuits. The relay is part of the SR6 series, recognized for its compliance with safety standards such as EN50205 force guided contacts, ideal for use in safety-related applications.

Its construction and specifications make it suitable for use in industrial automation, manufacturing equipment, process control systems, and safety relay functions where reliability and compliance are paramount.

Features a 24V DC coil voltage with 4 poles for multiple circuit control. Silver alloy contact material ensures reliable conductivity and durability. Coil resistance of 480 ohms and coil power consumption of 1200 mW. Designed to operate within a temperature range of -25°C to 70°C.

PCB mount type with solder terminal connections for secure installation. Compact dimensions measuring 55 mm length, 16.5 mm height, and 16.5 mm depth. High isolation of 4 kVrms between coil and contacts for enhanced safety.

Part of the SR6 series known for reliability in demanding environments. Explore more Force Guided Relays and related products in the electronics and electricals category on EnvMart.
