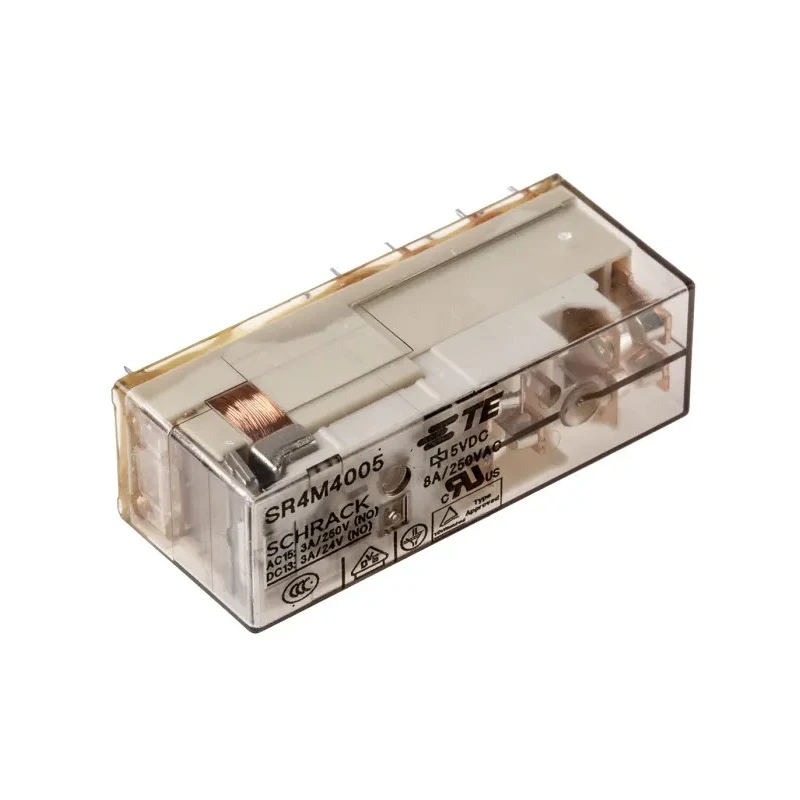

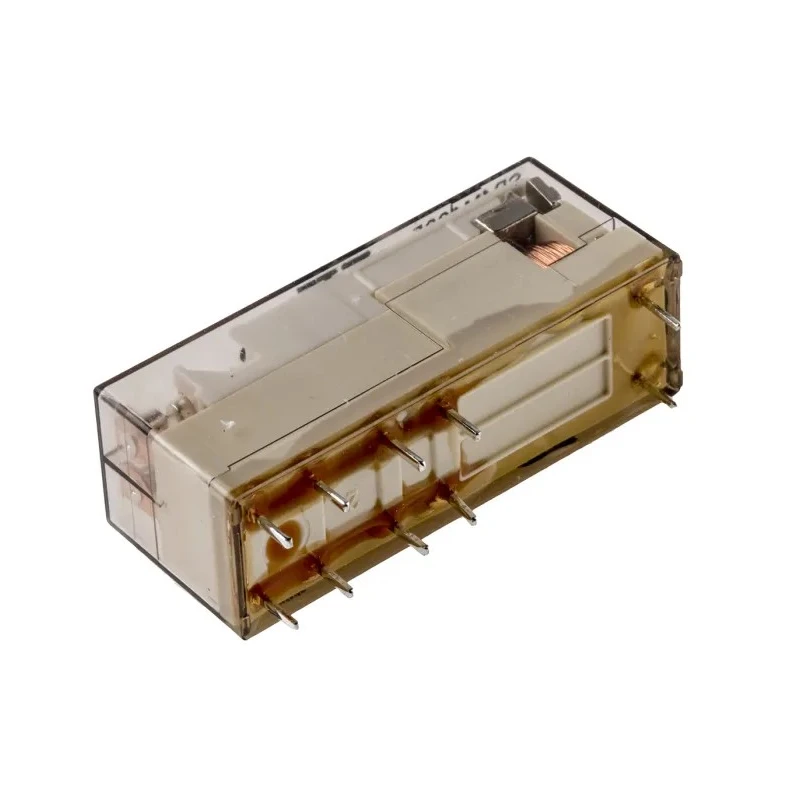

TE Connectivity PCB Force Guided Relay 4-Pole 5V DC Coil, 31Ω Coil Resistance, 806mW Coil Power SR4M4005
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Brand | TE Connectivity |
| Height | 16.5mm |
| Length | 40mm |
| Model | SR4M4005 |
| Depth | 13mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | SR4M |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Solder |
| Number of Poles | 4 |
| Coil Resistance | 31Ω |
| Coil Power | 806mW |
| Isolation Coil To Contact | 4kVrms |
Key Features
- PCB mount type suitable for circuit board integration.
- 4 poles configurable as 2N/O + 2N/C or 3N/O + 1N/C.
- Coil resistance of 31 ohms ensuring controlled power consumption.
- Coil power rated at 806 milliwatts supports efficient operation.
- Operating temperature range from -25°C to +70°C for versatile conditions.
- Silver alloy contact material provides reliable electrical performance.
- Solder terminal type allows secure and permanent connections.
- Compact size with length 40mm, height 16.5mm, and depth 13mm.
Product Description
TE Connectivity SR4M4005 PCB Force Guided Relay offers reliable and safe switching for industrial and automation applications. This 4-pole relay operates with a 5V DC coil voltage and provides force guided contacts compliant with EN50205 standards. Its coil resistance is 31Ω and coil power consumption is 806mW, ensuring efficient operation with low heat generation.
The relay is designed for PCB mounting with solder terminals, making it ideal for integration into printed circuit boards. Its contact material is a silver alloy (AgSnO2) providing long service life and excellent conductivity. The relay contacts can be arranged as either 2 normally open plus 2 normally closed or 3 normally open plus 1 normally closed, offering flexibility for safety relay circuits.
Operating temperature range from -25°C to +70°C allows use in varied environmental conditions. The relay's insulation between the coil and contacts is rated to withstand 4kVrms, contributing to the electrical isolation and safety.
Mechanical dimensions include a length of 40mm, height of 16.5mm, and depth of 13mm, making it compact for efficient board layouts. This product is manufactured in the Czech Republic and meets RoHS compliance for environmental standards.
PCB mount type ensures easy integration into circuits. 4 poles configurable for versatile applications. Efficient coil resistance and power ratings. Reliable silver alloy contacts. Wide operating temperature range. High insulation voltage for safety.
Compact and durable construction. Compliant with RoHS directive. This TE Connectivity relay is suitable for electrical, automation, industrial machinery, and safety control systems. Explore more relays and Force Guided Relay options in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a 5V DC coil voltage and has a power rating of 806 milliwatts.
The coil resistance is 31 ohms, which helps ensure controlled power consumption.
The relay has a length of 40mm, a height of 16.5mm, and a depth of 13mm.
This relay has 4 poles that can be configured as either 2 normally open plus 2 normally closed or 3 normally open plus 1 normally closed.
The operating temperature range is from -25°C to +70°C, allowing it to function in various environmental conditions.
It uses solder terminals for secure and permanent connections.
The contact material is silver alloy, which provides reliable electrical performance.
The insulation between the coil and contacts is rated to withstand 4kVrms, contributing to electrical isolation and safety.
This product is manufactured in the Czech Republic.
Yes, it meets RoHS compliance for environmental standards.
This relay is suitable for electrical, automation, industrial machinery, and safety control systems.
This relay belongs to the SR4M series.
