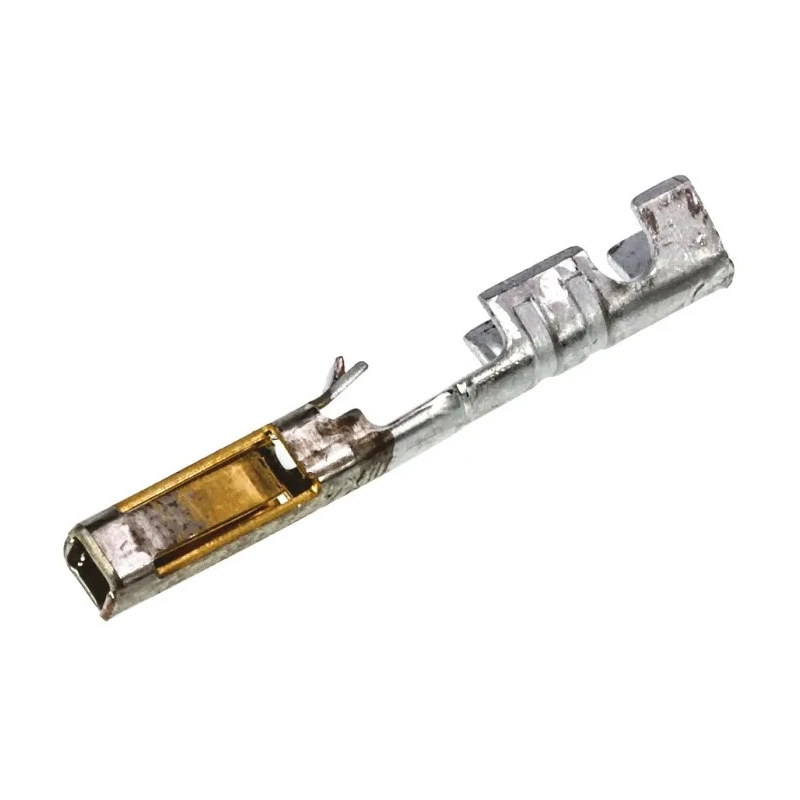

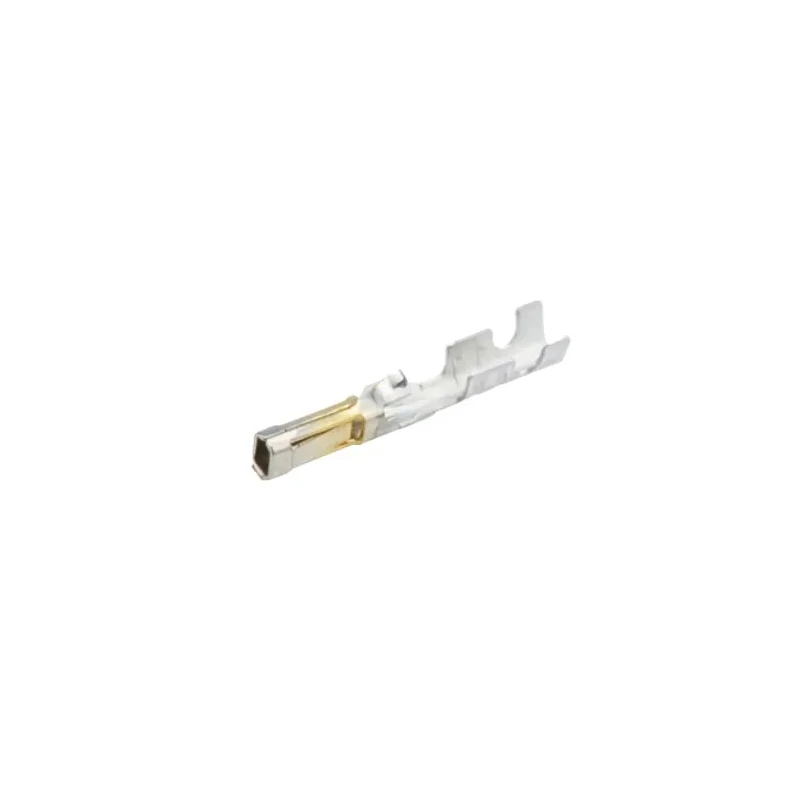

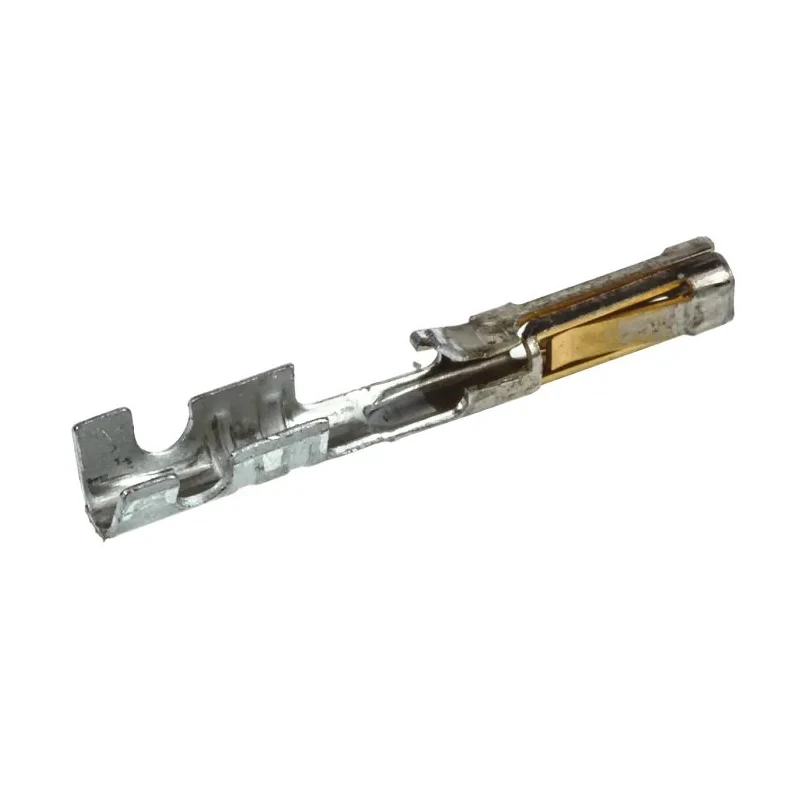

Molex 70058 Series Female Crimp Terminal, 24 AWG Min Crimp, 22 AWG Max, Phosphor Bronze, Gold Plated, 3A Current 16-02-0104
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Molex |
| Current | 3A |
| Gender | Female |
| Contact Material | Phosphor Bronze |
| Series | 70058 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | SL Connector Housing |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.3mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 22AWG |
| Maximum Contact Resistance | 15mΩ |
| For Reference only | 70058 and 71851 Series also used with 70450 Series Housings |
Key Features
- Constructed with fatigue-resistant phosphor bronze material for enhanced durability.
- Gold plating provides corrosion resistance and reliable electrical connections.
- Compatible with SL series connectors, ensuring a secure and gas-tight termination.
- Operating temperature range from -40°C to 105°C for use in varied environments.
- Low-halogen composition minimizes toxic fume emission when heated.
- Ideal for applications in electronics manufacturing, aerospace, automotive, and power utilities.
- Gold-plated contact ensures consistent conductivity and resistance to moisture.
- Termination achieved through reliable crimp technology for secure wire connections.
Product Description
Molex 16-02-0104 female crimp terminal is engineered for precision and reliability in terminating wires onto printed circuit boards. This crimp terminal supports wire sizes from 24 AWG minimum to 22 AWG maximum and is intended for use with SL connector housings. With a current rating of 3A, it offers dependable electrical performance in demanding applications.
Manufactured from phosphor bronze, a fatigue-resistant material, the contact plating features gold to ensure superior corrosion resistance and stable electrical connections. The crimp termination technology guarantees a gas-tight, moisture-proof seal, ideal for environments where airborne contaminants are a concern.
Designed to operate flawlessly between -40°C and 105°C, this crimp terminal is suitable for diverse industrial sectors including electronics manufacturing, aerospace, automotive, and power utilities. Its low-halogen composition contributes to reduced toxic fume emissions during soldering or other heat processes.
The Molex 70058 Series is part of a broader range of SL series crimp contacts that include both male and female options, supporting wire sizes between 30 AWG and 22 AWG. This versatility ensures compatibility with various SL series connector housings for seamless integration into systems.
Constructed from fatigue-resistant phosphor bronze for longevity. Gold-plated contacts for corrosion resistance and reliable connectivity. Supports wire sizes from 24 AWG to 22 AWG with 3A current rating. Operates within a temperature range of -40°C to 105°C.
Compatible with SL connector housings ensuring secure fits. Low-halogen material for safer manufacturing environments. Gas-tight crimp provides dependable mechanical and electrical connection. Suitable for electronics, aerospace, automotive, and power utility applications.
Choose Molex brand for trusted quality and performance in Crimp Terminal solutions. Explore the Electronics & Electricals category for more connectors and crimp components to support your industrial and commercial needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crimp terminal supports wire sizes from 24 AWG minimum to 22 AWG maximum.
It has a current rating of 3A, suitable for various applications requiring reliable electrical performance.
The terminal is constructed from phosphor bronze, and it features gold plating for corrosion resistance and reliable electrical connections.
It operates within a temperature range of -40°C to 105°C, making it suitable for diverse environments.
This terminal is compatible with SL connector housings, ensuring a secure and gas-tight termination.
It utilizes crimp termination technology, providing a gas-tight and moisture-proof seal for dependable connections.
The maximum contact resistance is 15mΩ, ensuring efficient electrical conductivity.
Yes, it is designed for applications in electronics manufacturing, aerospace, automotive, and power utilities.
The low-halogen composition minimizes toxic fume emissions during soldering or other heat processes, contributing to safer manufacturing environments.
It belongs to the Molex 70058 Series, which includes both male and female crimp contacts.
The crimp terminal is manufactured in the United States.
The minimum wire size is 0.2mm², corresponding to the 24 AWG specification.
