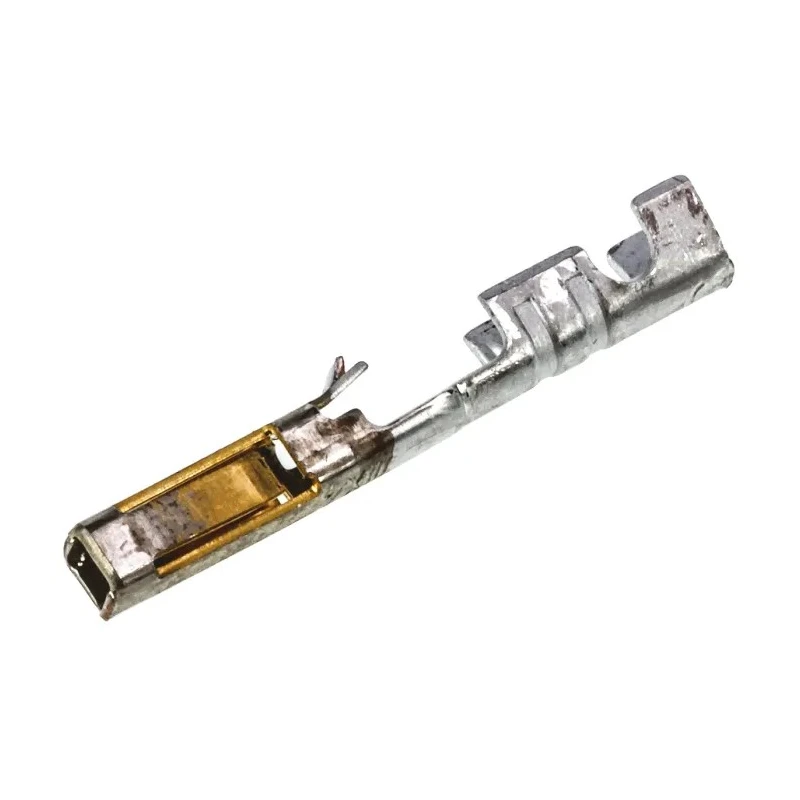

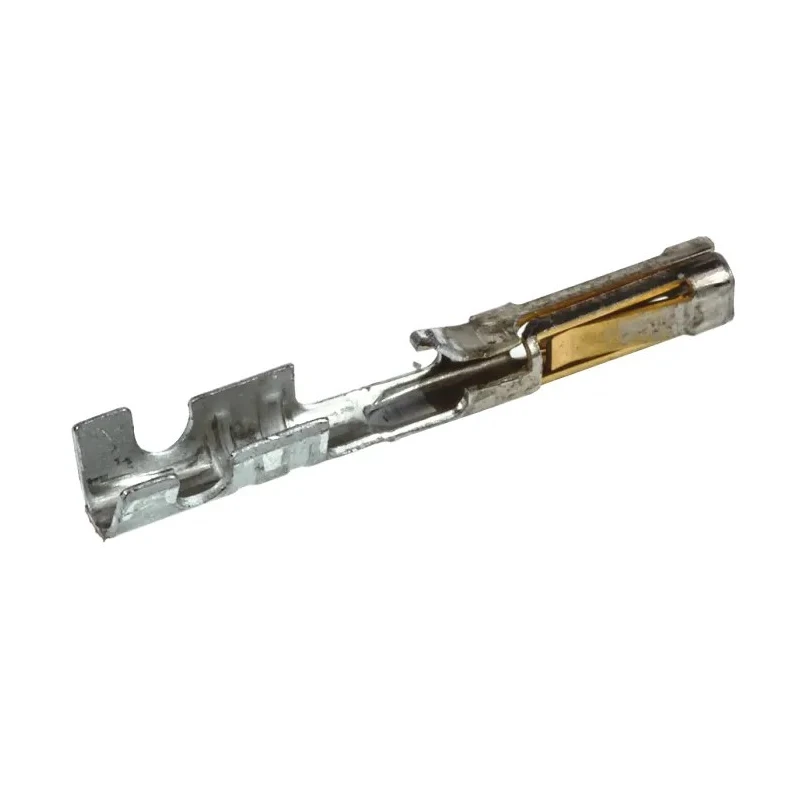

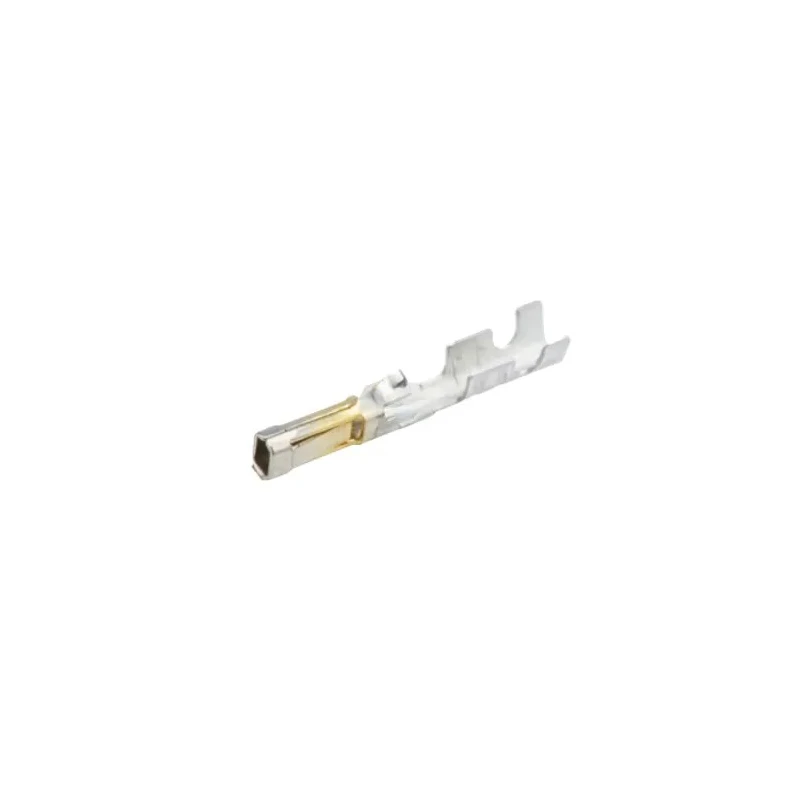

Molex 70058 Series Female Crimp Terminal, 24 AWG Min Crimp, 22 AWG Max, Gold Plated Contact, Phosphor Bronze 16-02-0104
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Molex |
| Current | 3A |
| Gender | Female |
| Contact Material | Phosphor Bronze |
| Series | 70058 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | SL Connector Housing |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.3mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 22AWG |
| Maximum Contact Resistance | 15mΩ |
| For Reference only | 70058 and 71851 Series also used with 70450 Series Housings |
Key Features
- Constructed from fatigue-resistant phosphor bronze for durability.
- Gold plating provides corrosion resistance in humid environments.
- Rated for maximum current of 3A ensuring reliable electrical performance.
- Operates in temperature range from -40°C to 105°C for diverse conditions.
- Designed for secure crimp termination with SL connector housings.
- Ensures gas-tight joins that prevent moisture and contaminants ingress.
- Low-halogen material composition reduces toxic fume emission during use.
- Ideal for applications in electronics manufacturing, aerospace, automotive, and power utilities.
Product Description
Molex 16-02-0104 female crimp terminal from the 70058 series offers a reliable, high-quality solution for terminating wires to printed circuit boards. Constructed from fatigue-resistant phosphor bronze with corrosion-resistant gold plating, this terminal supports wire sizes ranging from 24 AWG (minimum) to 22 AWG (maximum). It is designed to carry currents up to 3 amperes with a maximum contact resistance of 15 milliohms.
The crimp termination style ensures a gas-tight connection that protects against moisture, airborne contaminants, and mechanical failure, making it suitable for rigorous industrial environments. The terminal operates effectively within a temperature range of -40°C to 105°C, providing dependable performance across a variety of challenging conditions.
This crimp terminal is compatible with SL connector housings and is widely used in electronics manufacturing, aerospace sectors, automotive industries, and power utility applications. Its low-halogen composition limits toxic fume release when exposed to heat, enhancing safety in manufacturing and operational settings.
Key features include a phosphor bronze body for superior fatigue resistance and gold plating for excellent corrosion protection. The product is made in the United States and adheres to high manufacturing standards, ensuring consistent quality.
Fatigue-resistant phosphor bronze construction provides high durability. Gold plating ensures corrosion resistance and consistent connectivity. Rated for 3A current suitable for medium power applications. Operates reliably across wide temperature ranges (-40°C to 105°C).
Compatible with SL series connector housings for versatile use. Provides gas-tight crimp joints for secure and moisture-proof connections. Low-halogen material reduces harmful emissions during manufacturing or operation.
Commonly employed in aerospace, automotive, and power utility sectors. Explore more high-quality Crimp Terminals and connectors at EnvMart to suit your industrial, electronics manufacturing, and maintenance needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crimp terminal is rated for a maximum current of 3A, ensuring reliable electrical performance in medium power applications.
It supports wire sizes ranging from 24 AWG (minimum) to 22 AWG (maximum), accommodating various wiring needs.
The terminal is constructed from fatigue-resistant phosphor bronze and features gold plating for corrosion resistance.
It operates effectively within a temperature range of -40°C to 105°C, suitable for various environmental conditions.
This model utilizes a crimp termination style, designed to provide secure and gas-tight connections.
Yes, it is designed for use with SL connector housings, enhancing its versatility in applications.
The maximum contact resistance is 15 milliohms, ensuring efficient electrical connectivity.
This product is made in the United States, adhering to high manufacturing standards.
It is widely employed in electronics manufacturing, aerospace, automotive, and power utility sectors.
The low-halogen material composition reduces toxic fume emissions during use, enhancing safety in operational settings.
This terminal is female, designed for secure connections with compatible male counterparts.
The crimp termination style provides gas-tight joints that prevent moisture and contaminants from ingress, ensuring reliable performance.
