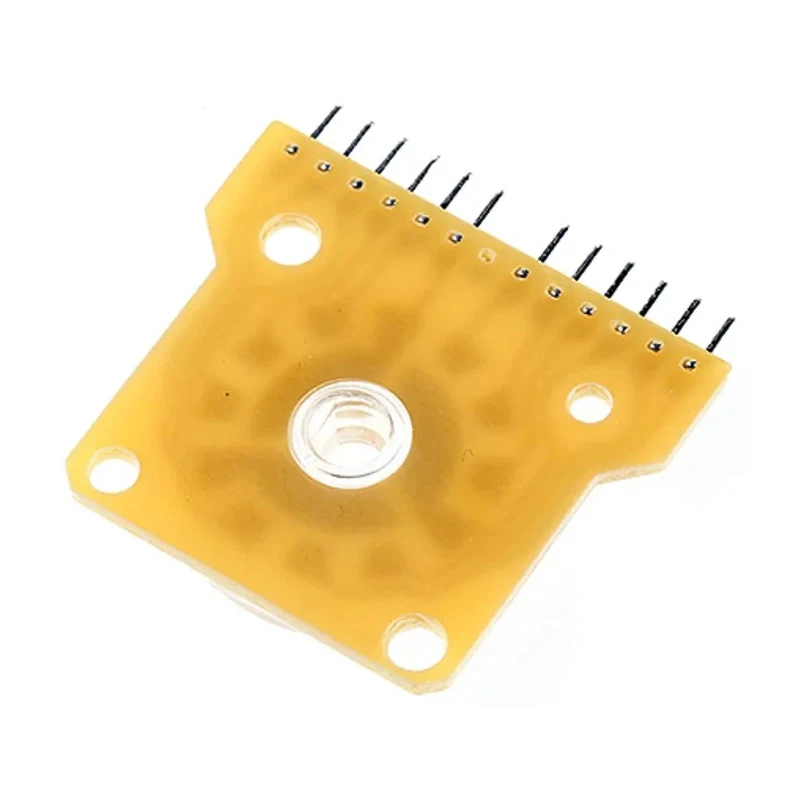

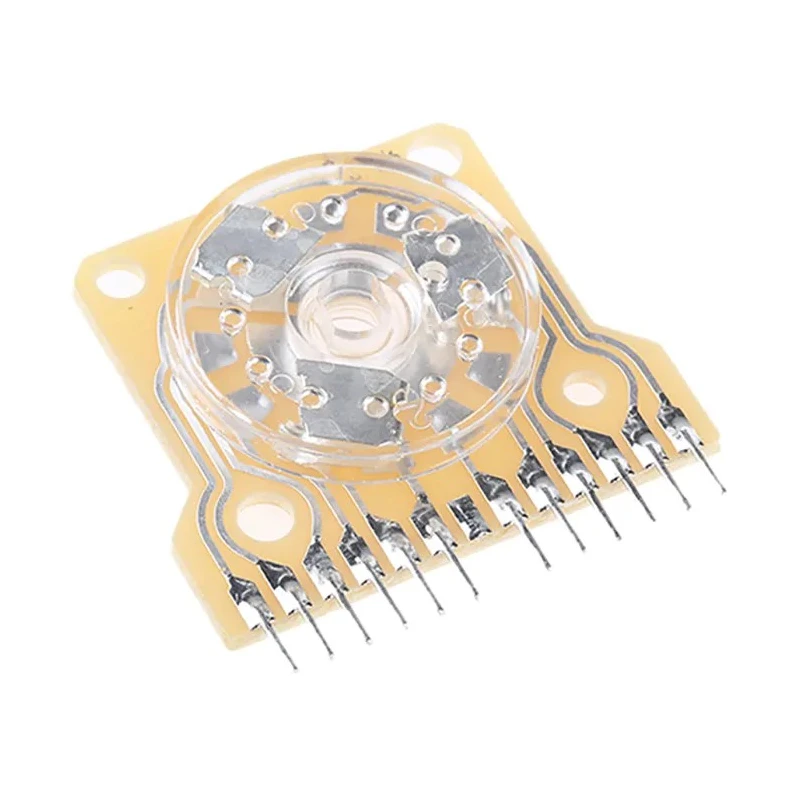

Lorlin Rotary Switch Wafer PCB Mounting 3 Positions 3 Contacts PT602-007

Lorlin PT602-007 Rotary Switch Wafer is designed for PCB mounting with 3 positions and 3 contacts, making it suitable for various electrical and automation systems requiring reliable rotary switching.

This rotary switch mechanism features an adjustable stop and can accommodate up to five additional wafers from the Lorlin range, enhancing modularity and customization in circuit design.

The terminal spacing follows a 2.54mm pitch standard, ensuring compatibility with common PCB layouts. The shaft diameter is 6mm, suitable for standard rotary switch shafts and ensuring robust mechanical connection.

The wafers are of break-before-make type, providing safe switching to prevent simultaneous contact, important in many electronic applications. A spacer kit is also available to maintain a 6.35mm pitch between wafers, ensuring proper alignment and spacing in multi-wafer configurations.

Rotary switch mechanism with adjustable stop up to five extra wafers. Spacer kit maintains 6.35mm wafer pitch. Terminal spacing on 2.54mm pitch. Non-interchangeable drive wafer supplied. Shaft diameter 6mm. All wafers are break-before-make.

Spacer kit includes 10 spacers, 2 front insulators, 1 rear driver shaft, 1 retaining strap, 2 tie rods, and 2 push-on fixings. This product adheres to RoHS standards, originating from the United Kingdom, ensuring compliance with environmental and safety regulations.
