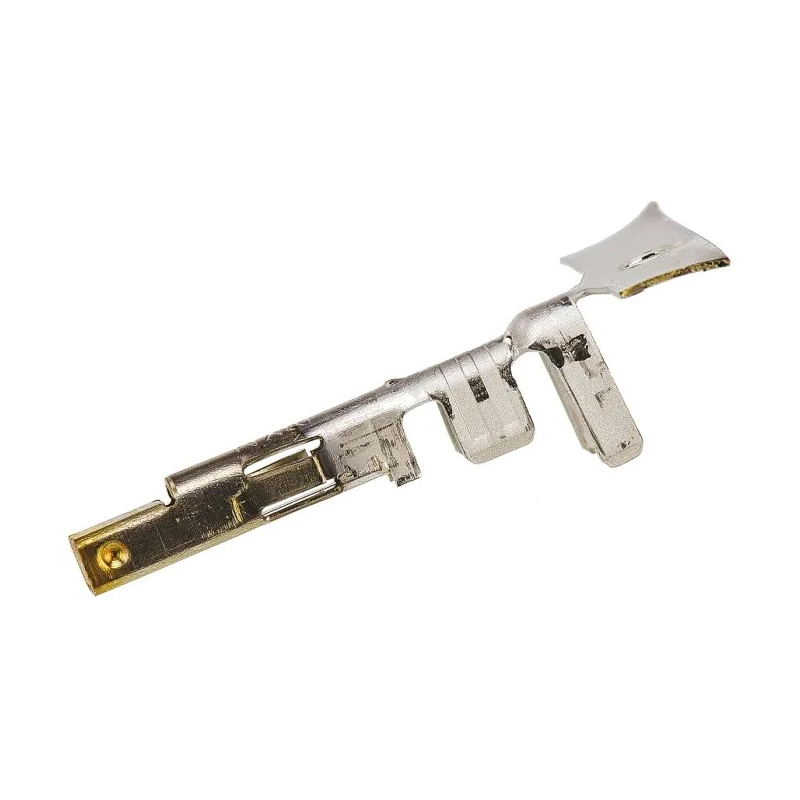

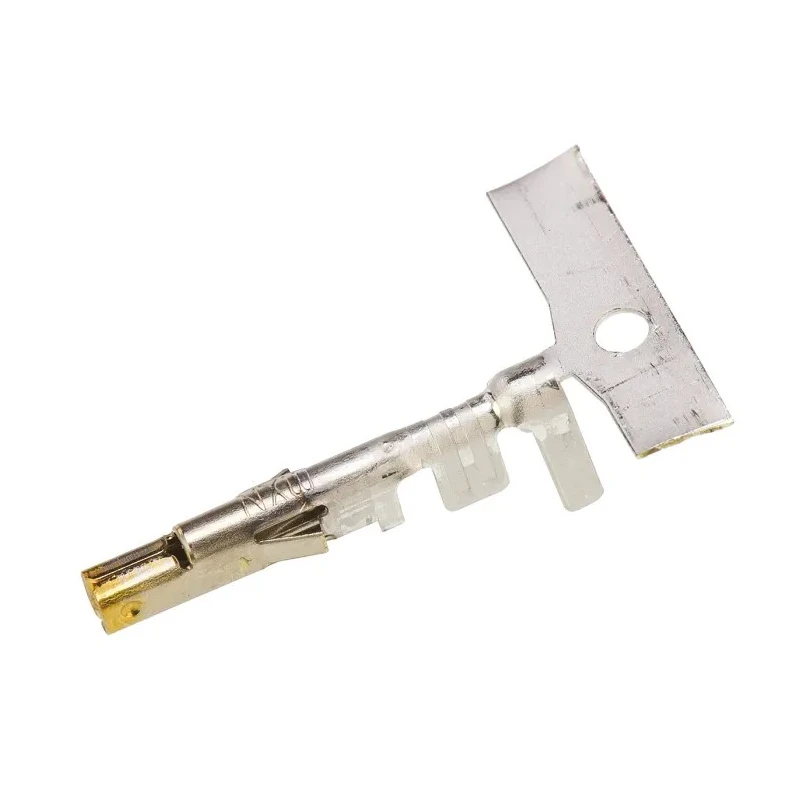

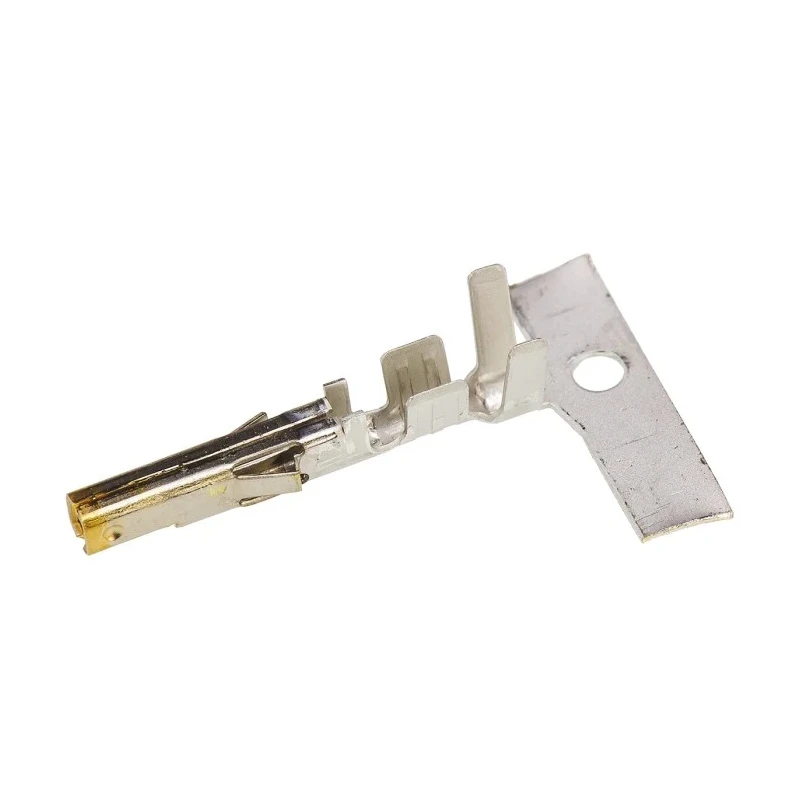

Molex 5556 Series Female Crimp Terminal Gold Plated Brass Contact, 16 AWG Wire Size 9A Current Capacity 39-00-0089
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Molex |
| Current | 9A |
| Gender | Female |
| Contact Material | Brass |
| Series | 5556 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | Mini-Fit Jr, Mini-Fit TPA and Mini-Fit BMI Connector Housings |
| Contact Plating | Gold |
| Maximum Wire Size mm² | 1.3mm² |
| Minimum Wire Size AWG | 16AWG |
| Maximum Contact Resistance | 10mΩ |
Key Features
- Supports wire sizes up to 1.3 mm² (16 AWG) for versatile electrical applications.
- Gold plating enhances electrical conductivity and corrosion resistance.
- Designed for reliable crimp termination compatible with Mini-Fit Jr, Mini-Fit TPA, and Mini-Fit BMI connector housings.
- Operates efficiently within a temperature range of -40°C to +105°C.
- Ensures low maximum contact resistance of 10 mΩ for effective power transmission.
- Rated for a maximum current of 9 A, suitable for robust electrical connections.
- Constructed from brass for strength and durability in demanding environments.
- Ideal for use in automation systems, wire-to-board and wire-to-wire electrical assemblies.
Product Description
Molex 39-00-0089 Female Crimp Terminal features a gold-plated brass contact designed for use with 16 AWG wire sizes, supporting current up to 9 A. This high-performance crimp terminal is engineered for use with Mini-Fit Jr, Mini-Fit TPA, and Mini-Fit BMI connector housings, ensuring reliable and durable electrical connections.
Constructed from brass with gold plating, the terminal offers excellent electrical conductivity and resistance to corrosion, enhancing its performance and longevity in both industrial and commercial applications. The Crimp Terminal maintains a low maximum contact resistance of 10 milliohms, providing efficient power transfer.
Operating effectively in harsh environments, it supports a broad temperature range from -40°C to +105°C. The product is ideal for wire-to-board and wire-to-wire connections in electronic assemblies and is extensively used in automation and mechanical systems that require dependable connectivity.
This terminal is suitable for various electrical interconnection needs, including power delivery in control systems, modular installations using Mini-Fit Jr housings, and general industrial wiring applications.
The gold plating not only improves conductivity but also protects against oxidation and wear, ensuring a long service life in demanding conditions. Installation is optimized by using dedicated crimp tools for 16 AWG connectors, maintaining secure and reliable crimps.
Supports wire sizes up to 1.3 mm² (16 AWG) for versatile applications. Gold plating enhances conductivity and corrosion resistance. Compatible with Mini-Fit Jr, Mini-Fit TPA, and Mini-Fit BMI connector housings. Wide operating temperature range from -40°C to +105°C.
Low maximum contact resistance of 10 mΩ for efficient power transfer. Maximum current rating of 9 A for robust performance. Brass construction ensures durability and strength. Designed for use in automation and electrical assembly applications.
Explore more components and connectors within the Molex range at EnvMart to meet your precise industrial and electrical needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current capacity of this crimp terminal is 9 A, making it suitable for robust electrical connections.
This terminal supports wire sizes up to 1.3 mm², which corresponds to 16 AWG.
The terminal is constructed from brass and features gold plating, which enhances its electrical conductivity and corrosion resistance.
It operates effectively within a temperature range of -40°C to +105°C.
This crimp terminal is designed for use with Mini-Fit Jr, Mini-Fit TPA, and Mini-Fit BMI connector housings.
The maximum contact resistance is 10 mΩ, ensuring efficient power transmission.
Installation is optimized by using dedicated crimp tools for 16 AWG connectors to maintain secure and reliable crimps.
It is ideal for wire-to-board and wire-to-wire connections in electronic assemblies, particularly in automation systems.
This crimp terminal is female, designed for reliable connections with compatible male connectors.
This terminal belongs to the Molex 5556 series, known for its reliable crimp termination.
The country of origin for this crimp terminal is the United States.
This terminal uses crimp termination, which is designed for secure electrical connections.
