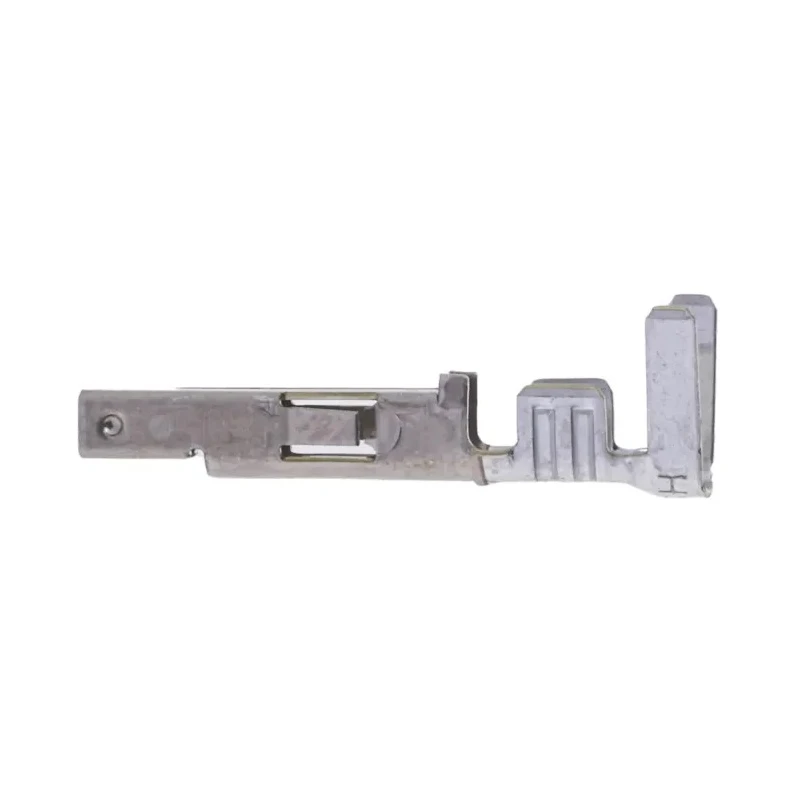

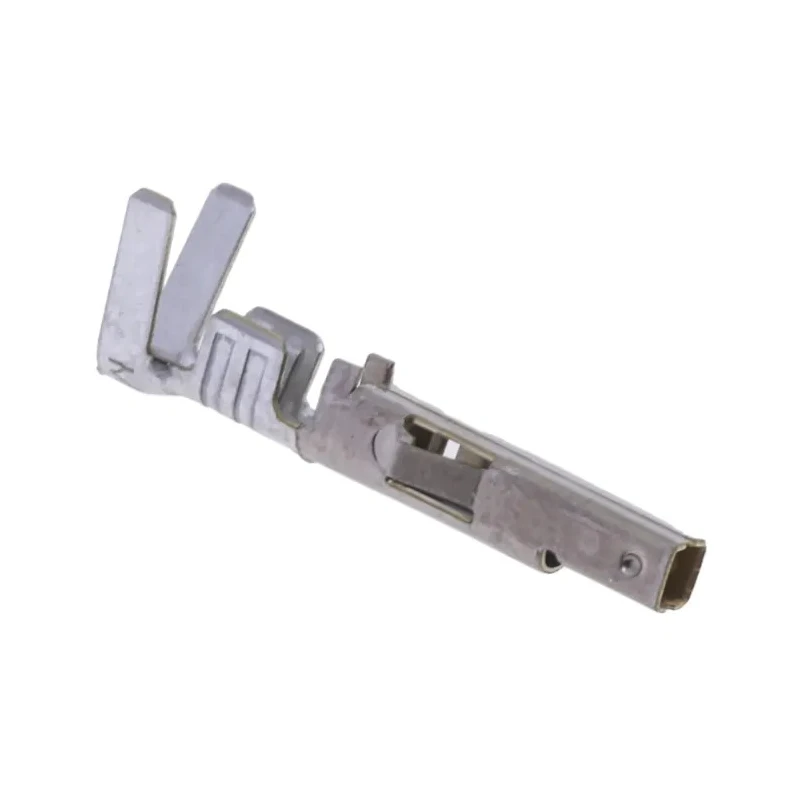

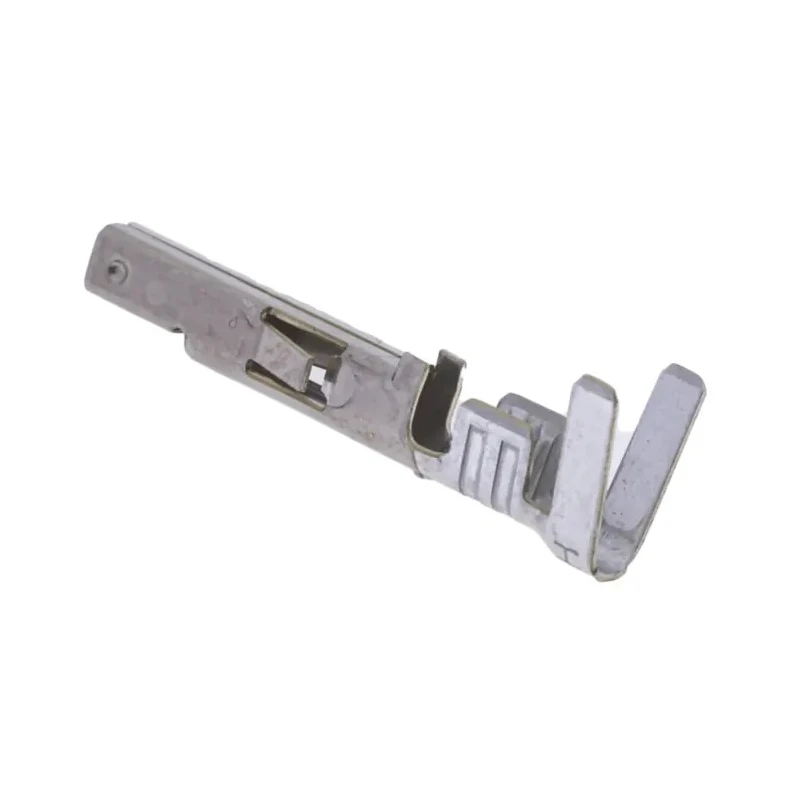

Molex 5556 Series Female Crimp Terminal 24 AWG Min, 18 AWG Max, Brass Contact with Gold Plating 9A Current 39-00-0429
Specifications
| Country of Origin | India |
|---|---|
| Brand | Molex |
| Current | 9A |
| Gender | Female |
| Contact Material | Brass |
| Series | 5556 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | Mini-Fit Jr Connector Housing |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.8mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 18AWG |
| Maximum Contact Resistance | 10mΩ |
Key Features
- High-quality brass contact provides excellent mechanical strength.
- Gold plating ensures superior corrosion resistance and reliable conductivity.
- Supports wire sizes from 24 AWG (0.2 mm²) minimum to 18 AWG (0.8 mm²) maximum.
- Maximum contact resistance of 10 mΩ ensures efficient electrical performance.
- Operational temperature range from -40°C to 105°C for versatile application environments.
- Designed for crimp termination compatible with Mini-Fit Jr connectors.
- Ideal for automotive, industrial automation, medical, communications, and consumer electronics applications.
- Locking tangs secure terminal firmly within the connector housing.
Product Description
Molex 39-00-0429 is a female crimp terminal from the 5556 Series, engineered for use with Mini-Fit Jr Connector Housings. It features a brass contact material with selective gold plating to guarantee durability and optimal corrosion resistance. This terminal supports wire sizes ranging from 24 AWG (0.2 mm²) minimum to 18 AWG (0.8 mm²) maximum and is rated to carry currents up to 9A. The maximum contact resistance of 10 milliohms ensures high-performance electrical conductivity.
The crimp termination type is designed to create secure mechanical and electrical joints compatible with the Mini-Fit Jr connectors, widely used in industrial, automotive, medical, communication, and consumer electronics sectors. The terminal’s operating temperature range spans from -40°C to +105°C, enabling reliable function under diverse environmental conditions.
Multiple points of contact enhance the connection security, while locking tangs help maintain the terminal firmly in the connector housing, preventing accidental disconnection. The terminal accommodates wire insulation diameters between approximately 1.30 mm and 3.10 mm, providing flexibility across various cable types.
High-quality brass contact for mechanical resilience. Gold plating improves corrosion resistance and electrical contact. Wire size compatibility: 24 AWG to 18 AWG. Rated current of 9 amperes for robust power delivery. Low contact resistance of 10 milliohms for efficient signal transmission.
Wide operating temperature range: -40°C to 105°C. Locking tangs secure terminal in housing for reliable assembly. Compatible with Mini-Fit Jr connector housings.
This terminal is suitable for various industrial, automated, and electrical applications requiring dependable and high-quality crimp contacts. The Molex 5556 Series Female Crimp Terminal supports versatile design requirements with its selective plating and multiple contact points, facilitating stable and secure electrical connections.
EnvMart offers this Molex 5556 Series Female Crimp Terminal to customers needing high-performance crimp contacts for applications in sectors such as automotive, manufacturing, communications, and consumer electronics.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This female crimp terminal is rated to carry a maximum current of 9A.
It supports wire sizes ranging from 24 AWG (0.2 mm²) minimum to 18 AWG (0.8 mm²) maximum.
The operational temperature range for this terminal is from -40°C to 105°C.
The contact material is brass, which is plated with gold for enhanced corrosion resistance.
Yes, this crimp terminal is designed for use with Mini-Fit Jr connector housings.
The maximum contact resistance is 10 milliohms (10 mΩ), ensuring efficient electrical performance.
The crimp termination type creates secure mechanical and electrical joints, ensuring a reliable connection.
It is suitable for applications in automotive, industrial automation, medical, communications, and consumer electronics sectors.
It accommodates wire insulation diameters between approximately 1.30 mm and 3.10 mm.
Multiple points of contact and locking tangs secure the terminal firmly within the connector housing, preventing accidental disconnection.
The country of origin for this terminal is India.
This terminal belongs to the Molex 5556 Series.
