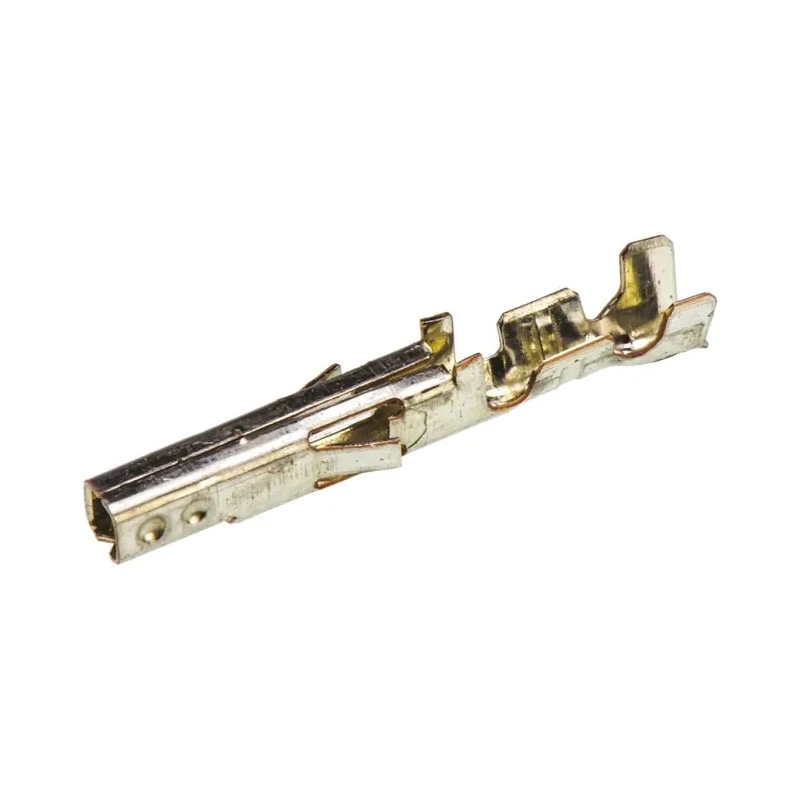

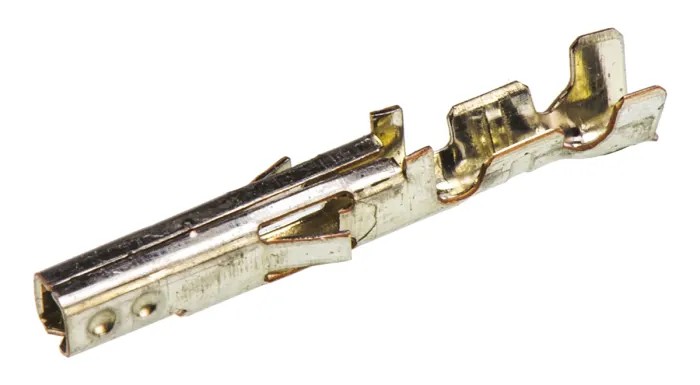

Molex 5556 Series Female Crimp Terminal for Mini-Fit Jr, Mini-Fit TPA, and Mini-Fit BMI Connector Housings, 28 39-00-0066
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Molex |
| Current | 9A |
| Gender | Female |
| Contact Material | Phosphor Bronze |
| Series | 5556 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| For Use With | Mini-Fit Jr, Mini-Fit TPA and Mini-Fit BMI Connector Housings |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.08mm² |
| Maximum Wire Size mm² | 0.35mm² |
| Minimum Wire Size AWG | 28AWG |
| Maximum Wire Size AWG | 22AWG |
| Maximum Contact Resistance | 10 |
Key Features
- Constructed of phosphor bronze contact material for durability and conductivity.
- Features tin plating to enhance corrosion resistance.
- Supports crimp termination for secure wire connections.
- Operates reliably in temperatures ranging from -40°C to 85°C.
- Suitable for automotive wiring, power distribution, and board-to-board connections.
- Maximum contact resistance of 10 milliohms ensures efficient electrical performance.
- Designed specifically for use with Mini-Fit Jr, Mini-Fit TPA, and Mini-Fit BMI connector housings.
- Not compatible with lead-free solder processes.
Product Description
The Molex 5556 Series Female Crimp Terminal model 39-00-0066 is engineered for reliable electrical connectivity in demanding industrial, automotive, and electronic applications. Designed to fit Mini-Fit Jr, Mini-Fit TPA, and Mini-Fit BMI connector housings, this crimp terminal supports wire sizes ranging from 0.08mm² (28 AWG) to 0.35mm² (22 AWG) and carries a maximum current of 9A.
Constructed from high-quality phosphor bronze, the terminal ensures excellent conductivity and mechanical strength. The tin plating on the contact surface improves corrosion resistance, enhancing performance and longevity in harsh environments.
Its crimp termination design facilitates quick and secure wire connections, vital for efficient assembly and maintenance. The terminal withstands operating temperatures from -40°C to 85°C, making it suitable for use in automotive wiring, power distribution systems, and board-to-board connections where environmental conditions vary.
This product is not designed for lead-free solder processes but provides dependable electrical contact in various wiring applications requiring durability and precision. The maximum contact resistance of 10 milliohms helps to maintain signal integrity and reduces power loss.
Phosphor bronze contact material for strength and conductivity. Tin plating offers superior corrosion resistance. Crimp termination design ensures firm wire retention. Compatible with Mini-Fit Jr, Mini-Fit TPA, and Mini-Fit BMI connector housings.
Wide operating temperature range: -40°C to 85°C. Maximum contact resistance: 10 milliohms for efficient conductivity. Rated for 9A current, ideal for moderate power applications. Wire size support from 28 AWG minimum to 22 AWG maximum.
This Molex Crimp Terminal is ideal for industrial automation, automotive wiring harnesses, power distribution networks, and electronic assembly, providing secure, low-resistance connections essential for reliable device operation.
Explore more Molex connector solutions and related high-quality electronic components on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this crimp terminal is 9A, making it suitable for moderate power applications.
It operates reliably within a temperature range of -40°C to 85°C, allowing for use in various environmental conditions.
This crimp terminal is designed specifically for use with Mini-Fit Jr, Mini-Fit TPA, and Mini-Fit BMI connector housings.
It supports wire sizes ranging from 0.08mm² (28 AWG) to 0.35mm² (22 AWG).
The terminal is constructed from phosphor bronze, which provides excellent conductivity and mechanical strength.
Yes, it features tin plating on the contact surface, which enhances corrosion resistance.
The maximum contact resistance is 10 milliohms, ensuring efficient electrical performance.
It utilizes a crimp termination design, which facilitates quick and secure wire connections.
No, this terminal is not designed for lead-free solder processes.
It is suitable for automotive wiring, power distribution systems, and board-to-board connections.
The crimp terminal is manufactured in the United States.
The specific dimensions and weight of this crimp terminal are not provided in the available data.
