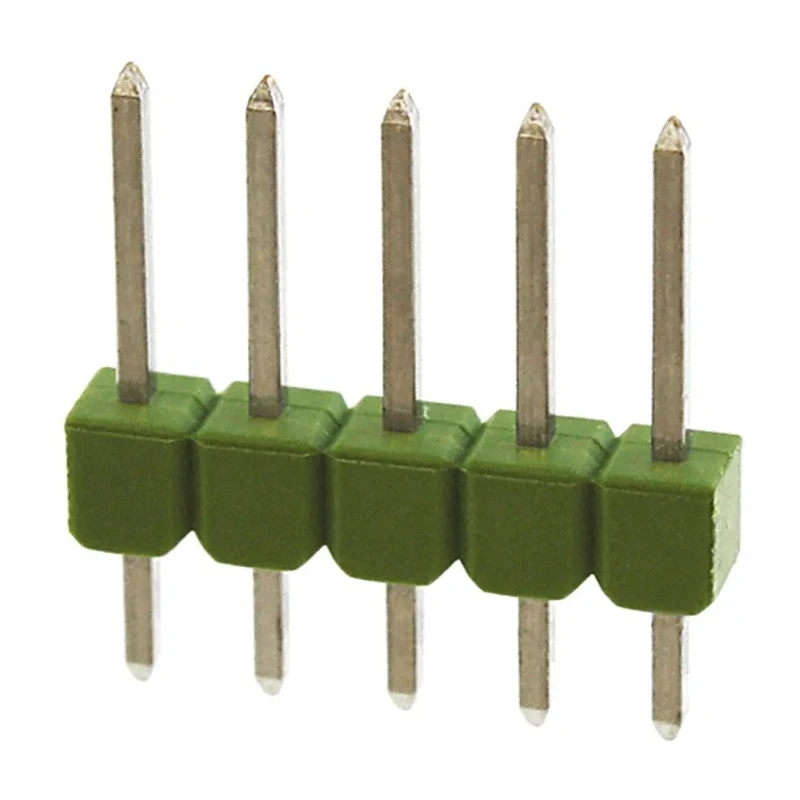

TE Connectivity AMPMODU MOD II Series Straight Through Hole Pin Header, 5 Contacts, 2.54 mm Pitch, 1 Row, Unshrouded 826926-5
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 750V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 3A |
| Model | 826926-5 |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Brass |
| Series | AMPMODU MOD II |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 5 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 3.2mm |
| Mating Pin Length | 6.7mm |
Key Features
- Features a straight orientation suitable for board-to-board and wire-to-board applications.
- Constructed with brass contacts plated with tin for corrosion resistance.
- Housing is made of durable polybutylene terephthalate material.
- Supports a current rating of 3A and voltage up to 750V.
- Designed for through-hole mount type with solder termination.
- Operates reliably within a temperature range from -65°C to 105°C.
- Pin headers have a mating pin length of 6.7 mm and tail pin length of 3.2 mm.
- Unshrouded single row configuration allows flexible breakaway to required sizes.
Product Description
TE Connectivity 826926-5 AMPMODU MOD II Series Straight Through Hole Pin Header is designed with 5 male contacts in a single row with 2.54 mm pitch, providing reliable electrical connectivity for printed circuit boards. This unshrouded pin header facilitates versatile breakaway capability allowing customization to required size, optimizing assembly efficiency.
The contacts are made of brass material plated with tin to ensure excellent conductivity and corrosion resistance. The housing uses polybutylene terephthalate for durability under industrial operating conditions. Rated for 3A current and 750V voltage, it supports a wide range of electronic applications.
This component supports through-hole mounting with solder termination, providing a secure and reliable connection. It operates effectively in environments ranging from -65°C to 105°C, making it suitable for robust industrial, automotive, and telecommunications environments.
The design includes a mating pin length of 6.7 mm and tail pin length of 3.2 mm, compatible with other AMPMODU Mod II connectors. The straight orientation of the pin header supports board-to-board and wire-to-board connections, enhancing flexibility in electronics design.
These pin headers are widely used in automotive controls, industrial and test equipment, computers, telecommunications, medical instruments, storage equipment, and household appliances. The AMPMODU Mod II interconnect system is a recognized standard for automation and control applications, known for reliability and economic efficiency.
Features a straight orientation suitable for board-to-board and wire-to-board applications. Constructed with brass contacts plated with tin for corrosion resistance. Housing is made of durable polybutylene terephthalate material.
Supports a current rating of 3A and voltage up to 750V. Designed for through-hole mount type with solder termination. Operates reliably within a temperature range from -65°C to 105°C. Pin headers have a mating pin length of 6.7 mm and tail pin length of 3.2 mm.
Unshrouded single row configuration allows flexible breakaway to required sizes. Suitable for use in automotive controls, industrial equipment, telecommunications, medical instruments, and other industrial applications. Explore more connectors and related products at EnvMart for your industrial and electronic component needs.
Explore more products in our PCB Pin Header category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This pin header supports a current rating of 3A.
It is rated for a maximum voltage of 750V.
The contacts in this connector have a pitch of 2.54 mm.
The contacts are made of brass plated with tin, and the housing is constructed from polybutylene terephthalate.
It operates reliably within a temperature range from -65°C to 105°C.
This model features 5 male contacts.
It is designed for through-hole mounting with solder termination.
The mating pin length is 6.7 mm, while the tail pin length is 3.2 mm.
This pin header is unshrouded, allowing for flexible breakaway to required sizes.
It supports board-to-board and wire-to-board connector systems.
This model is suitable for use in automotive controls, industrial equipment, telecommunications, and medical instruments.
The country of origin for this pin header is India.
