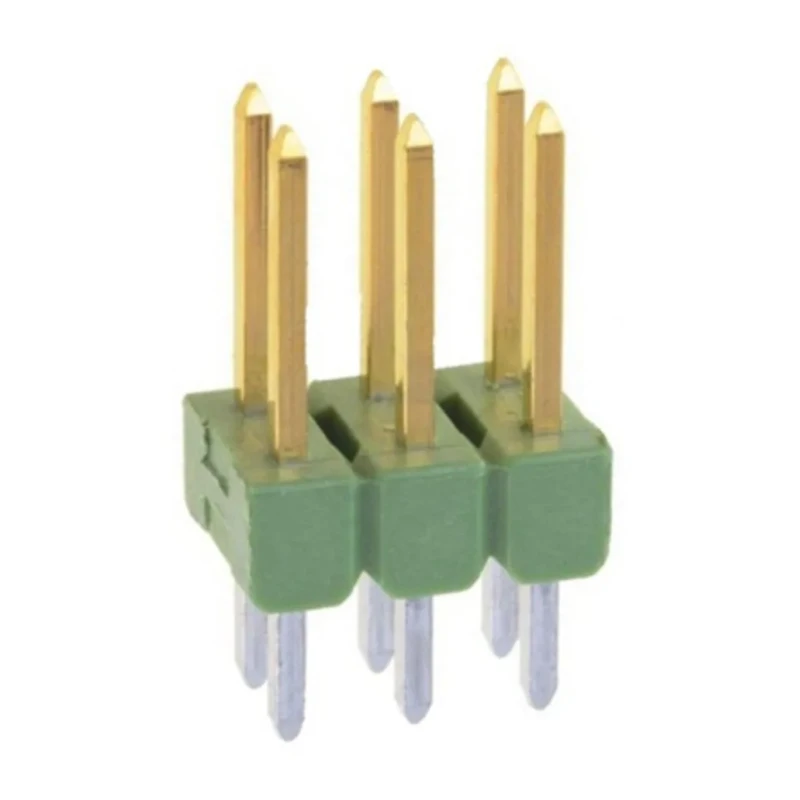

TE Connectivity AMPMODU MOD II Series Straight Through Hole Pin Header, 6 Contacts, 2.54 mm Pitch, 2 Row, Unshrouded 826632-3
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 750V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 3A |
| Model | 826632-3 |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Brass |
| Series | AMPMODU MOD II |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 6 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 3.2mm |
| Mating Pin Length | 6.7mm |
Key Features
- Provides reliable electrical connections in PCB applications.
- 6 contact points arranged in 2 rows with 2.54 mm pitch.
- Unshrouded straight pin configuration for versatile board-to-board or wire-to-board connections.
- Constructed with gold-plated brass contacts for durability and conductivity.
- Polybutylene terephthalate housing ensures robust insulation and mechanical strength.
- Suitable for operating temperatures from -65°C to 105°C.
- Designed to handle up to 3A current at 750V voltage rating.
- Tail pin length is 3.2 mm with mating pin length of 6.7 mm.
Product Description
TE Connectivity 826632-3 AMPMODU MOD II Series straight through hole pin header features 6 contacts arranged in 2 rows at a 2.54 mm pitch. This unshrouded pin header offers reliable and versatile connections for printed circuit boards. The molded housing is made from polybutylene terephthalate which offers excellent insulation and mechanical durability.
The brass contacts are gold-plated to ensure superior conductivity and corrosion resistance. The pin header supports an operating current of 3A and voltage up to 750V, withstanding temperatures ranging from -65°C to 105°C, making it suitable across a broad range of industrial environments.
The design incorporates a straight orientation for through hole mounting with tail pins measuring 3.2 mm and mating pins 6.7 mm in length. These headers can be broken down to required size for customized PCB applications, enabling fast and cost-effective installation.
This pin header is extensively used in automotive controls, industrial automation, test equipment, computing systems, telecommunications, medical devices, storage solutions, and various commercial appliances.
Provides reliable electrical connections in PCB applications. 6 contact points arranged in 2 rows with 2.54 mm pitch. Unshrouded straight pin configuration for versatile board-to-board or wire-to-board connections. Constructed with gold-plated brass contacts for durability and conductivity.
Polybutylene terephthalate housing ensures robust insulation and mechanical strength. Operational temperature range from -65°C to 105°C. Supports current up to 3A and voltage rating of 750V. Solder termination for secure PCB mounting.
Widely used in multiple industrial and commercial electronic applications. Explore the extensive range of TE Connectivity connectors and electronic components at EnvMart for premium quality and dependable performance.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this pin header is 750V.
This model supports a current capacity of up to 3A.
The contacts in this pin header are arranged at a pitch of 2.54 mm.
The housing of this pin header is made from polybutylene terephthalate.
This pin header operates within a temperature range of -65°C to 105°C.
This model features 6 contacts arranged in 2 rows.
This pin header uses solder termination for secure PCB mounting.
The tail pin length is 3.2 mm.
The mating pin length is 6.7 mm.
This pin header is unshrouded, allowing for versatile connections.
This pin header is suitable for applications in automotive controls, industrial automation, test equipment, computing systems, telecommunications, and medical devices.
The contacts are made of brass and are gold-plated for improved conductivity.
